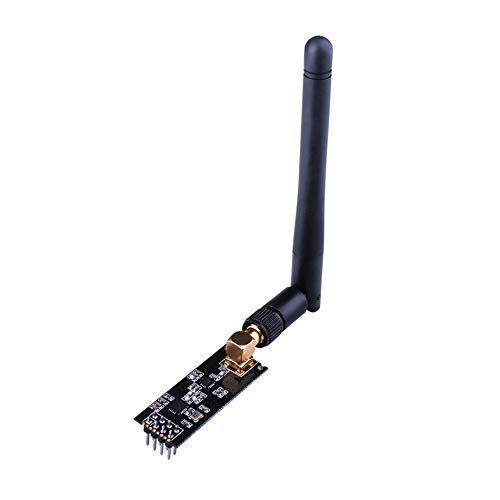

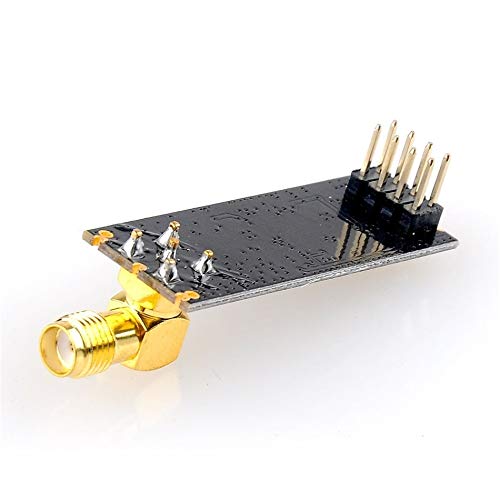

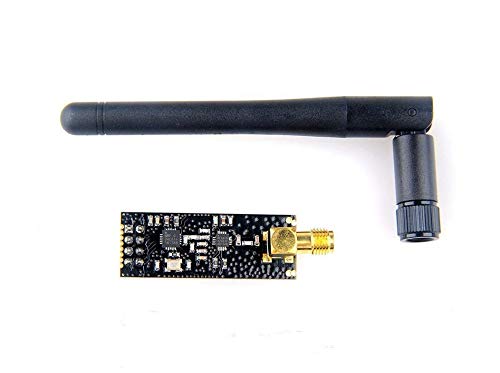

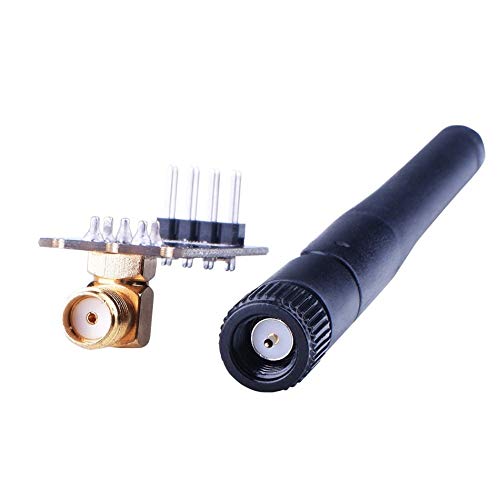

CentIoT® -NRF24L01+PA+LNA 2.4G - 1100m Long Range Wireless Transceiver Module - for Arduino MCU/ARM/PIC/AVR/STM32 with SMA Antenna

Brand: CentIoT

Features:

• NRF24L01+PA+LNA digital chip transmission, with professional design full-featured dual RF amplifier, high-power PA (Power Amp) and LNA (Low Noise Amp) chip, RF switch, bandpass filter, etc., to effectively extend the communication distance.

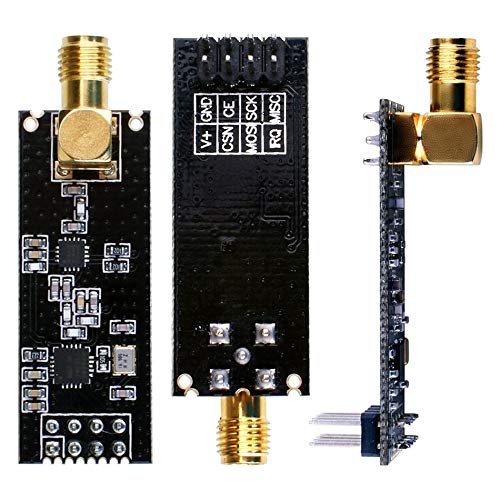

• Using instruction: VCC on the module is connected with power source, GND connected to ground, CE, CSN, SCK, MISO, MOSI and IRQ six input terminals connect with I/O ports sequentially
• Operating voltage: 3 ~ 3.6V Max; Use NRF24L01 Adapter if your power source is 5V
• Range: 1100+ meters line of sight; Frequence: 2.4GHz~2.5GHz ISM band; Max Current: 115mA; Multi-frequency: 125 frequency
• Applied with two layer PCB board production process, premium, and high quality

PartNumber: AR082-NRF24L01+PA+LNA

Details: If you want to set up your wireless communication system , this wireless Transceiver module is the most suitable module to choose! It can achieve a good balance between wireless transition performance , You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system. What's more, this NRF24L01+ module is designed with Power amplifier and SMA antenna This allowed you to use the wireless communication up to 1100+ meters! (No barrier) A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps). The on chip voltage regulator accepts supply voltages from 1.9 to 3.6V. The module has 5V tolerant inputs which allows for direct connection of SPI pins for Arduino. Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC). The module includes an Interrupt Request (IRQ) pin which can be used to wake the host microcontroller, (ex: for Arduino), from sleep when the module receives a transmission providing great power conservation in battery devices. Package Included: 1 * NRF24L01+PA+LNA Wireless Module 1 * LKY67 22dBm SMA Antenna

EAN: 4604046158211

Model: AR082-NRF24L01+PA+LNA

Binding: Electronics

Item Condition: New
