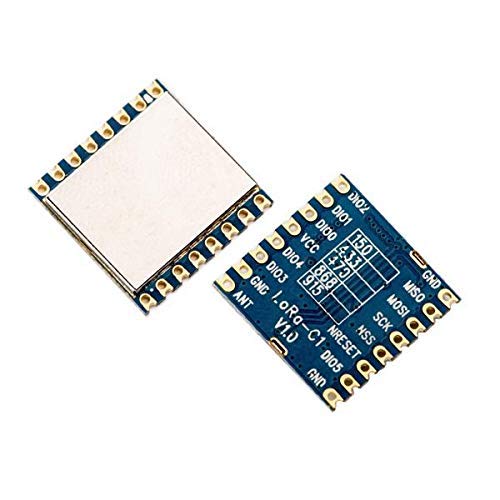

CentIoT - LORA1276-C1 sx1276 lora module - 100mW long range wireless transceiver module RF module - FCC CE Certified - 433 868 915 Mhz - Customizable frequency 137-1020MHz

Brand: CentIoT

Features:

• Frequency Range: 868 / 915 MHz(Customizable:137~1020MHz ); Sensitivity up to -139dBm @Lora; Maximum output power: 20 dBm; 13mA@receiver mode;
• Sleep current <200 nA; Data transfer rate: @FSK,1.2-300 Kbps; @Lora TM, 0.018-37.5 Kbps; Lora TM, FSK, GFSK & OOK Modulation mode; Built-in ESD Protection;
• 127 dB Dynamic Range RSSI; Packet engine up to 256 bytes with FIFO and CRC; Hopping frequency;
• Built-in temperature sensor and low battery indicator; Excellent blocking immunity; Operating Temperature Range：-40 ~ + 85 °C;
• Please contact us for user manual and product libraries and documentation. The price listed is for one piece, its usually ordered in atleast 2 pcs.

PartNumber: RF002-LORA1276-C1

Release Date: 29-07-2019

Details: Lora1276-C1 integrates Semtech RF transceiver chip SX1276, which adopts LoRa TM Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance. This module is 100mW and ultra small size, widely used in AMR,remote industrial control file.

EAN: 4604046160771

Model: RF002-LORA1276-C1

Binding: Electronics

Item Condition: New
