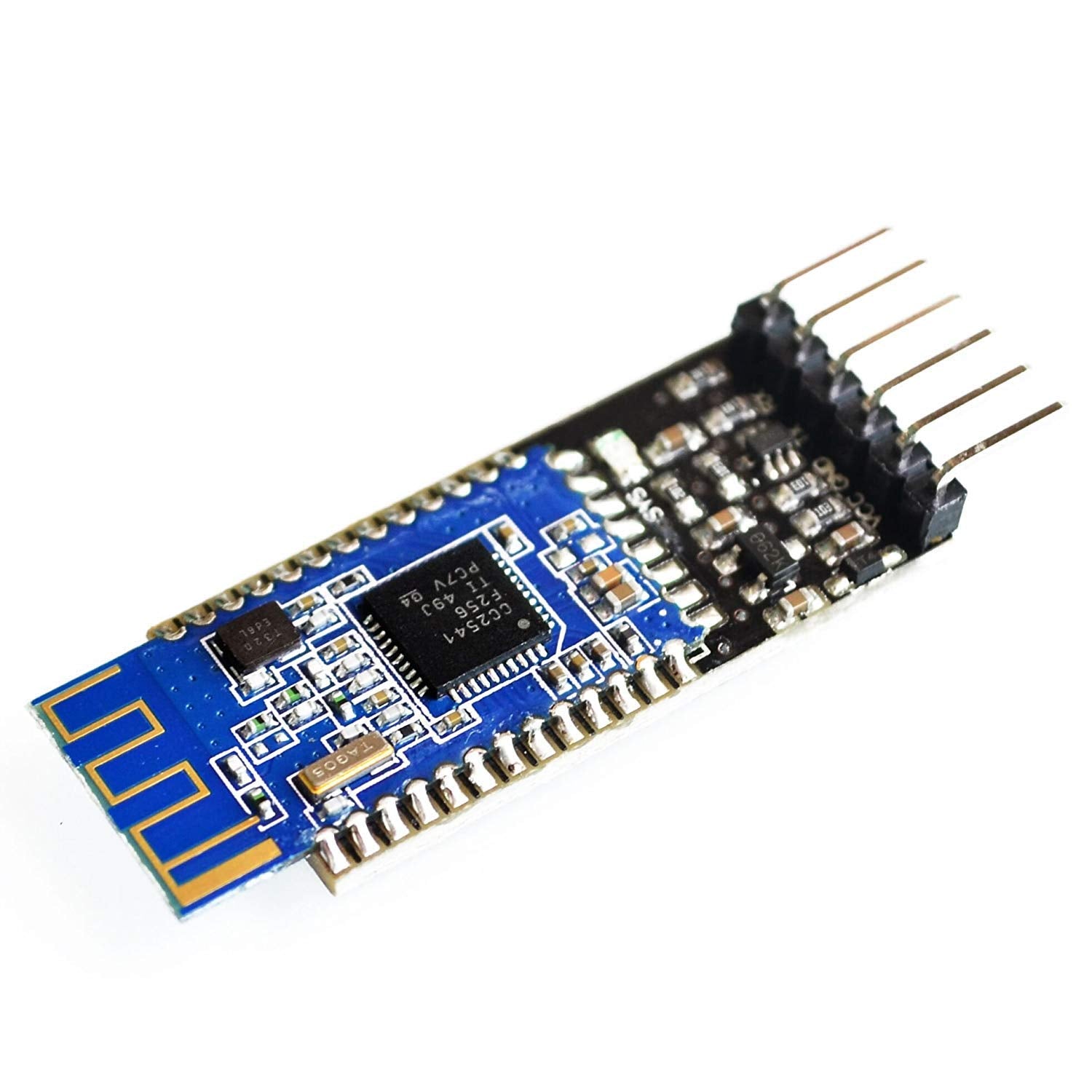

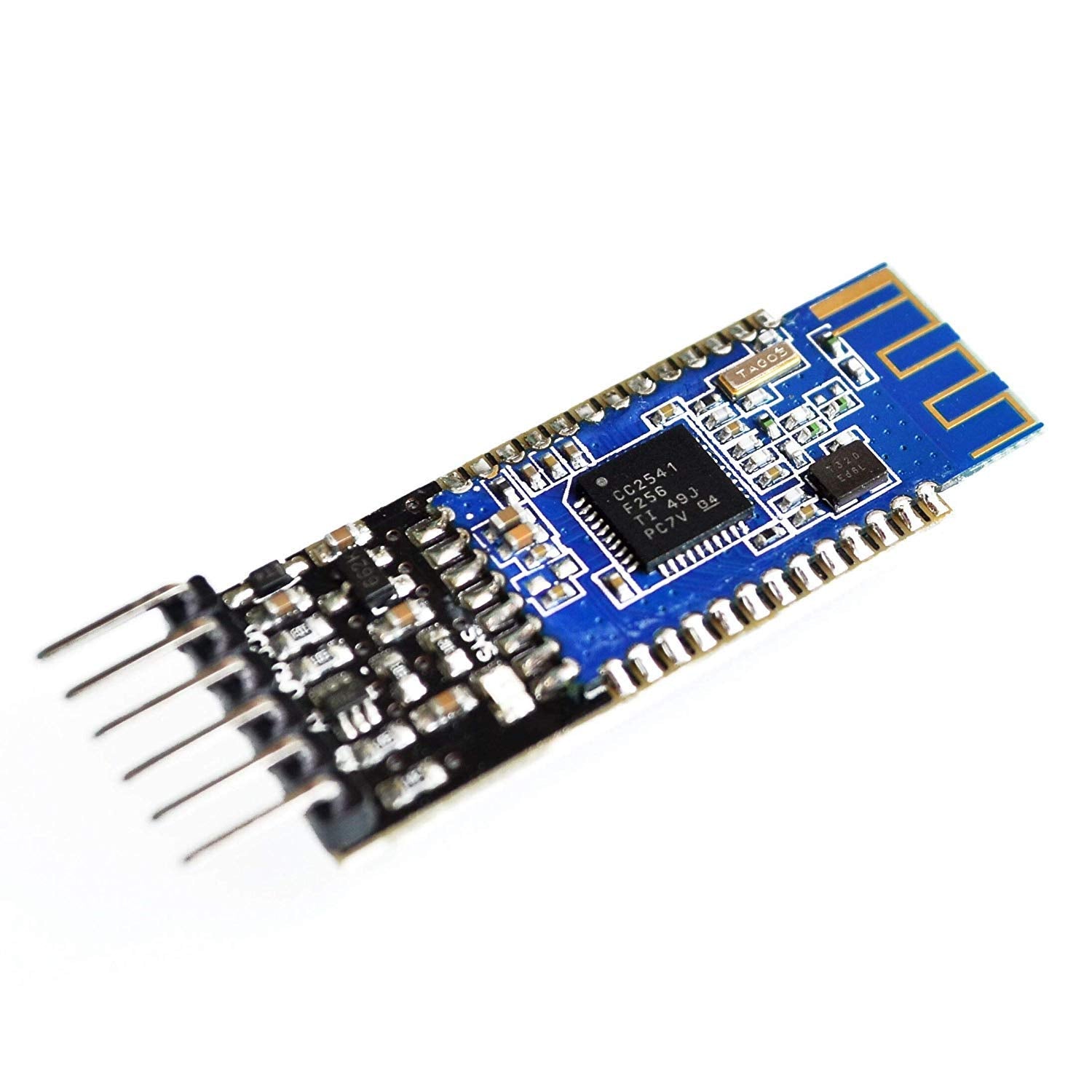

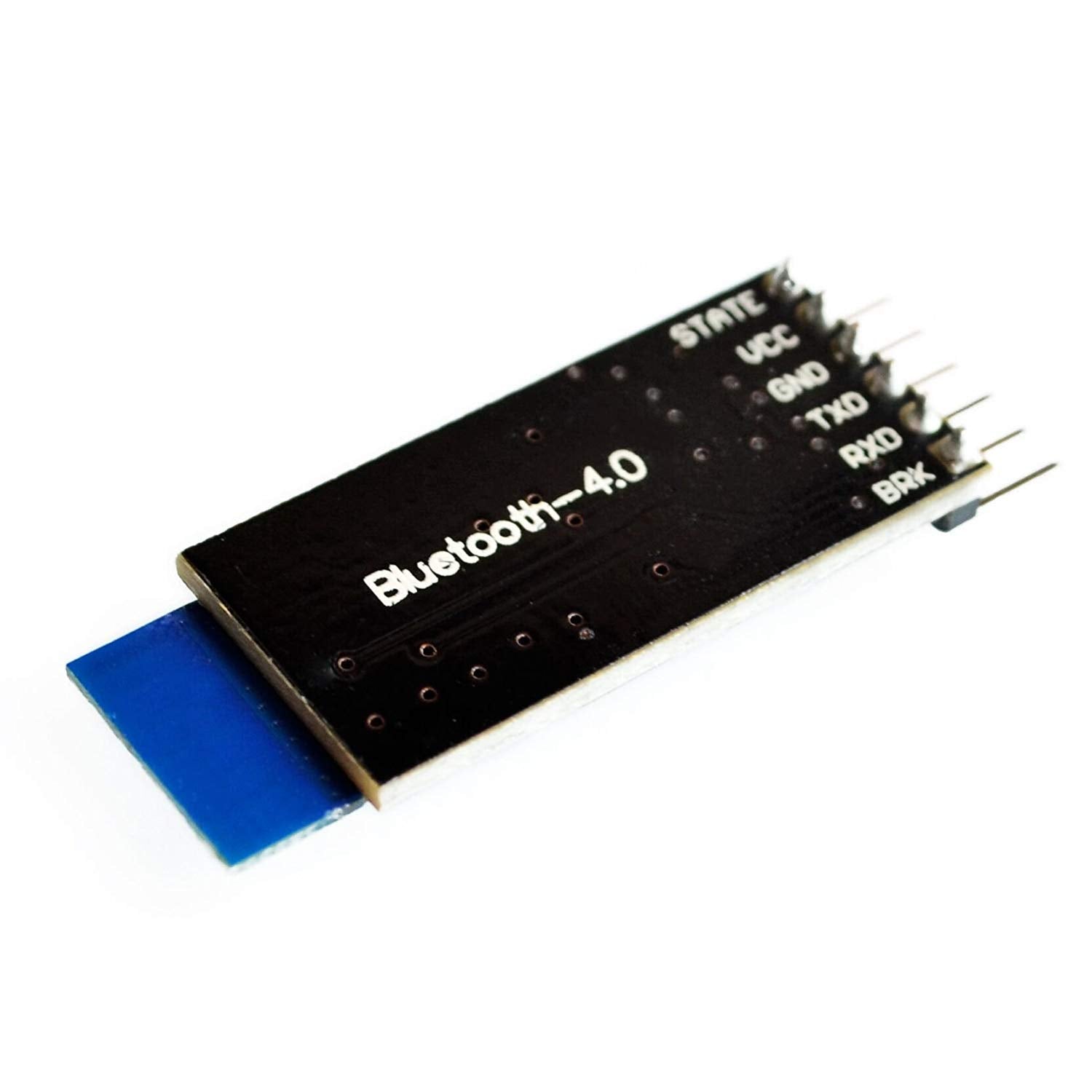

CentIoT - HM-10 BLE Bluetooth 4.0 CC2541 Serial Wireless Module with logic level converter

Brand: CentIoT

Color: mixed

Features:

• HM-10 by Huamao Technology; BT Version: V4.0 BLE bluetooth; Firmware: V540; Flash:256Kb
• USB Protocol: USB V2.0; Working frequency:2.4GHz ISM band; Modulation method: GFSK(Gaussian Frequency Shift Keying)
• RF Power:≤4dBm, Class 2; Sensitivity:≤-84dBm at 0.1% BER; Transmission Rate: Asynchronous: 6 kbps; Synchronous: 6 kbps; Security: Authentication and encryption; Support Service: Central & Peripheral UUID FFE0, FFE1
• Long range: there is 100 meters in open space with iphone4s
• The power can be adjusted -23dbm, -6dbm, 0dbm, 6dbm, through an AT Command (AT+POWER).; Power: 0.5 mA for standby, Active 8.5 mA, supports auto sleep.

PartNumber: AR053-HM10-BLE

Details: Overview: This module is a very affordable solution for Bluetooth Low Energy or Bluetooth 4.0. It connects with your MCU such as the Arduino through the UART port. It can be easily used with Android phones and Iphones, PCs, other Arduinos or any other Bluetooth device for wireless serial communication (UART). The Base board comes with anti reverse circuit to avoid accidental power plug in the module and a logic level conversion circuit. The HM-10 module uses TI CC2541 chip, configures 256KB space, and supports the AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use. Description: 1. The most complete, most convenient, and most stable Bluetooth data transmission, remote control, and data acquisition module. 2. Master-slave in one, transparent transmission, replacing serial port. 3. Remote control, Remote data acquisition, transparent transmission, MCU is unnecessary.

EAN: 4604046157245

Model: HM-10

Item Condition: New
