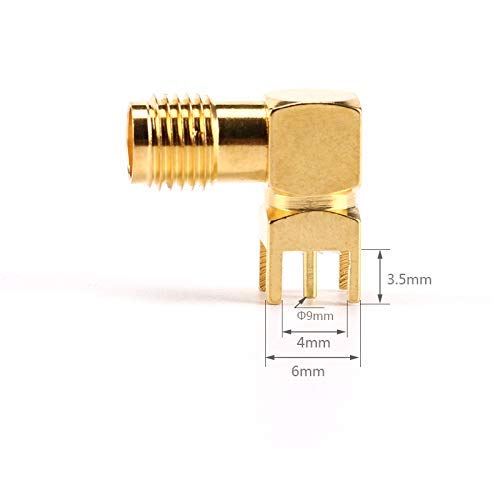

CentIoT - SMA female PCB Thru Hole mount plug Solder Square RF Connector jack - right angle 10.9mm 4.2mm

Brand: CentIoT

Color: gold

Features:

• Material: Copper; Color: as picture shown; Temperature range: -65~+165°C (PE Cable -40~+85°C); Vibration: MIL-STD-202,Method 213; Characteristic Impedance: 50Ω; Frequency range: DC~3GHz
• Working voltage: 335V maximum (valid value); Withstand Voltage: 1000V rms (minimum sea level)
• Contact Resistance; Center Contact≤ 3 mΩ; Outer Contact≤ 2 mΩ; Insulation Resistance≥ 5000MΩ; Insertion Loss≤0.15 dB/6GHz
• Voltage standing- ratio: VSWR; Straight: flexible cable≤1.10+0.002f; Semi-rigig cable≤1.05+0.001f; Bend: Flexible bent cable≤1.20+0.003f;Semi-rigig cable≤1.10+0.001f;Durability≥500 times（cycles）
• Material & Plating: shell: brass gold plated; Contact pin: brass, gold plated; Socket: beryllium, gold plated; Elastic contact: beryllium, gold plated; Insulator: PTFE; Crimp ferrule: copper alloy, nickel or gold plated; O-ring sealing: 6146 silastic

PartNumber: RF028-SMA-F-ANGLE-PCB

Release Date: 03-01-2020

Details: 1. RF coaxial connector, made of premium materials 2. Bend type Coaxial Connector. Impedance 50 ohms 3. It has the characteristics of wide frequency band, excellent performance, high reliability and long life 4. The housing and contact pin are brass plated with hard gold 5. Suitable for connecting RF cable or microstrip line in RF loop of microwave equipment and digital communication system

UPC: 679043314704

EAN: 0679043314704

Model: RF028-SMA-F-ANGLE-PCB

Binding: Electronics

Item Condition: New
