Description
Brand: CentIoT
Features:
- Onboard chip: nRF51822
- Communication distance (open outdoor@1M data rate): 30m
- Frequency range: 2.4GHz
- Operating voltage: 2.0V ~ 3.6V
- ARM Cortex-M0 32 bit processor, 128 bit AES HW encryption, 256kB flash & 32kB RAM,
PartNumber: BL012-NRF51822-MOD

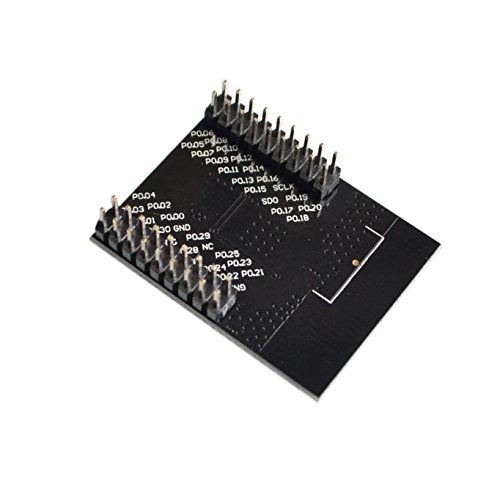

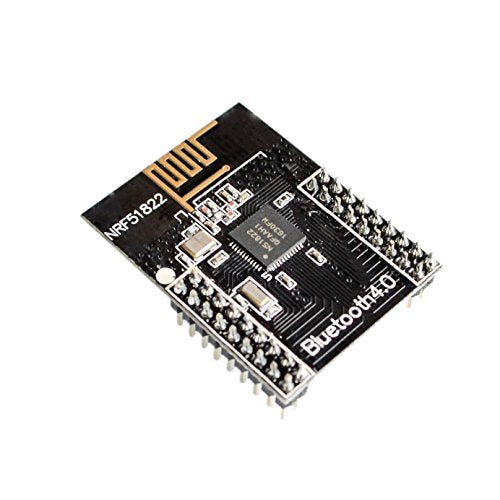

Details: Core51822 is a wireless module based on nRF51822 - the Multiprotocol Bluetooth 4.0 low energy/2.4 GHz RF SoC designed for ULP (ultra low power) wirelesss applications. Core51822 Specifications Onboard chip: nRF51822 Communication distance (open outdoor@1M data rate): 30m Frequency range: 2.4GHz Operating voltage: 2.0V ~ 3.6V Operating temperature: -40℃ ~ 85℃ Dimension (PCB): 24.5mm x 32.26mm Expansion pinheader: all the I/Os except P0.26 and P0.27 Pinheader pitch: 2.00mm Spacing between pinheaders on the left side and the right side: 18.00mm Antenna: onboard antenna nRF51822 Features 2.4 GHz multiprotocol RF transceiver ARM Cortex-M0 32 bit processor 128 bit AES HW encryption 256kB flash & 32kB RAM Programmable Peripheral Interconnect (PPI) Digital interfaces: SPI, I2C, UART 10 bit ADC Programmable output power: -20 to +4 dBm Independent application development and protocol stack Fully compatible with NRF24L series Pinout compatible with NRF51xxx series Global separate power management Operating voltage: 1.8 V ~ 3.6 V
UPC: 618020770010
EAN: 0618020770010
Model: ACK-NRF51822-CORE-MODULE
Item Condition: New
