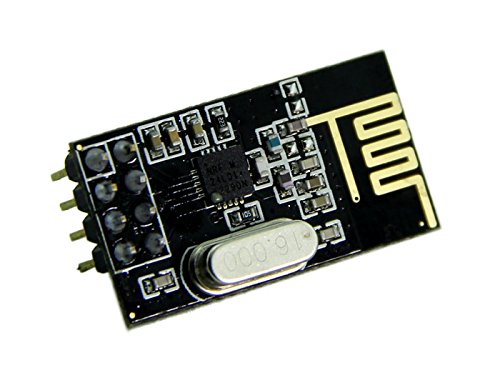

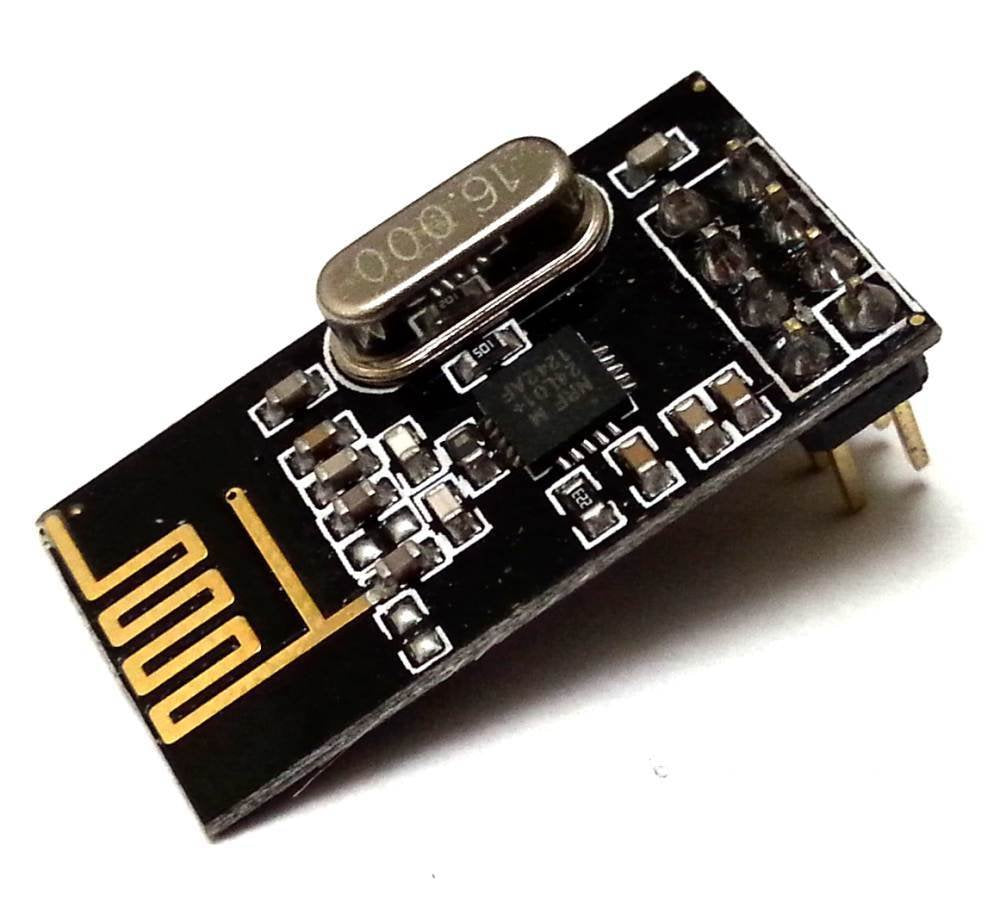

- CentIoT - NRF24L01+ 2.4GHZ Wireless Transceiver Module
Product Categories
- Development Boards(0)
- Audio and Video(23)
- Accessories Tools Cases (0)
- Connectors and Cables(0)
- Thermal Management(57)
- All Categories ()
- Motors And Drivers(15)
-
Wireless Communications(36)
- Top Brands
- (G)FSK Front-End Modules
- 2.4G Front-End Modules
- ASK Modules
- LoRa & LoRaWAN Modules
- LoRaWAN Gateway & Node
- BLE & GPS & 125kHz Wakeup Modules
- RF antennas
- 3D Pedometer Modules & Chips
- Transparent Wireless UART Modules
- Walkie Talkie & Wireless audio
- Wireless IO & 4-20mA Modules
- SENSOR MONITORING GATEWAY AND NODE
- Power Supply and Converters(21)
- Test, Measure and Inspect(0)
Featured product
Description
Brand: CentIoT
Features:
- Model: nRF24L01+
- Data Rate: 250kbps, 1Mbps and 2Mbps on air data rates, Ultra Low Power Operation, 11.3mA TX at 0dBm Output Power
- 13.5mA RX at 2Mbps air data rate
- Supply Range: 1.9 to 3.6V
- +/- 60ppm 16MHz crystal, 5V tolerant inputs
PartNumber: AR045-NRF24L01
Release Date: 20-05-2019
Details: The nRF24L01+ is a single chip 2.4GHz transceiver with an embedded baseband protocol engine (Enhanced ShockBurstTM), suitable for ultra low power wireless applications. The nRF24L01+ is designed for operation in the world wide ISM frequency band at 2.400 - 2.4835GHz. You can operate and configure the nRF24L01+ through a Serial Peripheral Interface (SPI). The register map, which is accessible through the SPI, contains all configuration registers in the nRF24L01+ and is accessible in all operation modes of the chip. The radio front end uses GFSK modulation. It has user configurable parameters like frequency channel, output power and air data rate. nRF24L01+ supports an air data rate of 250 kbps, 1 Mbps and 2Mbps. The high air data rate combined with two power saving modes make the nRF24L01+ very suitable for ultra low power designs.nRF24L01+ is drop-in compatible with nRF24L01 and on-air compatible with nRF2401A, nRF2402, nRF24E1 and nRF24E2. Intermodulation and wideband blocking values in nRF24L01+ are much improved in comparison to the nRF24L01 and the addition of internal filtering to nRF24L01+ has improved the margins for meeting RF regulatory standards. Internal voltage regulators ensure a high Power Supply Rejection Ratio (PSRR) and a wide power supply range.
EAN: 4604046158204
Model: AR045-NRF24L01
Binding: Electronics
Item Condition: New
