CentIoT - Single Beam 15 m Photoelectric Active Infrared Intrude Detector IR Sensor Tamper Alarm Outdoor Automatic Door Gate Window Barrier

Brand: CentIoT

Features:

• Industry Grade Passed CE,FCC,ROHS,IP55 certification
• Detector Range: indoor 20m. Outdoor 10m, Detection mode Presence(beam interruption)
• Working Voltage: 12V, 24V
• Working Current : 50MA

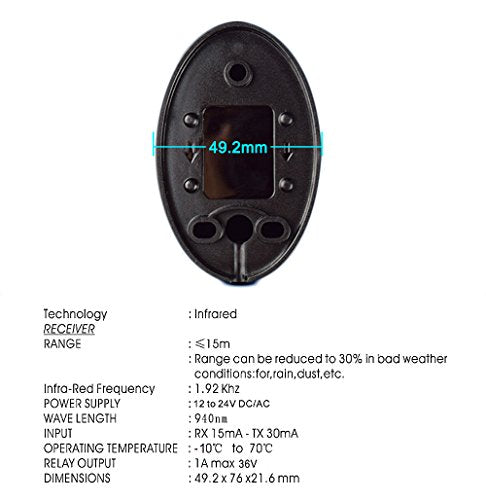

• Size : 49.2 x 76 x 21.6MM, Water Proof, UV proof, Response time(Relay output) <10 ms, Hold time(Relay output) 300ms

PartNumber: SE179-IR-SINGLE-BEAM

Details: The photo cell is a surface mount active infrared safety beam for sliding gate opener. When the infrared beam is interrupted, the PW-01 relay output signals an industrial door or gate control to open, stop or reverse. On pedestrian swing doors, the PW-01 is mounted on the guide rails. When the door is closing and the overhead safety sensor is locked out, interrupting the PW-01 beam will bring this sensor protecting the swing side of the door back into the safety circuit thus inhibiting the door from reopening. 1. Passed CE,FCC,ROHS,IP55 certification 2. With rain proof design 3. Unique digital filter circuit design,strong anti false alarm ability 4. With high levels of anti-RFI/EMI capability 5. Fully sealed design,rain-proof(fog),dust-proof(worm),suitable for hostile environment 6. The product is suitable for access control system,home intruder alarm system. Installation place:door,window,passage,barriers and so on. 7. Adopted 12-24V wide voltage design,can be used with kinds of alarm panel and access control system.

EAN: 4604046154404

Model: SE179-IR-SINGLE-BEAM

Item Condition: New
