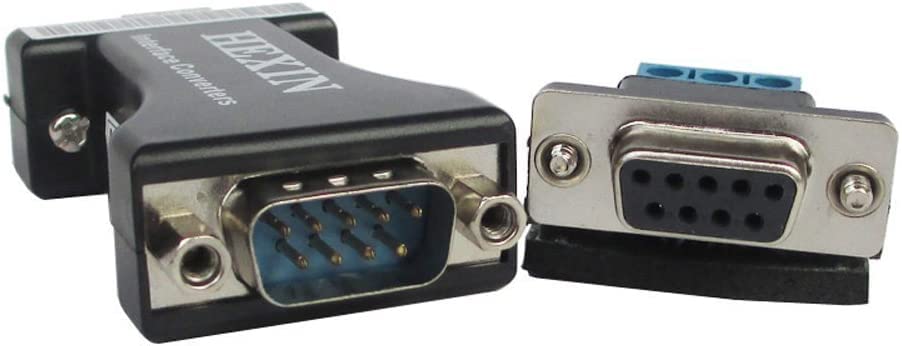

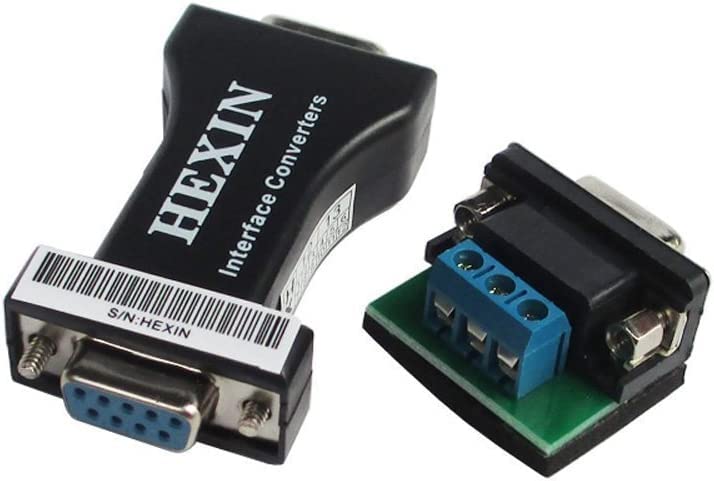

CentIoT - HEXIN RS232 to RS485 serial port Data Interface Adapter Converter 1.2KM 3 Bit - HXSP-485D

Brand: CentIoT

Color: Transparent

Features:

• Bi-directional connector convert between RS-232 and RS-485
• Port-Powered, no need extra power supply
• Support 0~115200bps baud rate
• RS-232: DB9 interface RS-485: Industrial terminal block
• 1 port RS-232 DB9, 1 port RS-485(DB9 with block)

PartNumber: HXSP-485D

Details: RS-232 signal: TXD, RXD, GND RS-485 signal: 485+, 485-, GND Distance: RS-232: 5m RS-485: 1200m Working mothod: asynchronous, point to point or multi-point, 2 wire half-duplex Transmission medium: Ordinary Line, twisted pair cable or Shielded Wire Communication protocol: Transparent Direction control: automatic data flow control technology which can detect and control data transmission direction automatically Power: No power supply, Obtain power from TXD, RTS, DTR signals of RS-232 serial port Environment: Operating temperature: -20~70℃ Storage temperature: -25~85℃ Relative humidity: 5%～95%(no condensation) Shell: plastic

Model: HXSP-485D

Item Condition: New
