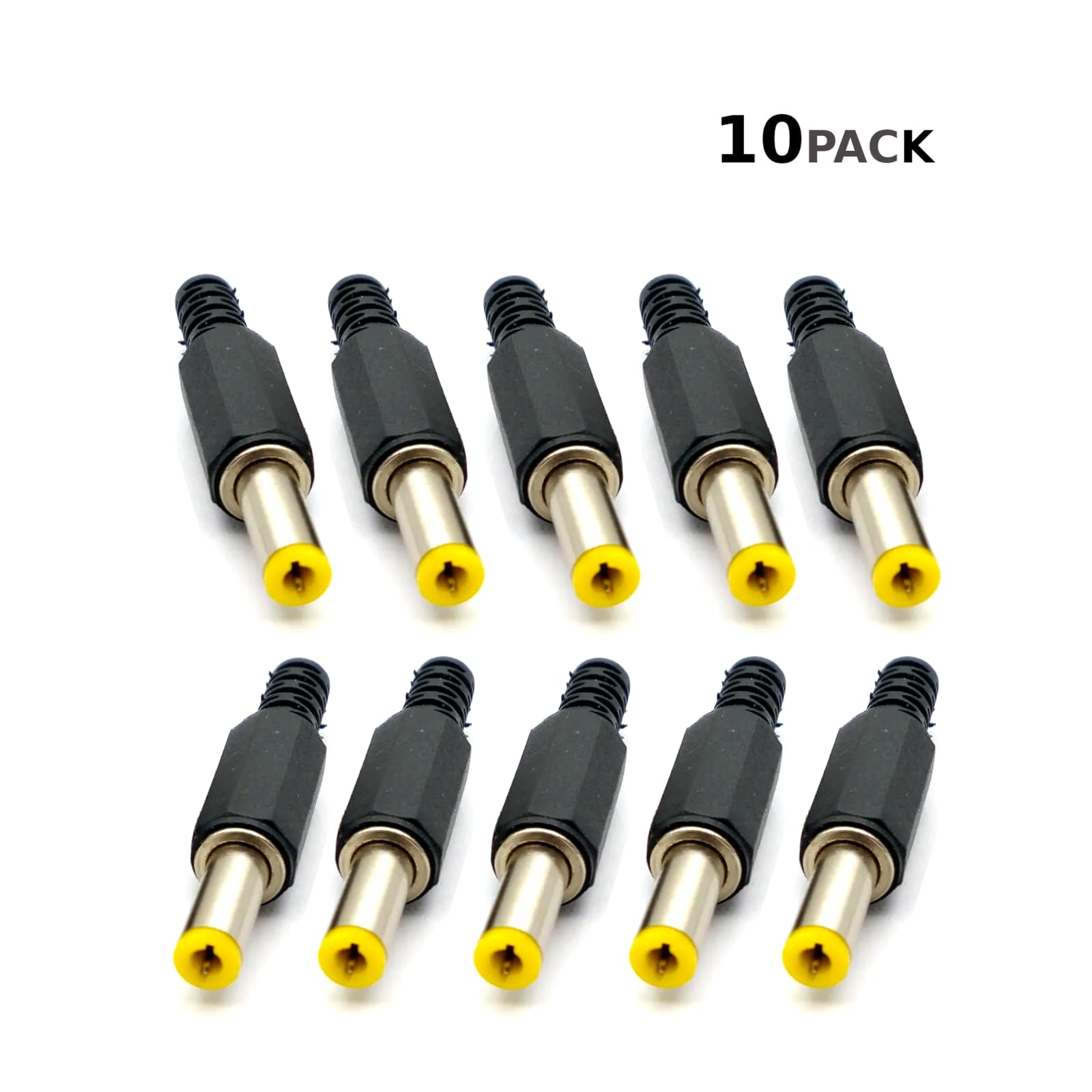

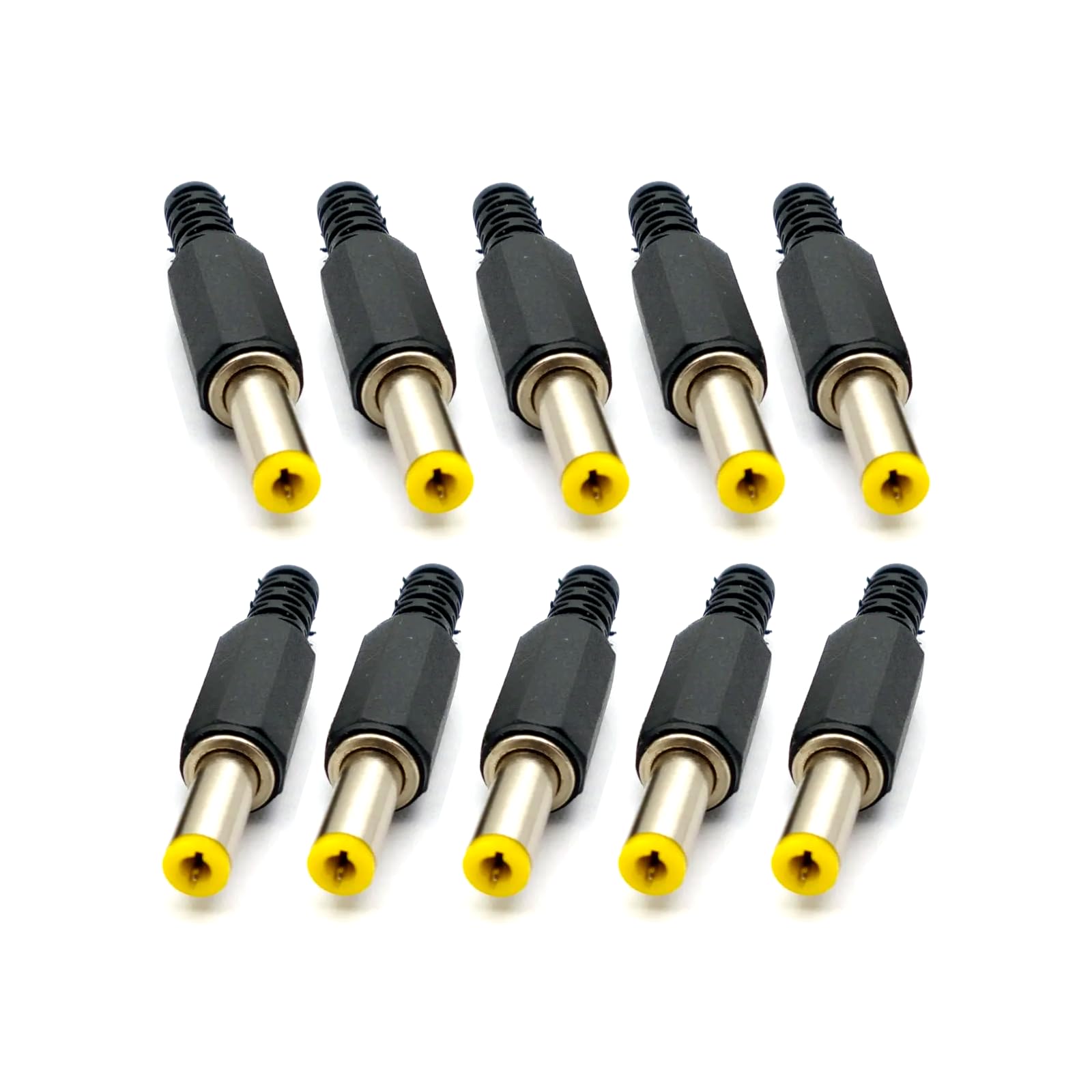

CentIoT - DC Power Plug Female - 5.5 x 2.1 Cable Mount with plastic case (Turning Fork 14mm long pin - Pack of 10)

Brand: CentIoT

Features:

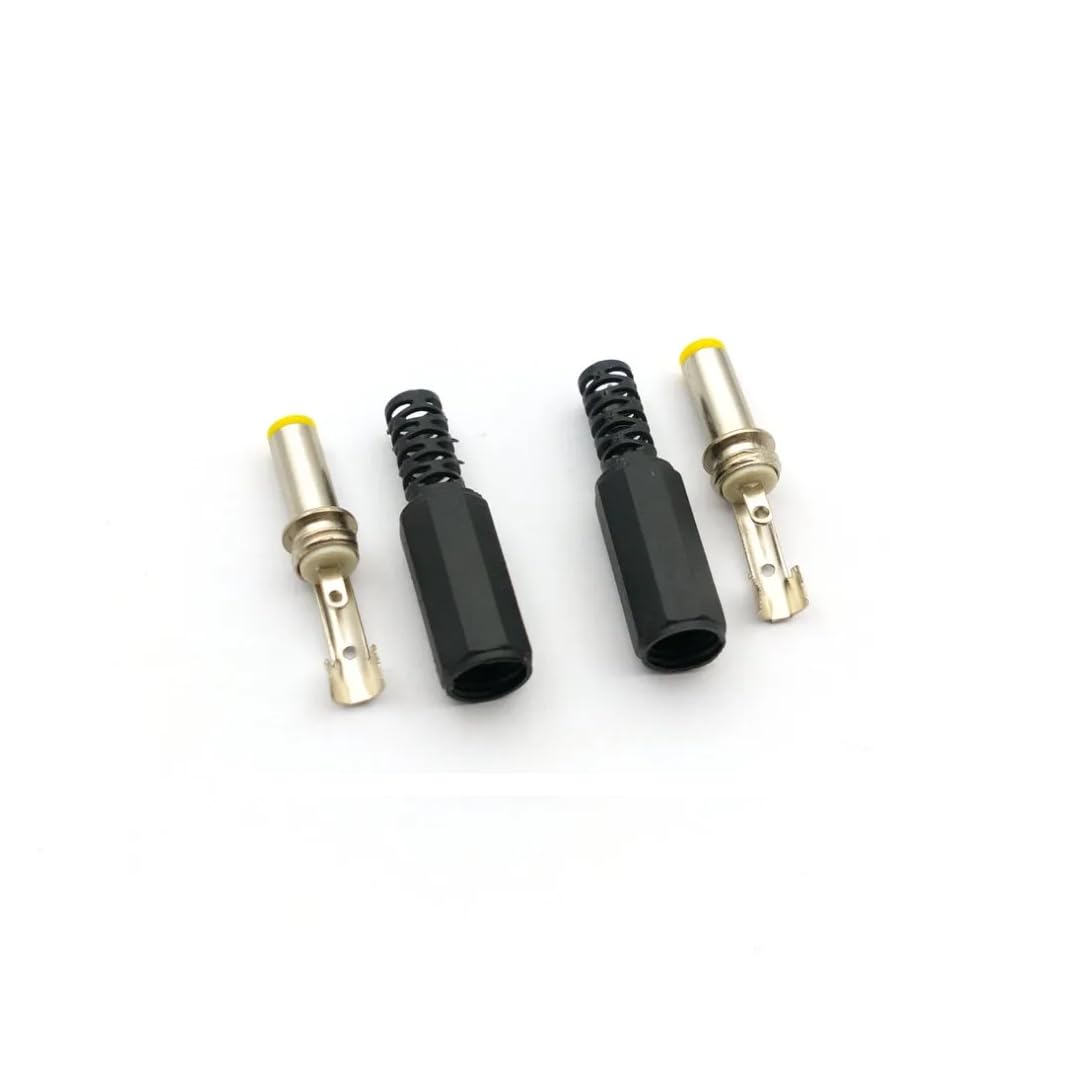

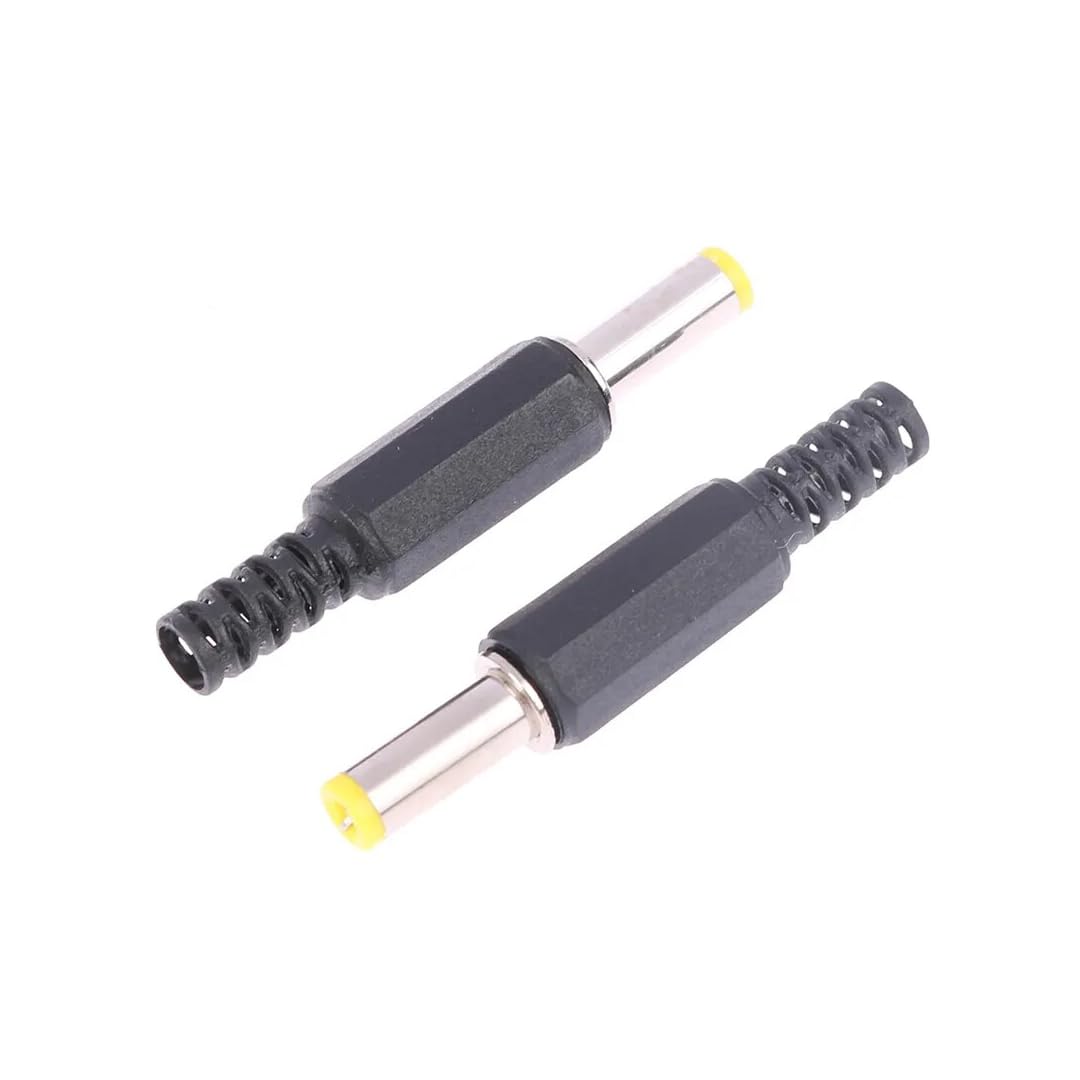

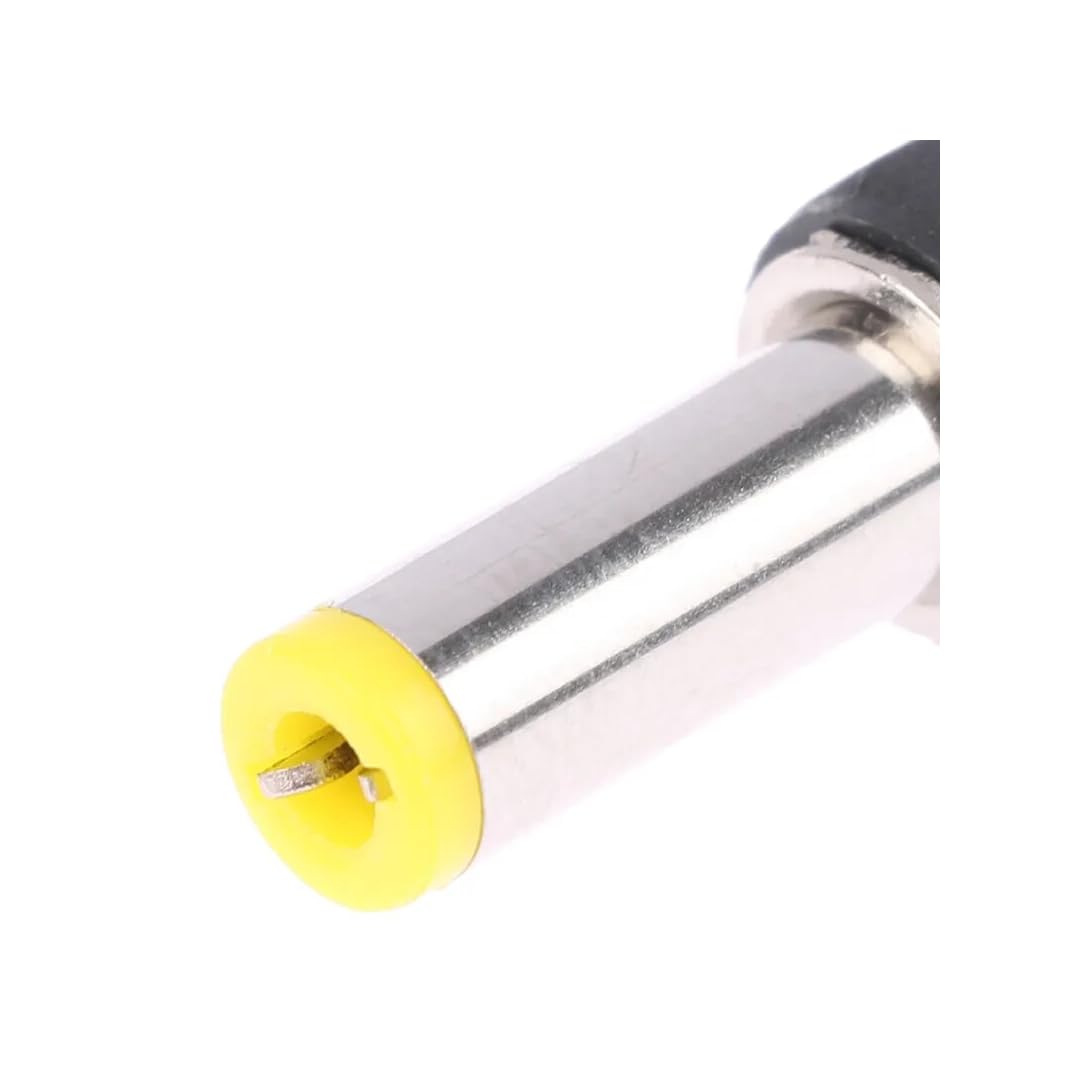

• 5.5*2.1mm Black DC Power Plug Female Connector with plastic case - Soldering type - Tuning fork plug tip
• Materials: Tube & Pin both brass alloy; Plastic is PBT (Black); Plating: Nickel Plated
• Rating: 1Amps to 5Amps; Contact Rating: 5A@5V; 3A@12VDC; 0.5A@30VDC
• Salt Spray Test Time: 12 hours to 72 hours; WITHSTAND VOLTAGE:AC 500V(50HZ)min;

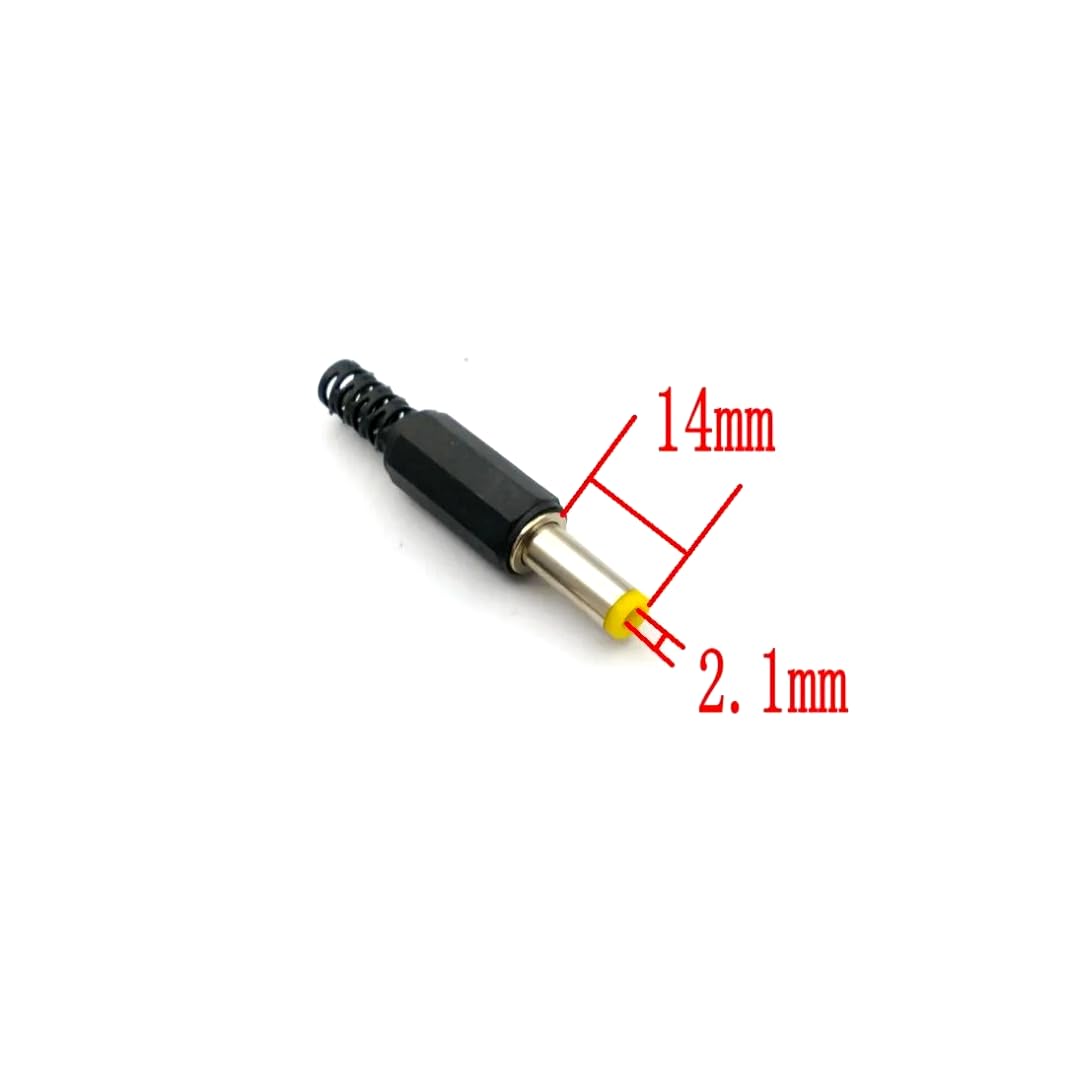

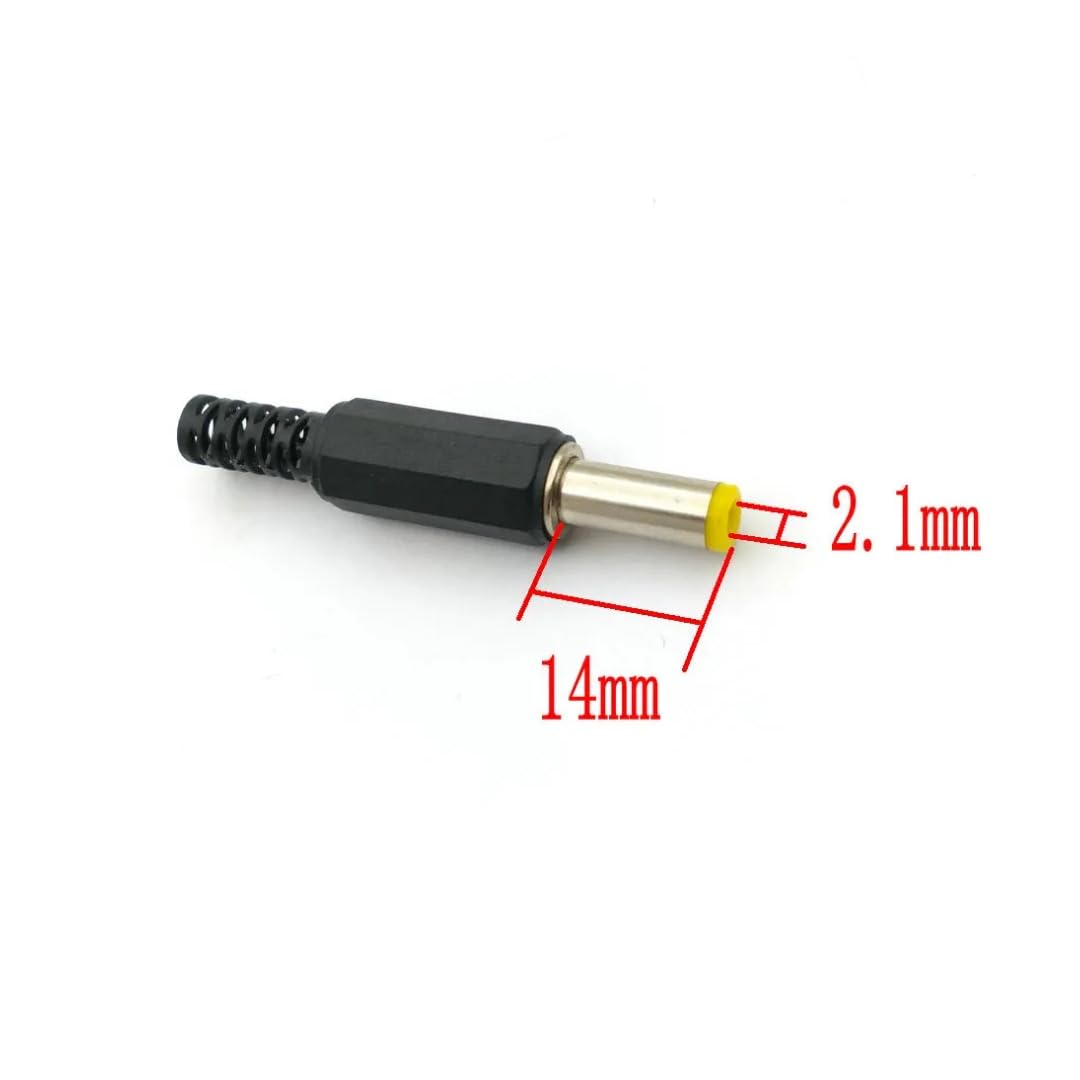

• Overall Length: 48.5mm; Outer Diameter:5.5mm; Pin Diameter:2.1mm; plastic case length: 35mm
• INSERTION FORCE: 3-20N; LIFE: 5000 TIMES; CONTACT RESISTANCE: ≤ 0.03Ω; INSULATION RESISTANCE: ≥100MΩ

PartNumber: DC161-5521-FP-14TF

Model: DC231-5521-3A-FP-CM

Item Condition: New
