Description
Brand: CentIoT
Features:

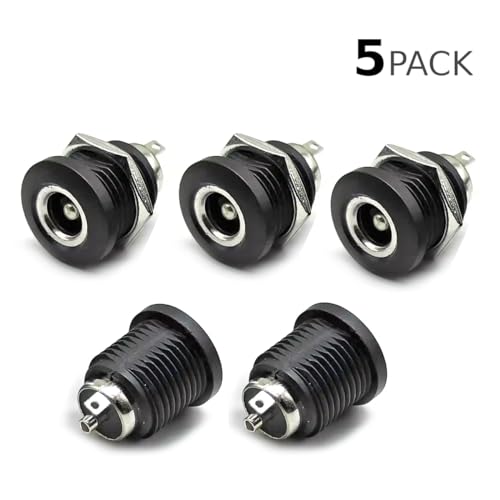

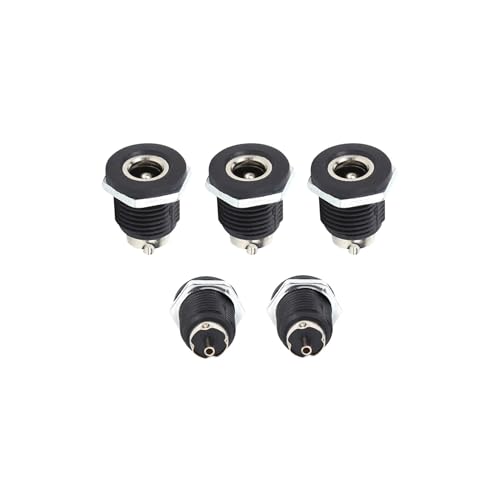

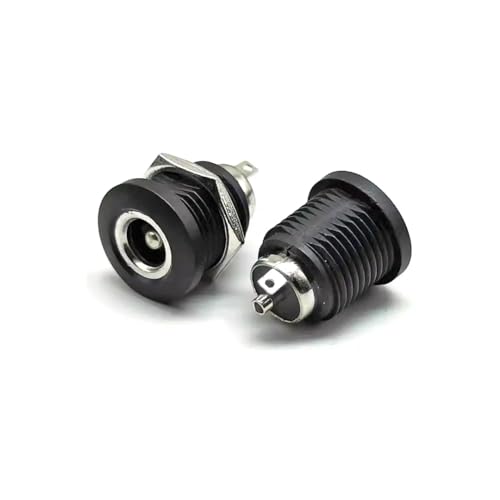

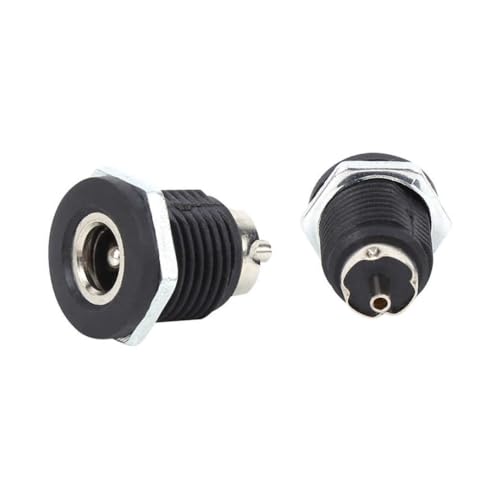

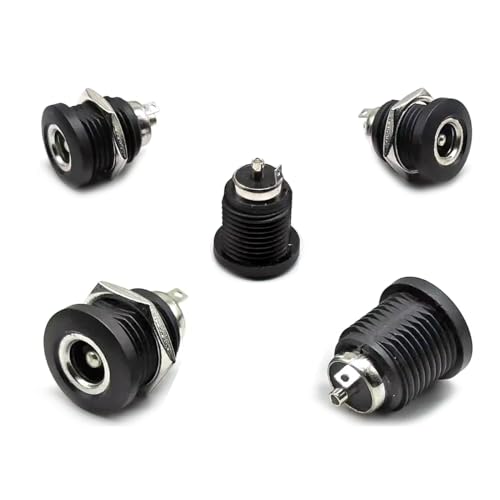

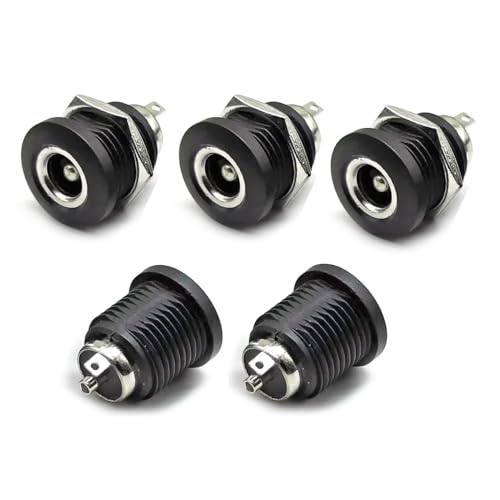

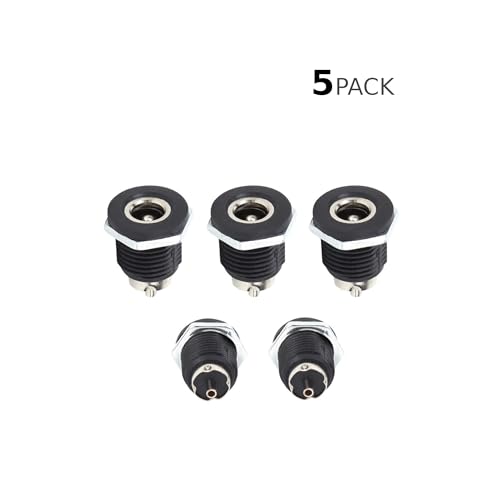

- DC Power Jakc Male Connector plastic - Soldering type Panel or screw mount
- Materials: Tube & Pin both zinc alloy; Plastic is PBT (Black); Plating: Nickel Plated
- Rating: 4A to 5A Contact Rating: 6A@5V; 5A@12VDC; 0.5A@30VDC
- Salt Spray Test Time: 12 hours to 72 hours; WITHSTAND VOLTAGE:AC 500V(50HZ)min;

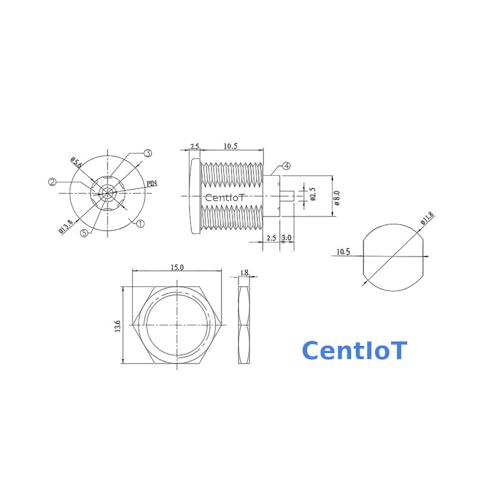

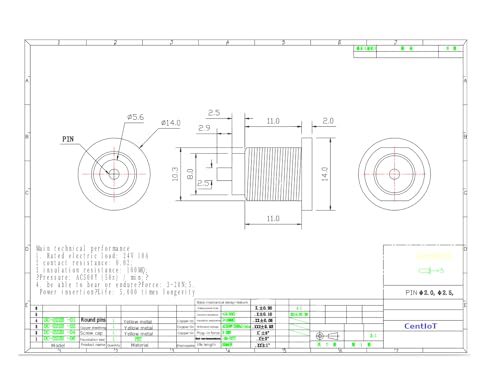

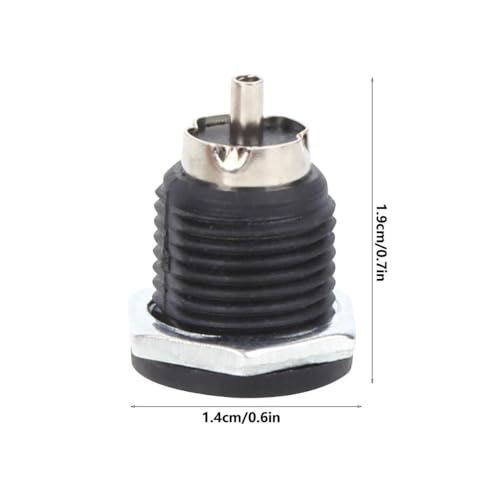

- Overall Length: 30mm; Outer Diameter:5.5mm; Pin Diameter: 2.1mm; Case length needed: 25mm
- INSERTION FORCE: 3-20N; LIFE: 5000 TIMES; CONTACT RESISTANCE: ≤ 0.03Ω; INSULATION RESISTANCE: ≥100MΩ
