CentIoT - XL6009 DC-DC 3.0-30 V to 5-35 V Step-Up Boost Module - with Adjustable Output Voltage Power Supply Module

Brand: CentIoT

Color: Blue

Features:

• Model Specification: Automatic Buck module Module Properties: Non- isolated boost (BOOST) Rectification: Non- Synchronous Rectification
• Input Current: 3A (4A max ), no-load 18mA (5V input , 8V output, no-load is less than 18mA. Higher the voltage, greater the no-load current
• Load Regulation:± 0.5% Voltage Regulation:± 0.5% Operating Temperature:-40 -+85 Dimensions:48mm * 25mm * 14mm ( L * W * H )
• Conversion efficiency:<94% ( greater the pressure, the lower the efficiency); Switching frequency: 400KHz; Output Ripple: 50mV ( the higher the voltage , the greater the current , the greater the ripple )
• If the module output voltage can not be adjusted or if the output voltage is always equal to the input voltage. Please adjust the potentiometer counterclockwise 20 laps or more to active the potentiometer

PartNumber: DC002-XL6009

Release Date: 28-10-2018

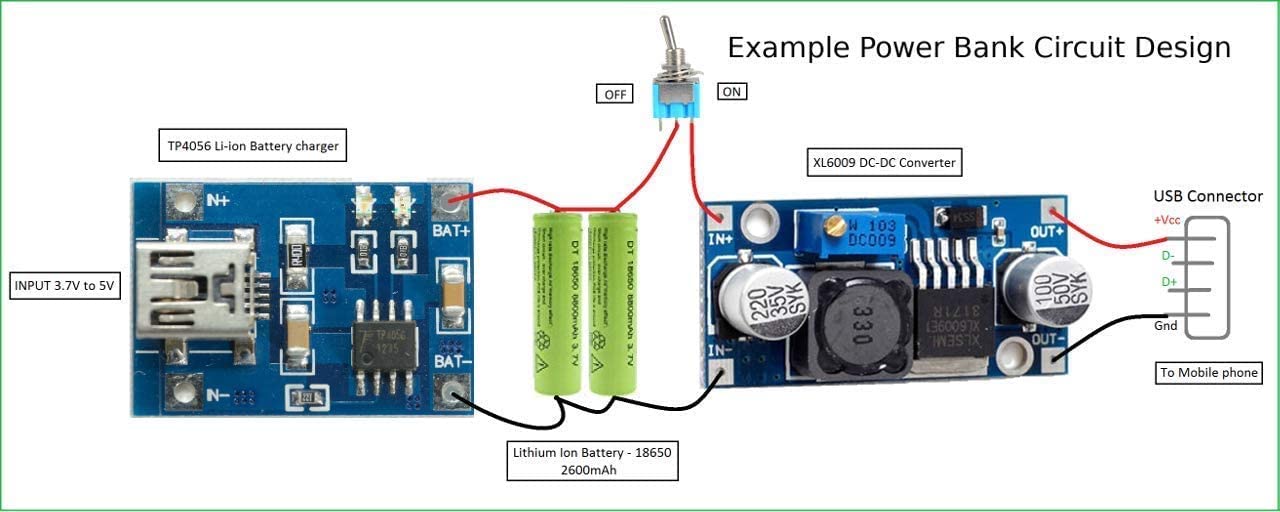

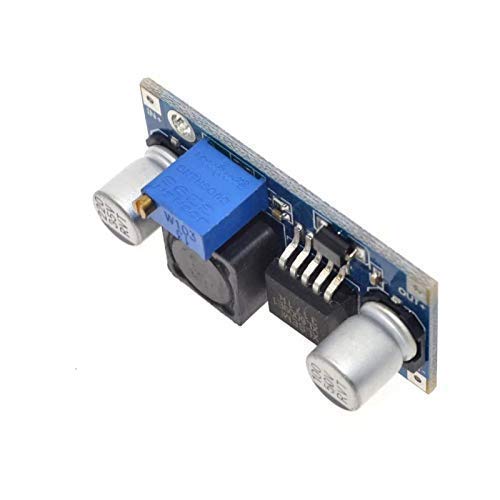

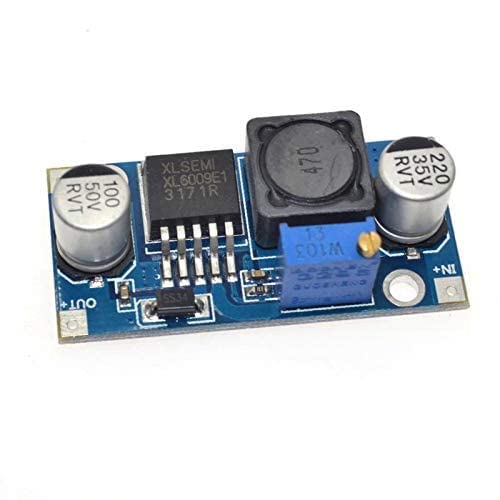

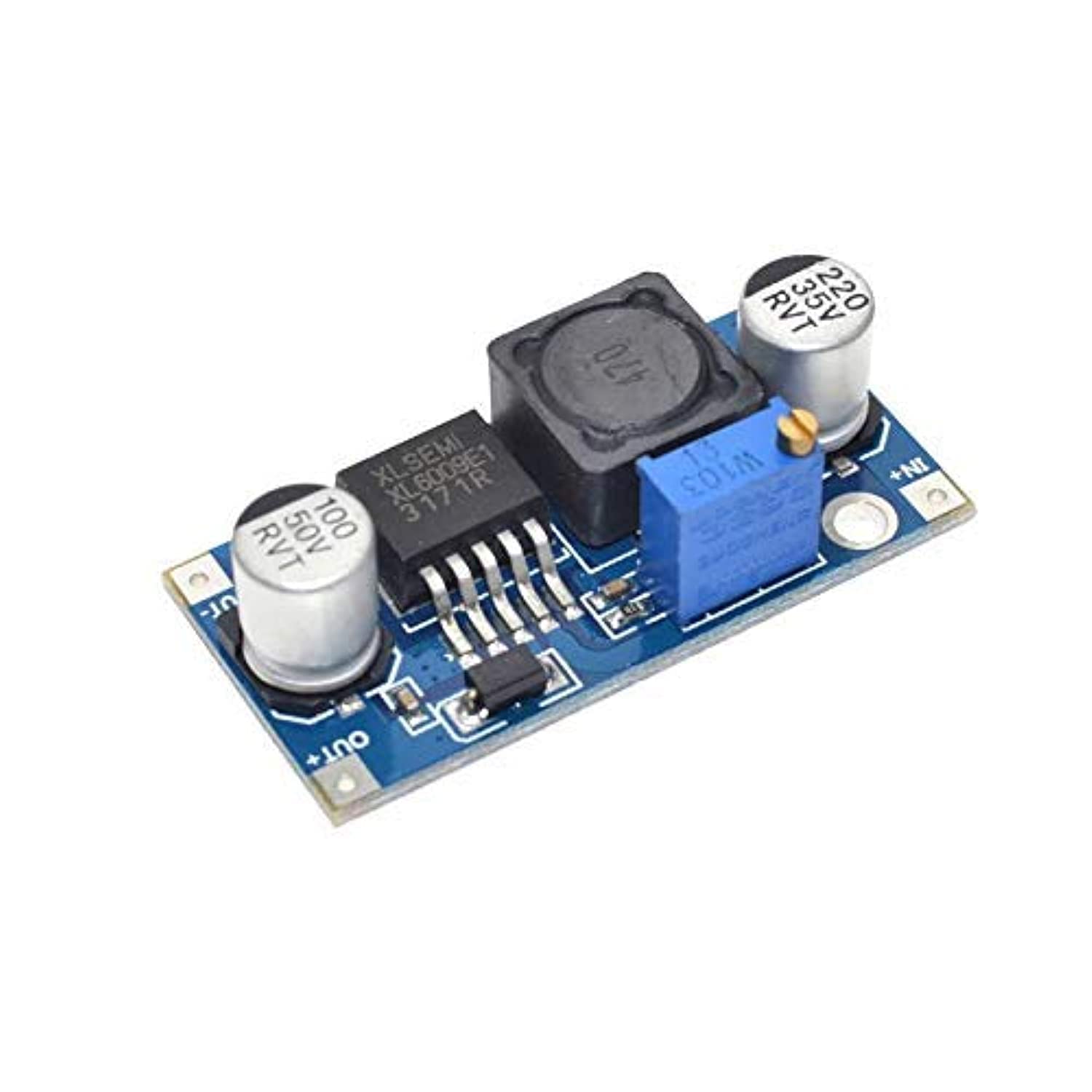

Details: This module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency. XTW6009 is a 4A switch current high-performance step-up (BOOST) module. The XL6009E1 module uses the second generation of high frequency switch technology as the core chip, performance far beyond the first generation LM2577 technology. XL6009 booster module cost is lower, performance is more outstanding. If the input or output current is more than 2A (need to plug heat sink), if the output power is higher than 15 W, advise to add the heat sink. Please do not use with out heatsink for continuous use. Note: 1. The output voltage must be higher than the input voltage. 2. IN-IN + input positive input negative, positive output OUT + OUT-output negative. 3. Test comparison sample reference, input 3V output 12V 0.4A 4.8W input 5V output 12V 0.8A 9.6W input 7.4V output 12V 1.5A 18W input 12V output 15V 2A 30W input 12V output 16V 2A 32W input 12V output 18V 1.6A 28.8W input 12V output 19V 1.5A 28.5W input 12V output 24V 1 A 24W 4. Vin x Iin x Efficiency = Vout x Iout. Connection: 1. Vin: Input voltage. 2. Iin: Input current. 3. Vout: Output voltage. 4. Iout: Output current. 5. If the module output voltage can not be adjusted or if the output voltage is always equal to the input voltage. Please adjust the potentiometer counterclockwise 20 laps or more to active the potentiometer.

EAN: 4604046155654

Model: DC002-XL6009

Binding: Electronics

Item Condition: New
