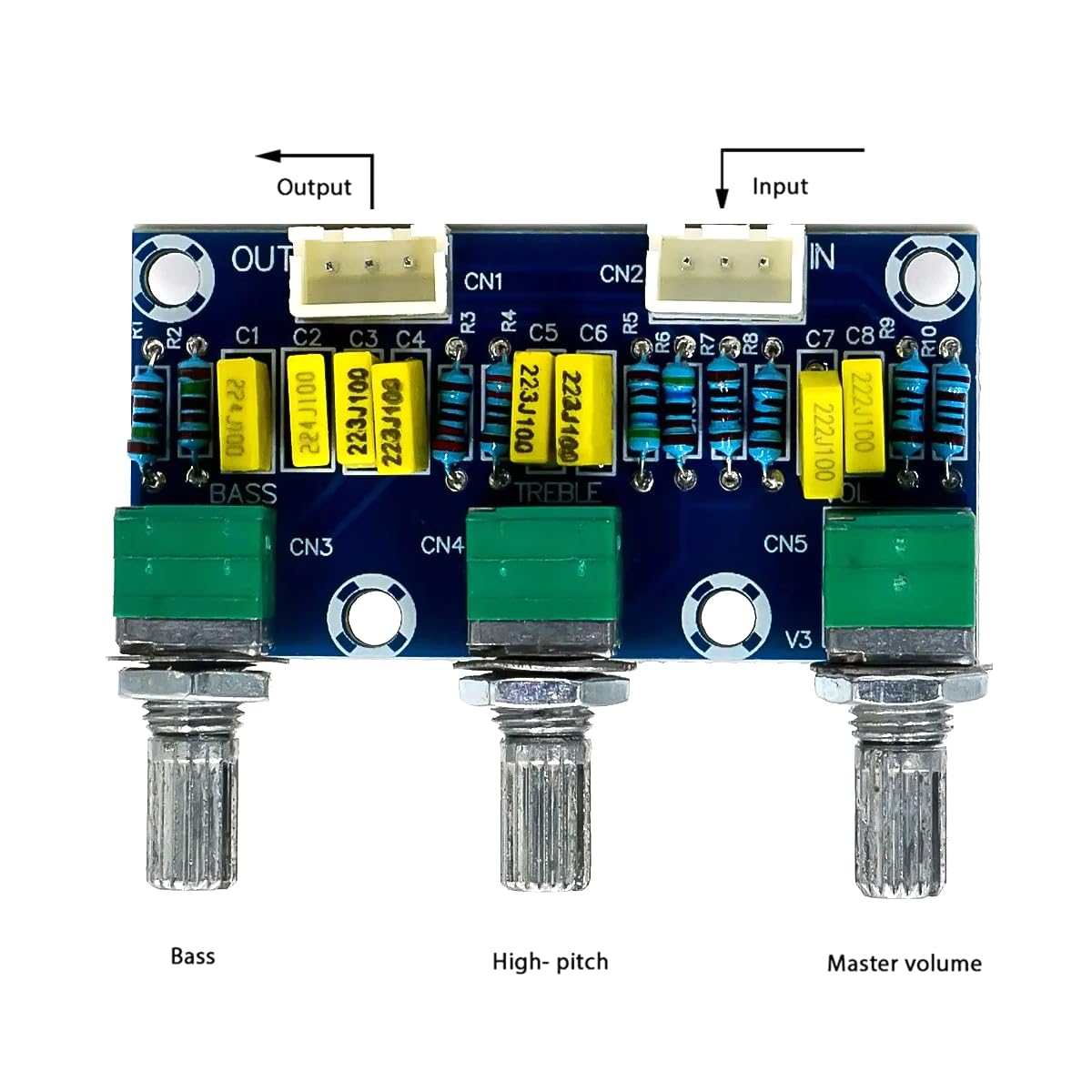

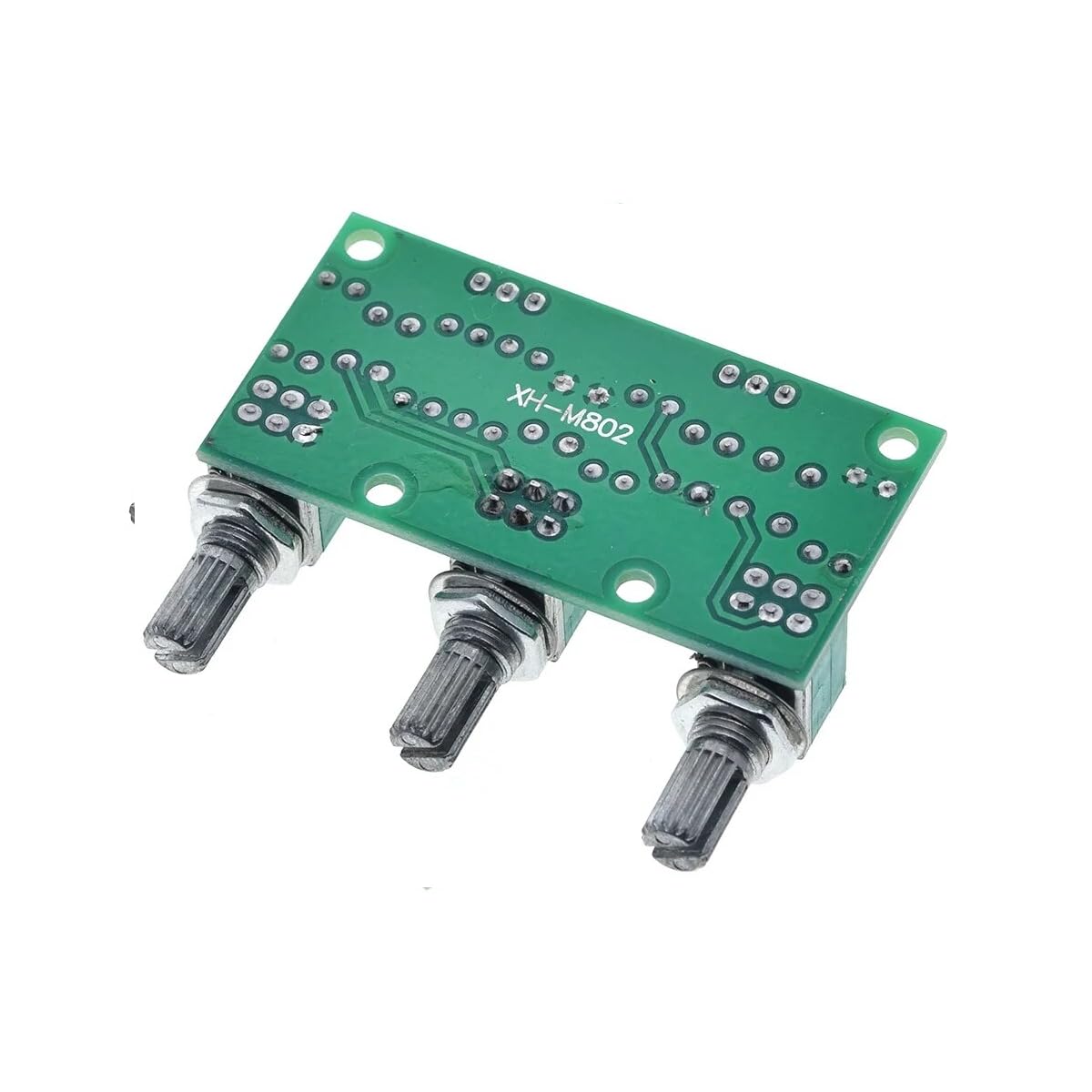

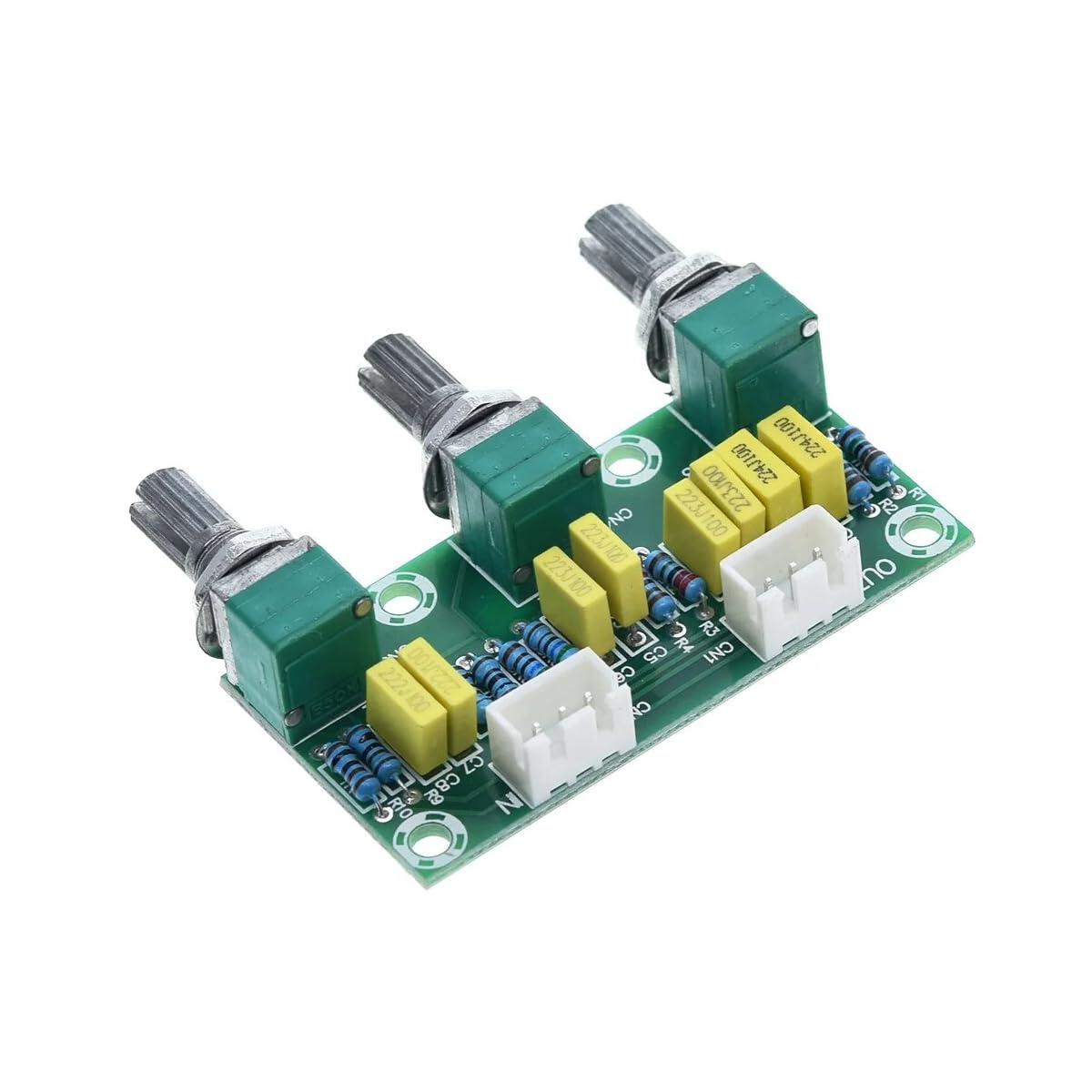

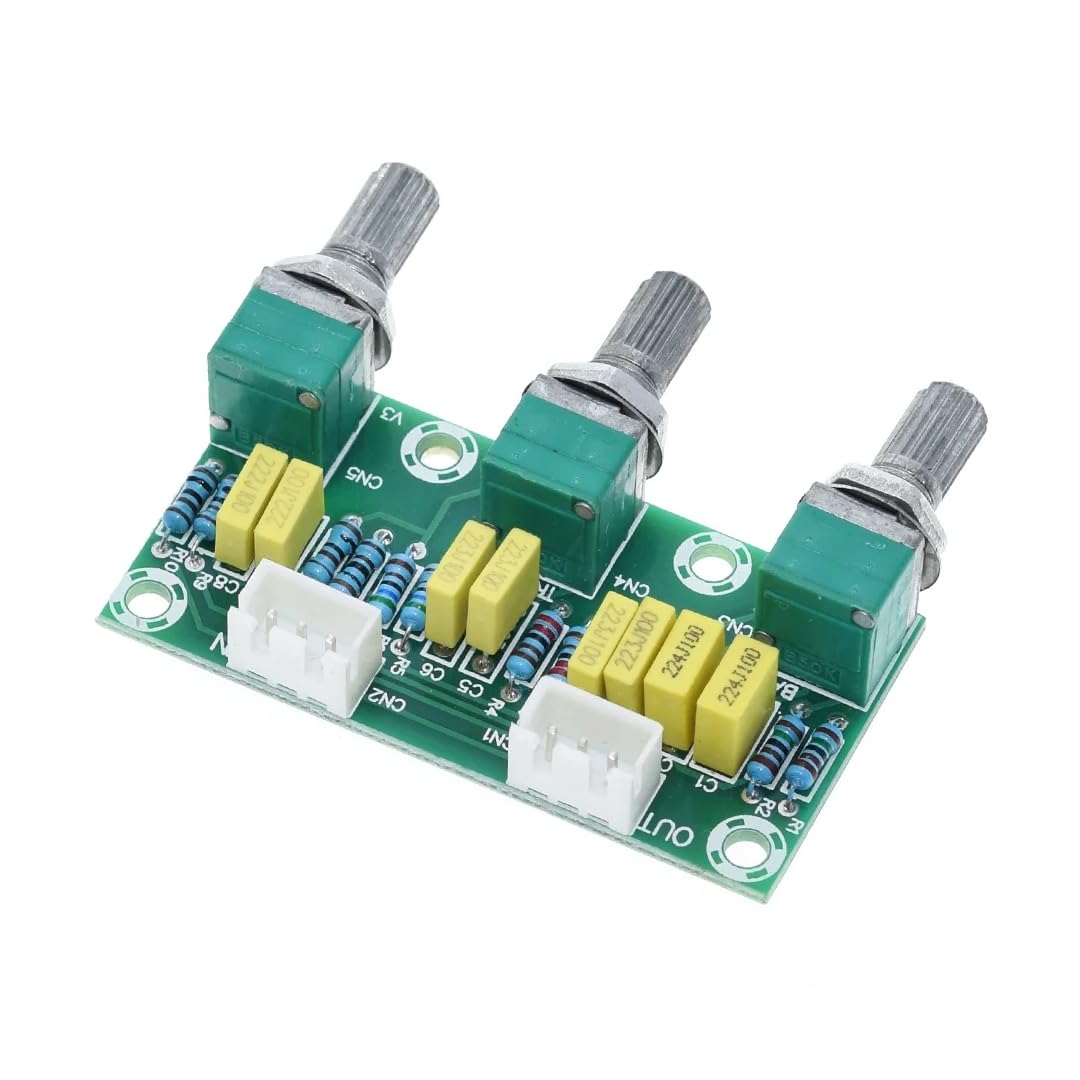

CentIoT - XH-M802 Passive Tone Board pre Amplifier preamp bass treble adjustment module

Brand: CentIoT

Color: Blue

Features:

• Product Name: Passive tone board
• Adjustable items: total volume treble bass
• Number of channels: 2-channel
• Knob spacing: 22.5mm

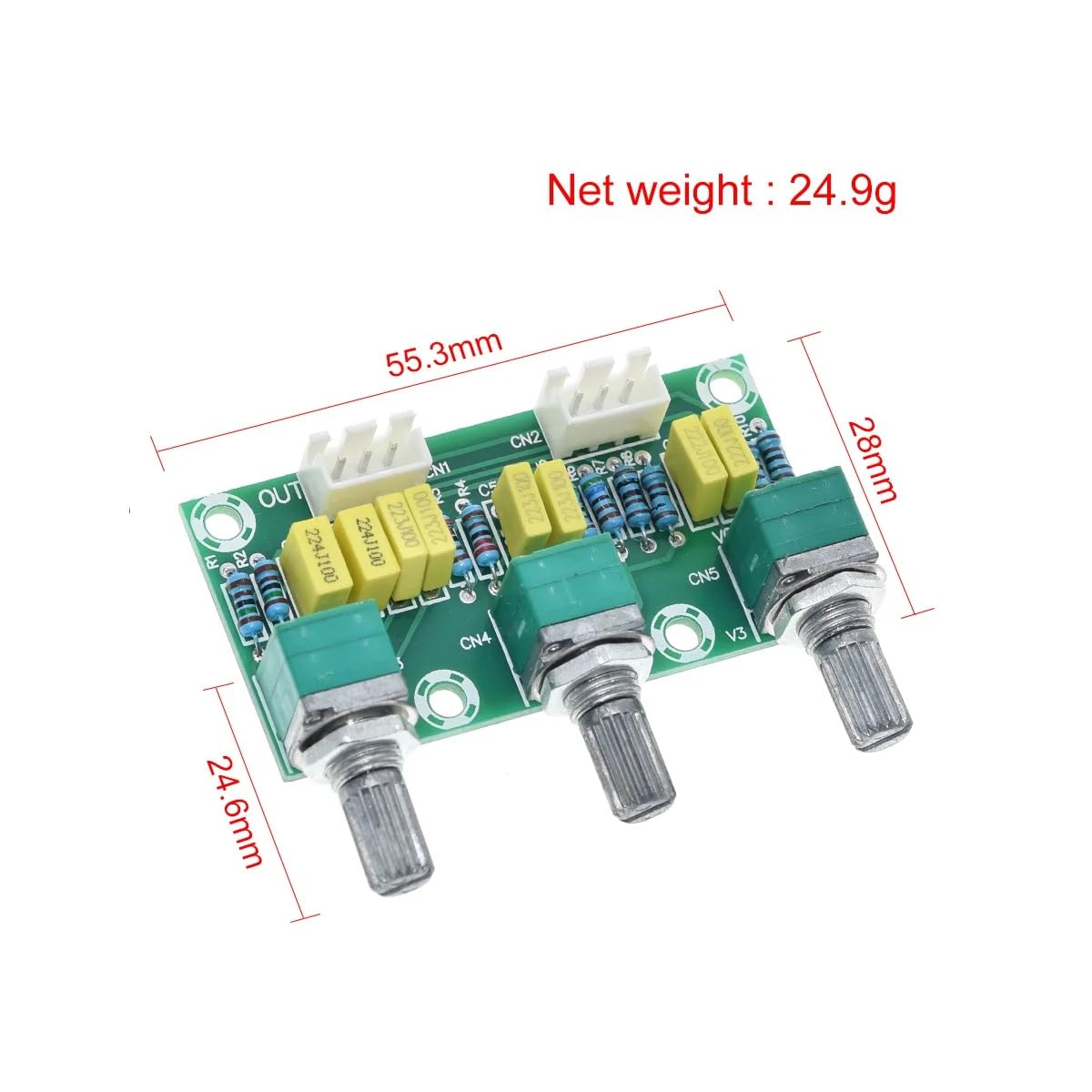

• Socket type: XH2.54 ~ 3P; Appearance size: 56.28mm

PartNumber: AU063-PAS-TONE-2CH

Details: Description The main function of the passive tuning board is to provide adjustment option to input audio signal for high and low frequency, and then sent to the amplifier board to further amplification The principle of the product is that the audio signal is directly filtered through the RC filter to get the desired high and low sound through the RC capacitor. The tone board does not need power supply, but the volume after processing will be much lower, hence need amplifer to feed into.

Model: XH-M802

Item Condition: New
