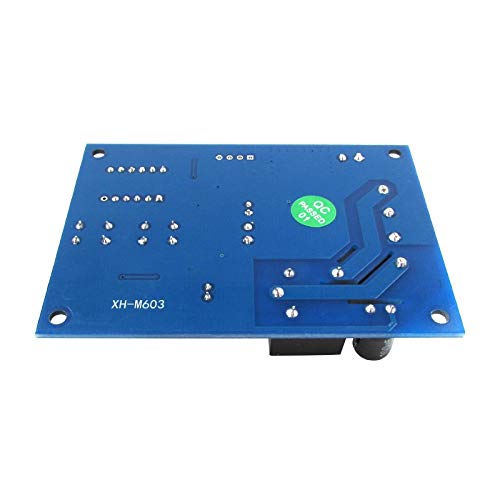

CentIoT - XH-M603 12-24V Digital Control Charge Controller Module - for Lithium Li-ion car Battery

Brand: CentIoT

Features:

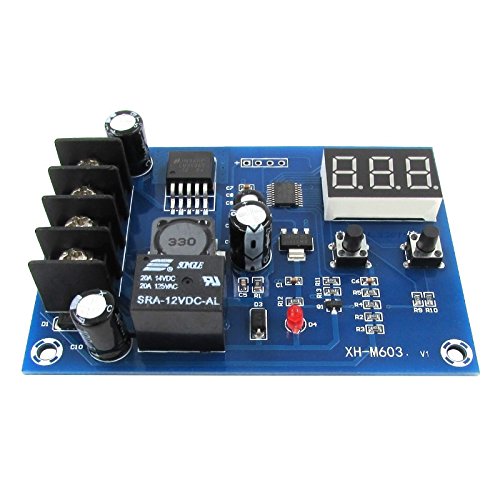

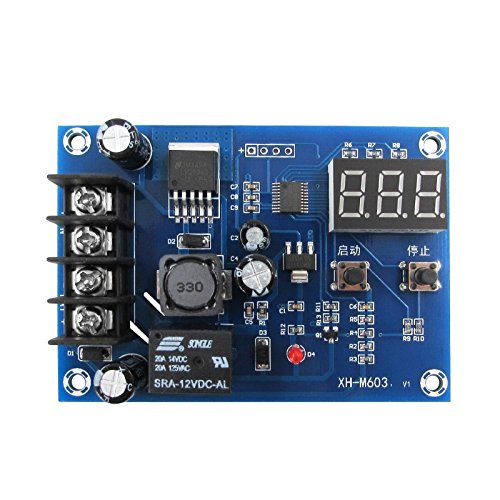

• XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board
• Input Voltage: DC 10-30V; Display Precision: 0.1V; Control Precision:0.1V
• Output Type:direct output; Voltage Tolerance:+/-0.1V
• Application Fields: 12-24V storage battery; lithium based
• Battery not included, customer has to purchase it seperately

PartNumber: XH-M603

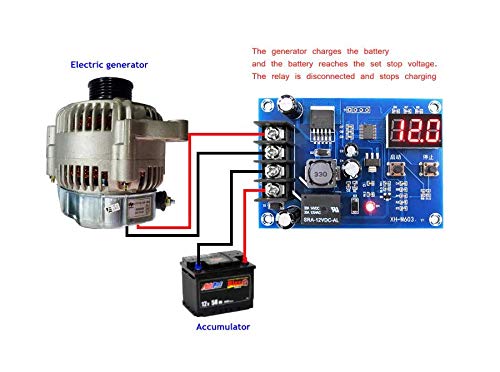

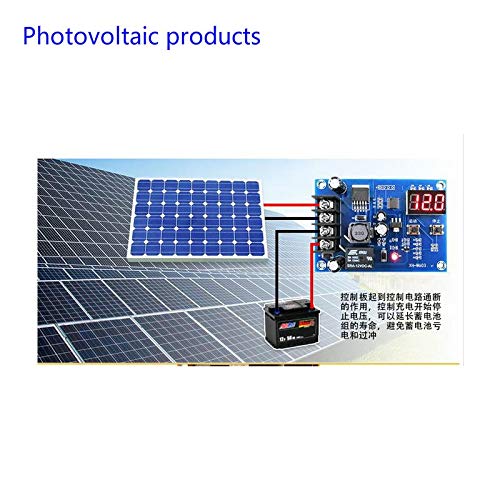

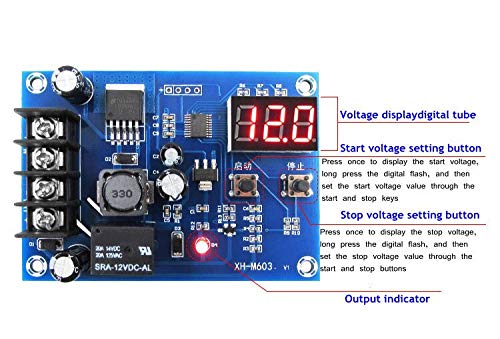

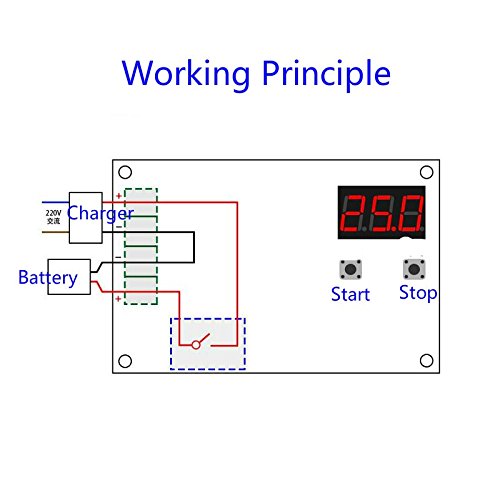

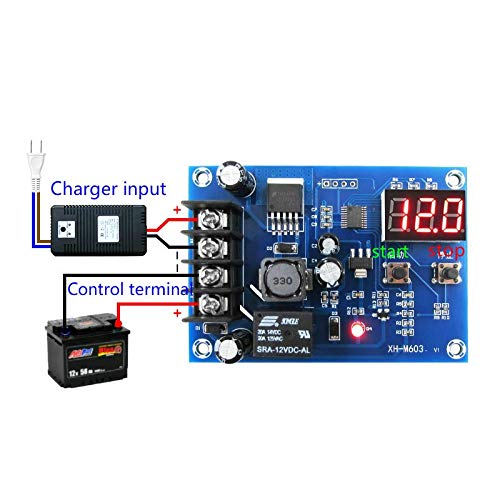

Details: This product is suitable for 10-30V battery charging control, can be set for start charging voltage and stop charging voltage! Connection: -Connect Charger with voltage range 10-30V at IN terminal -Connect battery to OUT terminal /br> Uses: Suitable for use in household chargers, solar energy, wind turbines. Settings:/br> In the setting voltage value, start button play button raised, about stop button role to down key 1. Set the start voltage: Normal display voltage state, press start voltage button to display the start charging voltage. Press and hold the start button for 3 Seconds, digital flashes, by start and stop button, set the start charging voltage value. 2. Set Stop voltage: Normal Voltage normal display mode, press Stop voltage button ,to display the Stop charging voltage. Press and hold the Stop button for 3 Seconds, digital flashes, set the Stop charging voltage value. 3.Factory Reset: Energized state while holding down the start / stop button, digital display 888, which is the factory setting. Setting Example: Condition: When start is Set to 12V start and stop at 15V Behaviour: while the voltage is below 12V ,the relay closes will take the charger charging voltage to the battery, when the charge voltage is greater than 15V ,The relay disconnect to stop charging.

UPC: 369639161514

EAN: 0369639161514

Model: XH-M603

Item Condition: New
