Description
Brand: CentIoT
Features:

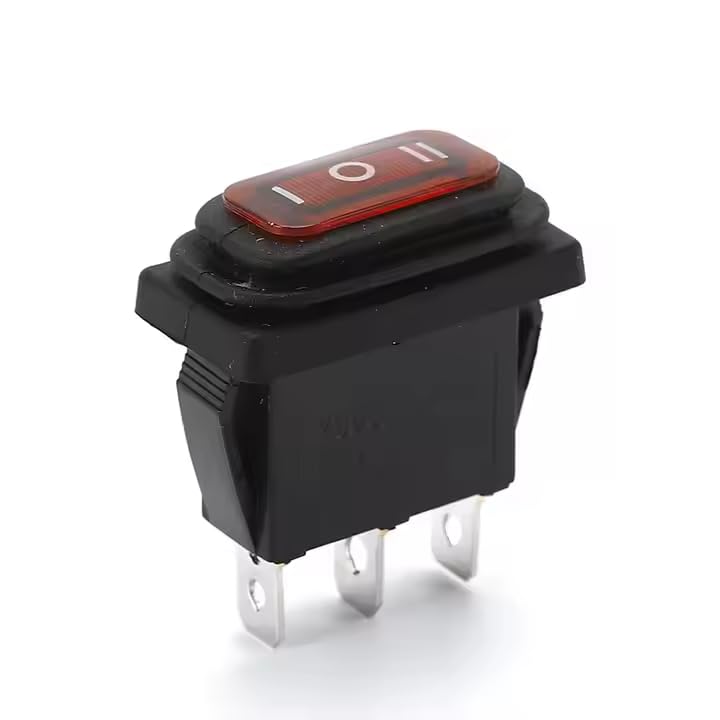

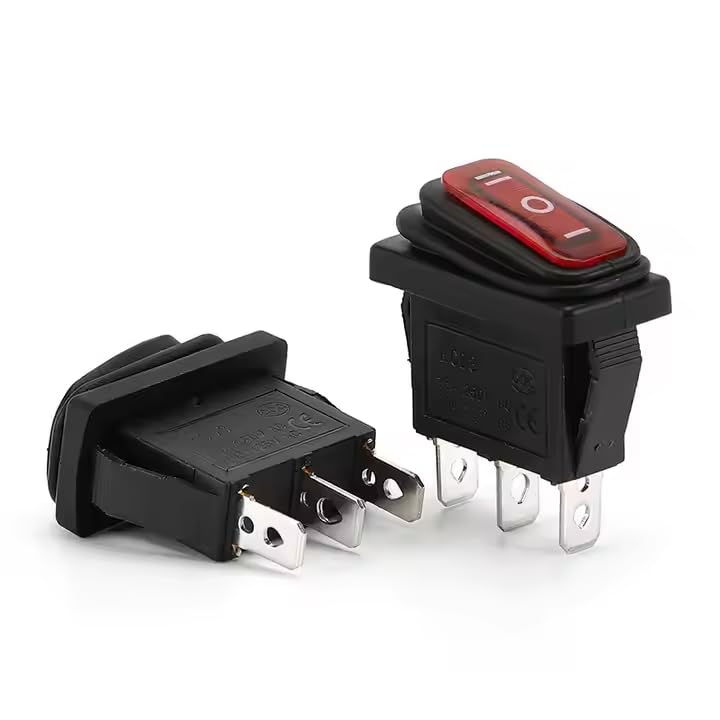

- Switch rating: 15A 250VAC; 20A 125VAC;16A 12VDC; Switch Face Color: Red (without illumination or lamp)
- Terminal type: Blade Pin terminal; Contact resistance: less than 50Ω; Insulation resistance: ≥1000Ω; Isolation intensity: 2500VAC，50Hz/60Hz:

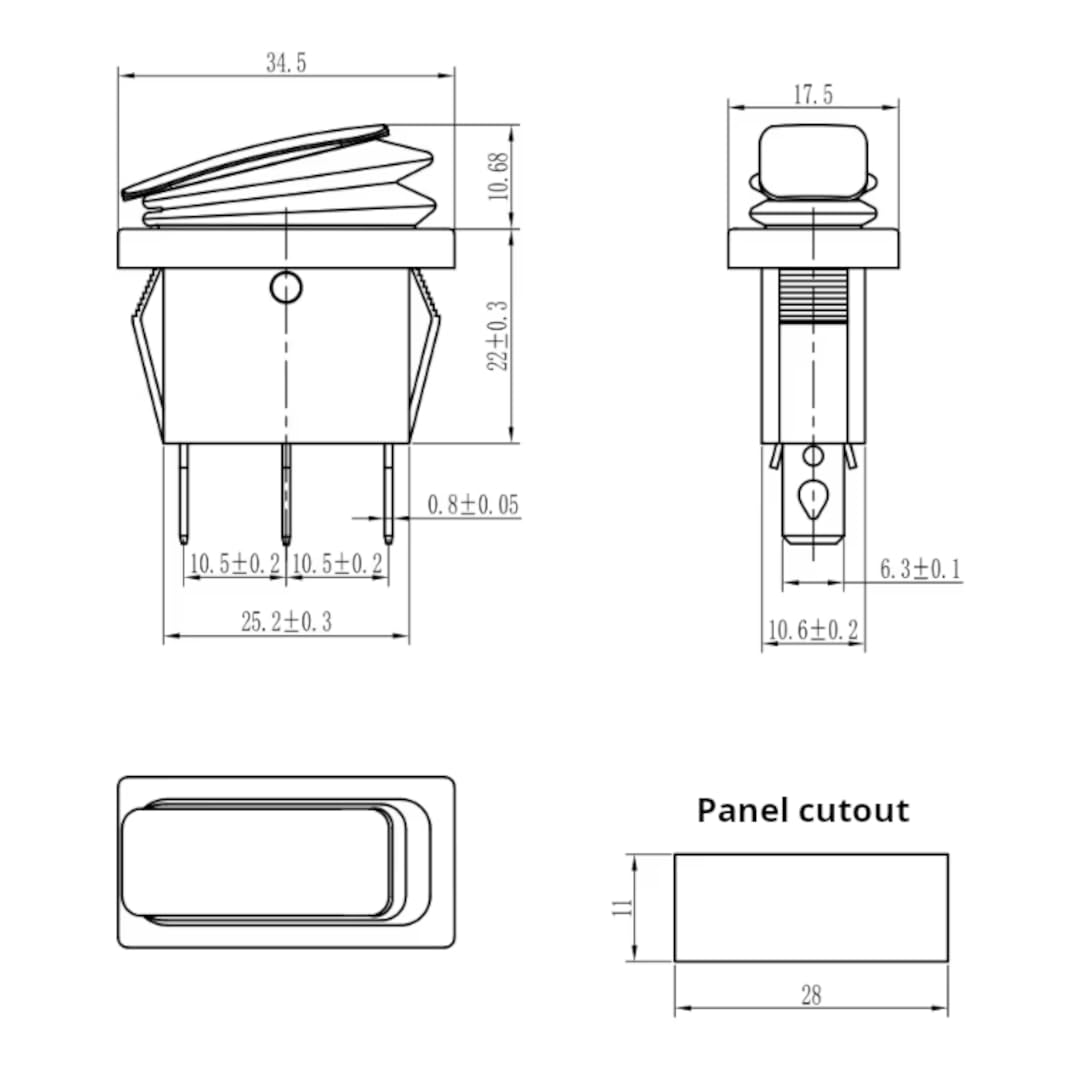

- Panel thickness: 1~15mm: Operating pressure: About 4N; Operation travel: About2mm
- Mechanical life: More than 50000 times; Electrical life: More than 100000 times
PartNumber: KCD3-3P-WP-3PO
Model: KCD3-3P-WP-3PO
