Description
Brand: CentIoT
Features:
- Switch rating: 16A 250VAC; 20A 125VAC;16A 12VDC
- Terminal type: Blade Pin terminal; Contact resistance: less than 50Ω; Insulation resistance: ≥1000Ω; Isolation intensity: 2500VAC，50Hz/60Hz:
- Mechanical life: More than 50000 times; Electrical life: More than 100000 times

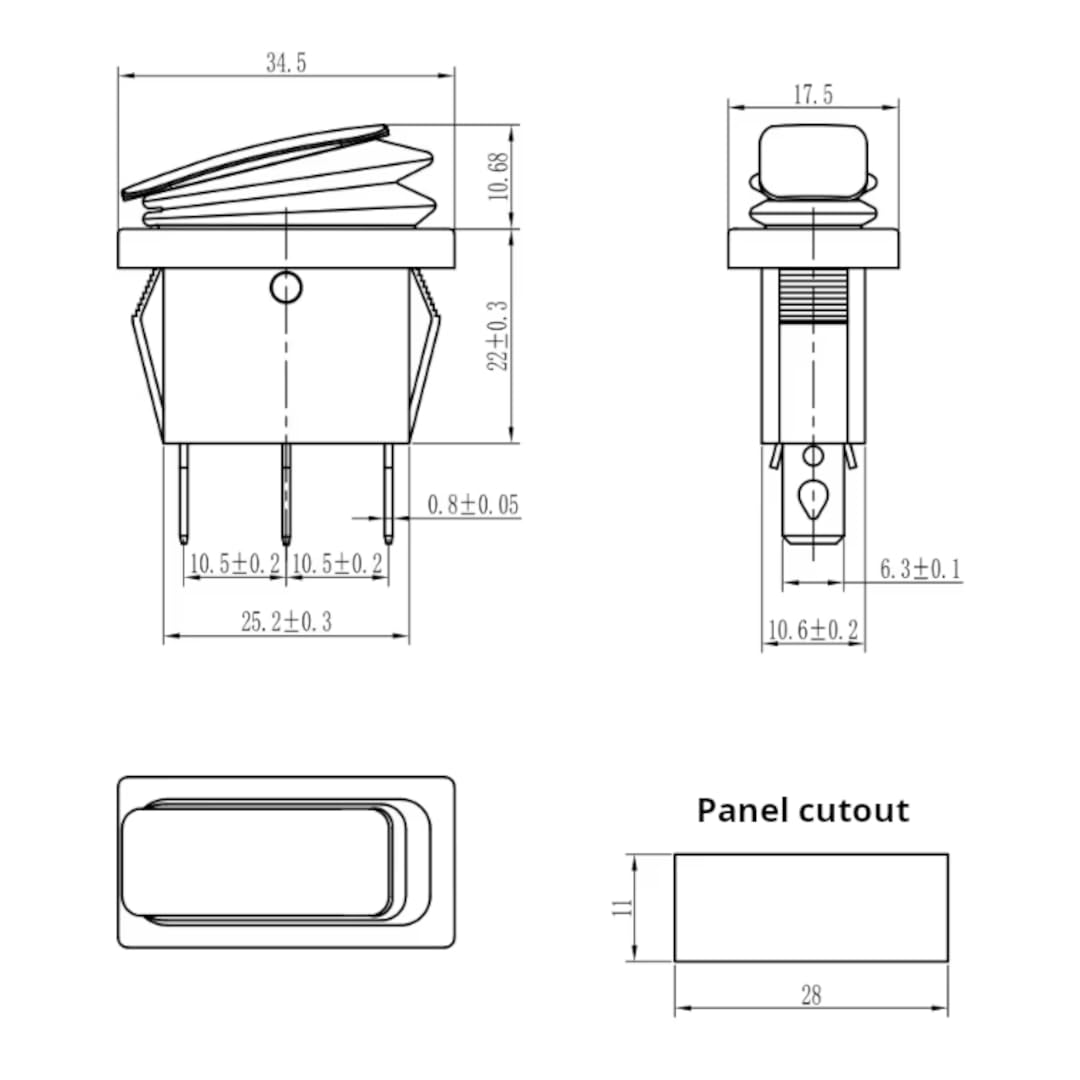

- Panel thickness: 1~15mm: Operating pressure: About 4N; Operation travel: About2mm

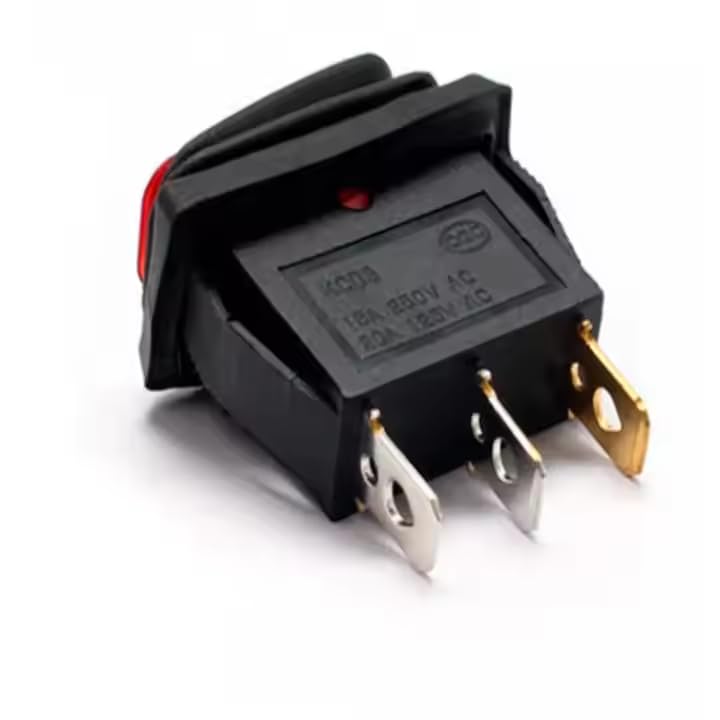

PartNumber: KCD3-3P-WP-35X18

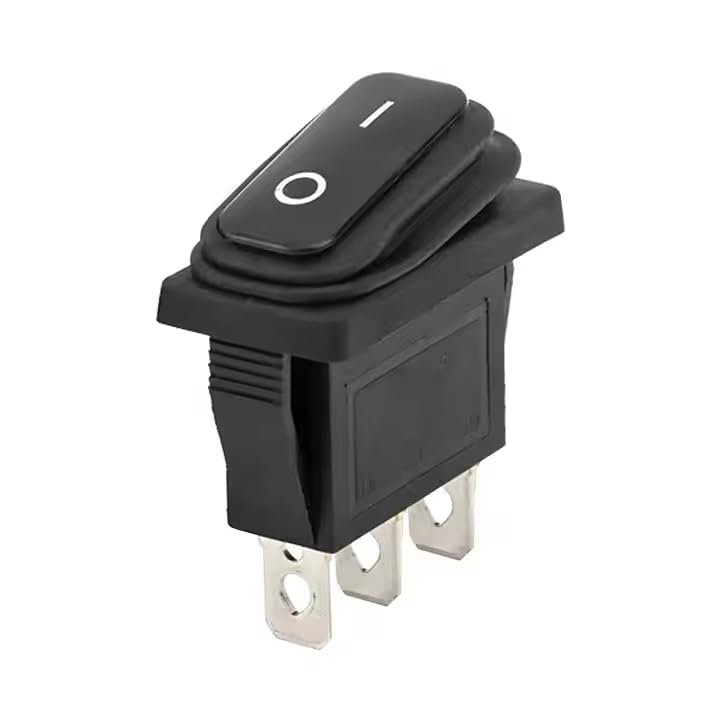

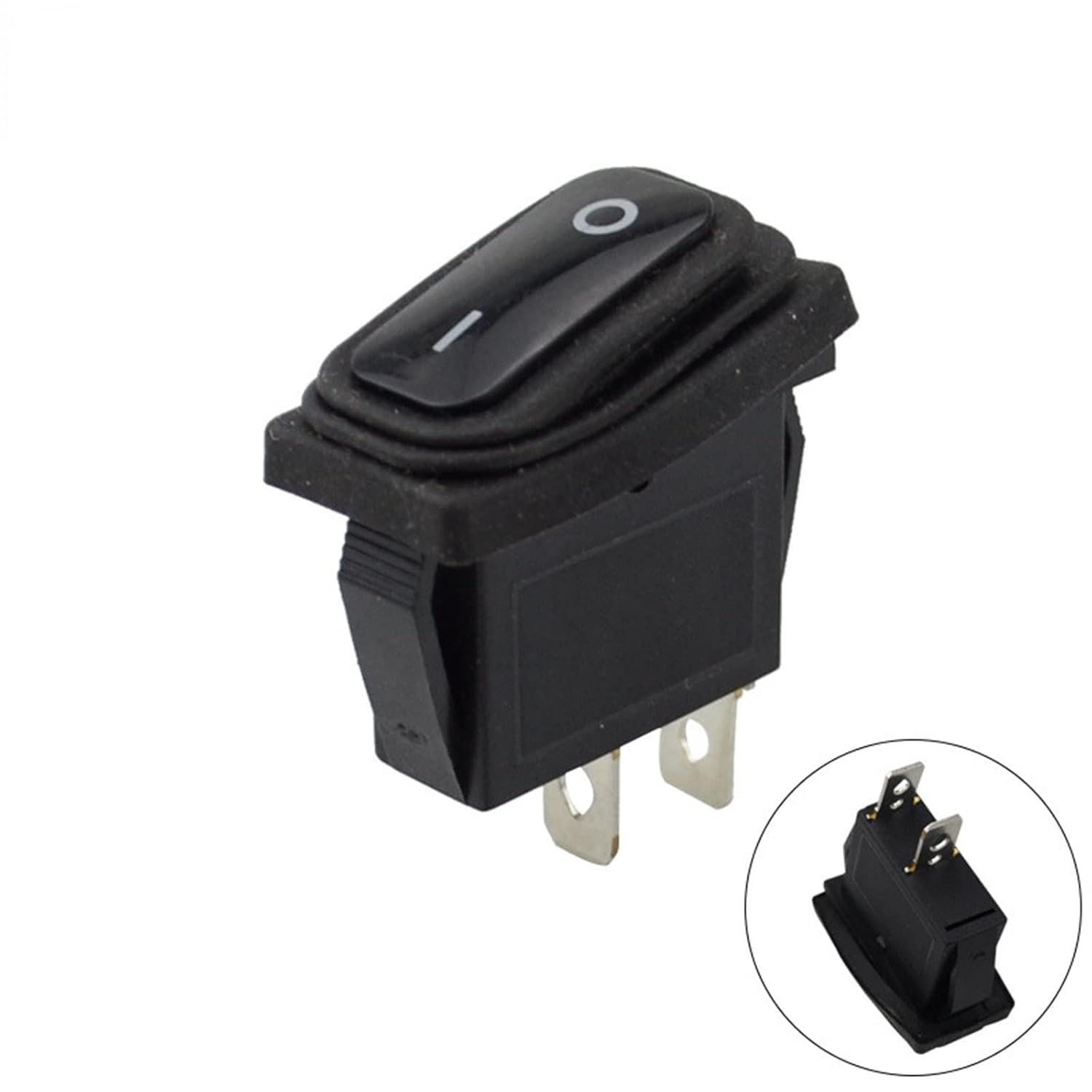

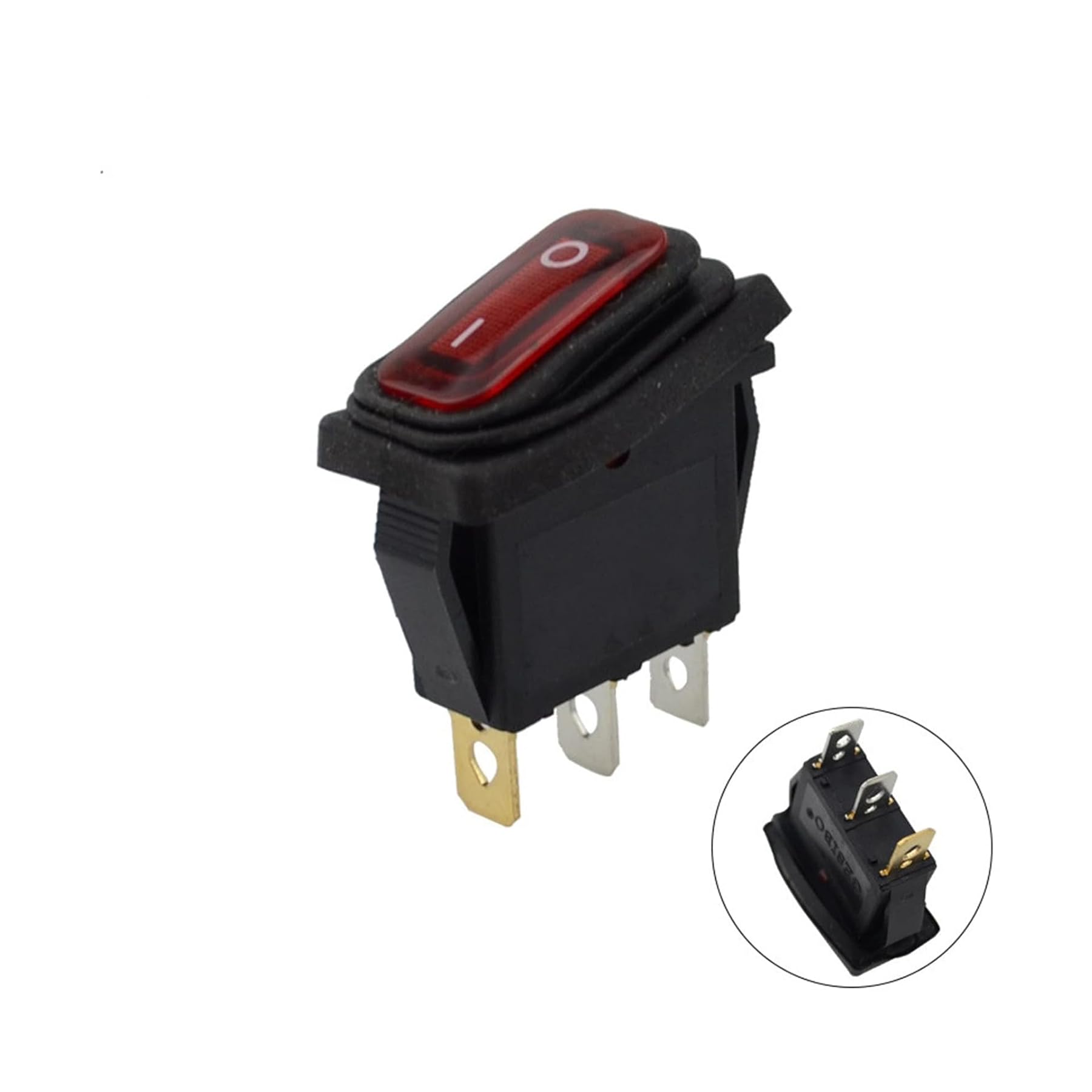

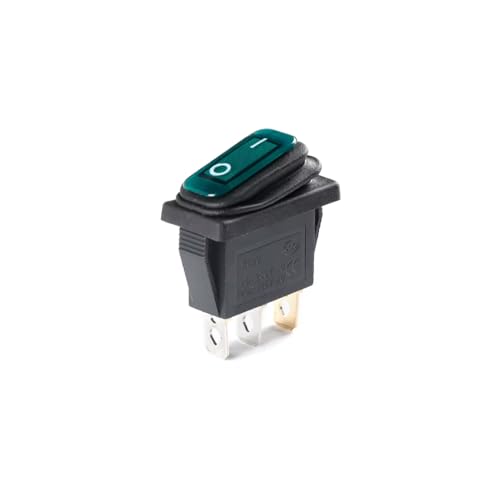

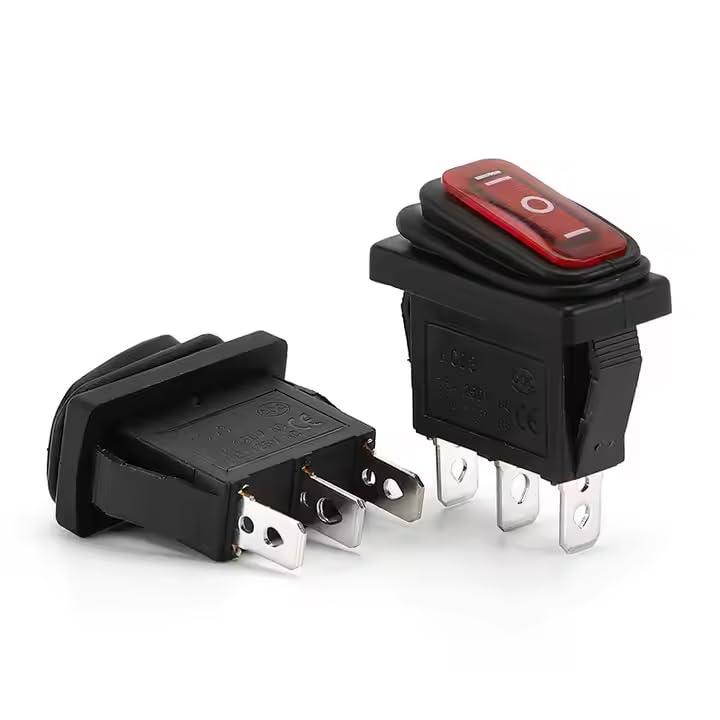

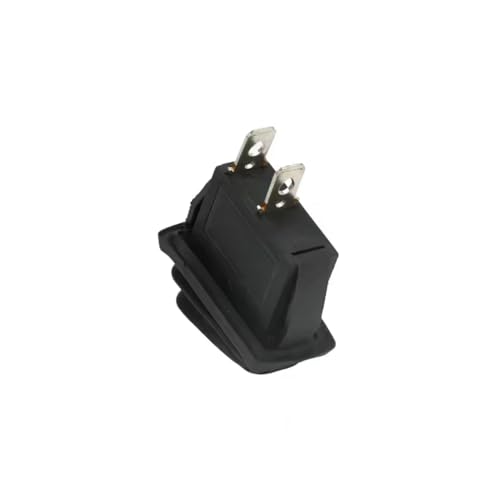

Details: Rocker Switch: A Reliable On/Off Electrical Switch Also known as the "boat switch," the rocker switch is a versatile on/off electrical switch that operates by swinging from side to side, connecting or disconnecting the circuit. Types of Rocker Switches CentIoT offers a range of rocker switches, including: - Mini type - Common type - Waterproof type Mounting Options Our rocker switches are designed for various mounting applications, including: - Printed circuit board through-hole - Surface mount - Panel mount Applications Rocker switches are ideal for use in: - Household appliances - Computers - Other electronic devices Composition The rocker switch consists of eight key components: 1. Operation button (PA66 nylon, UL94V-2) 2. Sealing rubber (silicone rubber) 3. Semi-elliptical spring (stainless steel plated silver) 4. Internal case (Polycarbonate) 5. Lid (Polycarbonate) 6. Cover (PA66 nylon, UL94V-2) 7. Contacts (coin silver, silver plated) 8. Terminals (copper, silver plated)
Model: KCD3-3P-WP-35X18
