CentIoT - Voice Music Recording Module

Brand: CentIoT

Features:

• Chip: ISD1820; Working voltage: DC3-5V
• Easy to use 10 Second voice recording; High-quality, natural voice reduction; Can be used as a loudspeaker module
• With loop, jog play, single-pass playback; Available single-chip control

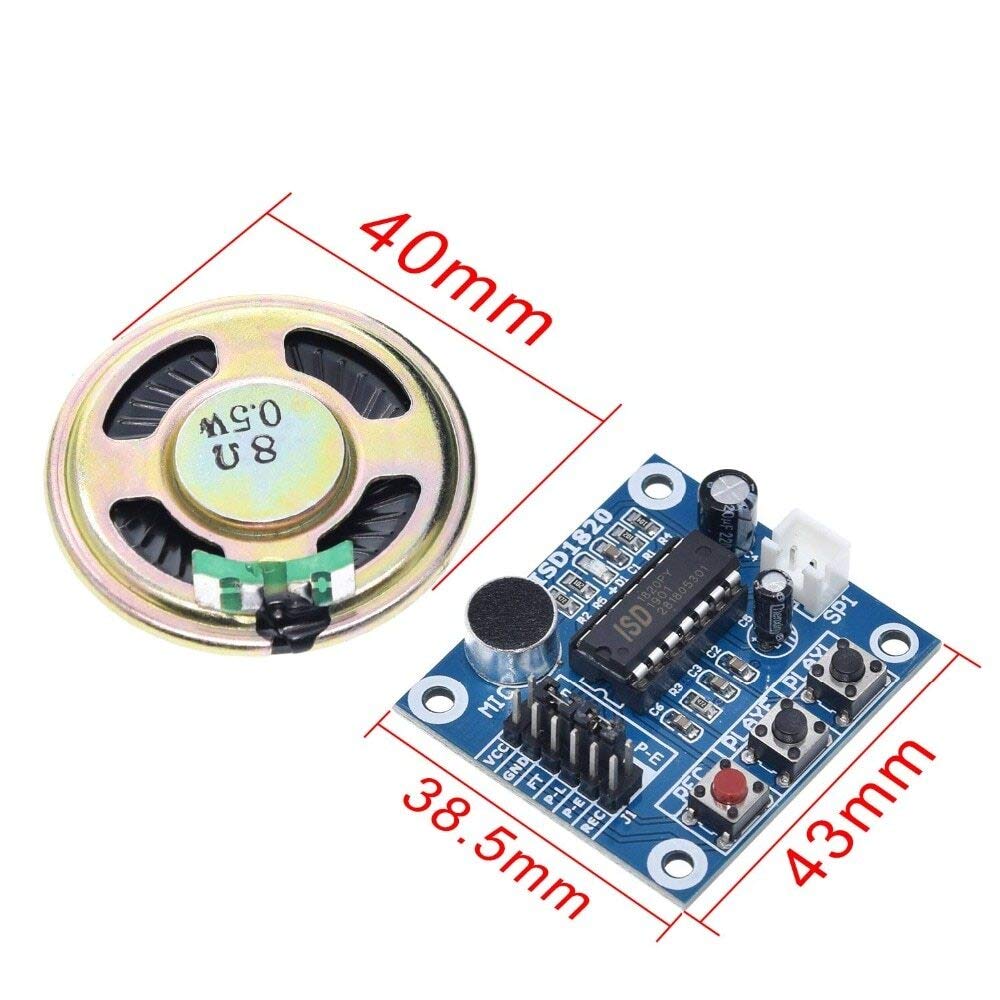

• This module can directly drive 8ohm 0.5W Small speakers; it can also be paired with external amplifiers

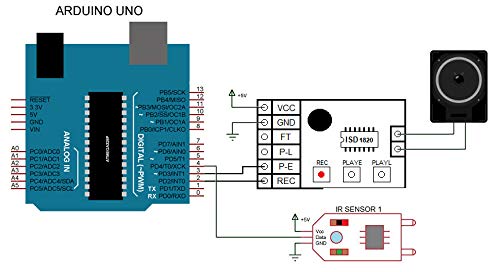

• Can be controlled from micro-controller like STM etc...

PartNumber: AU00xx

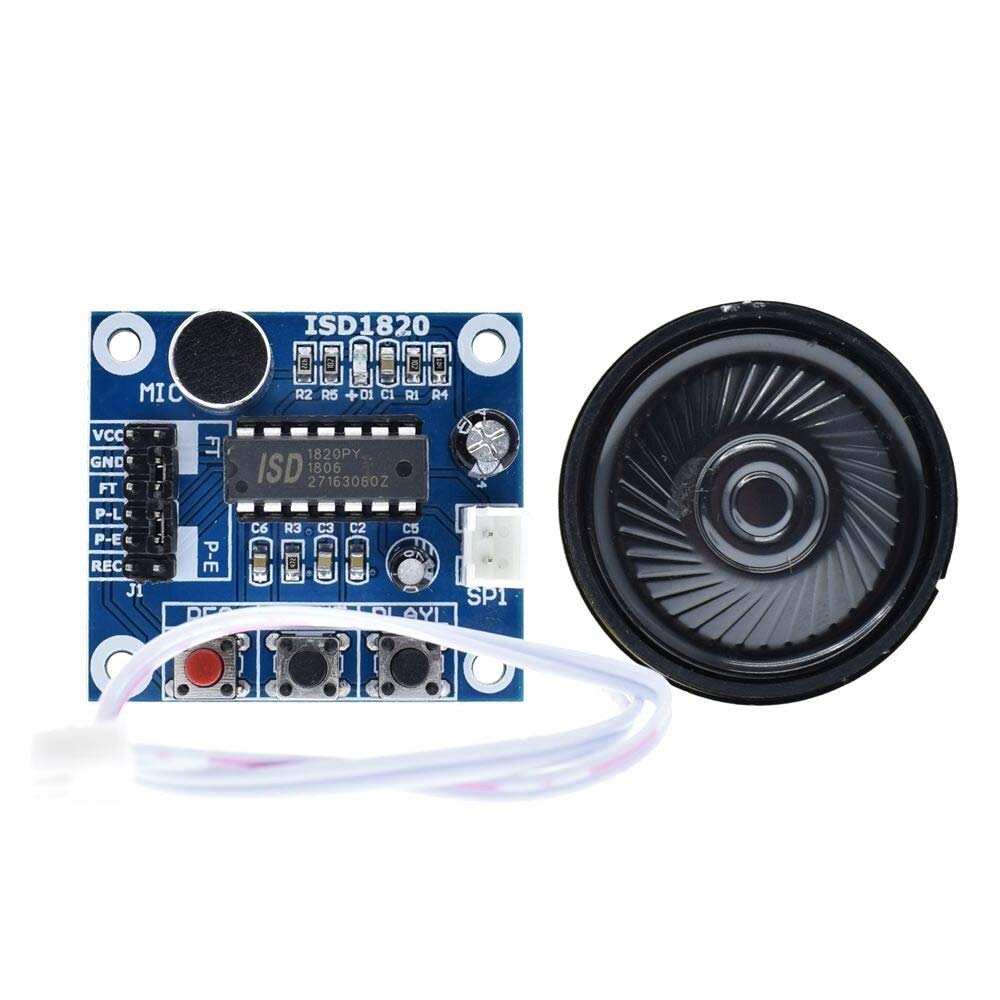

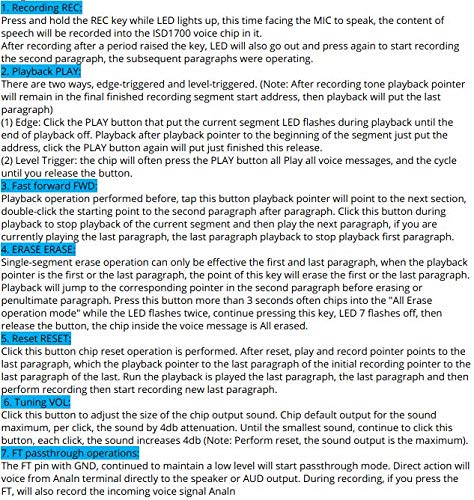

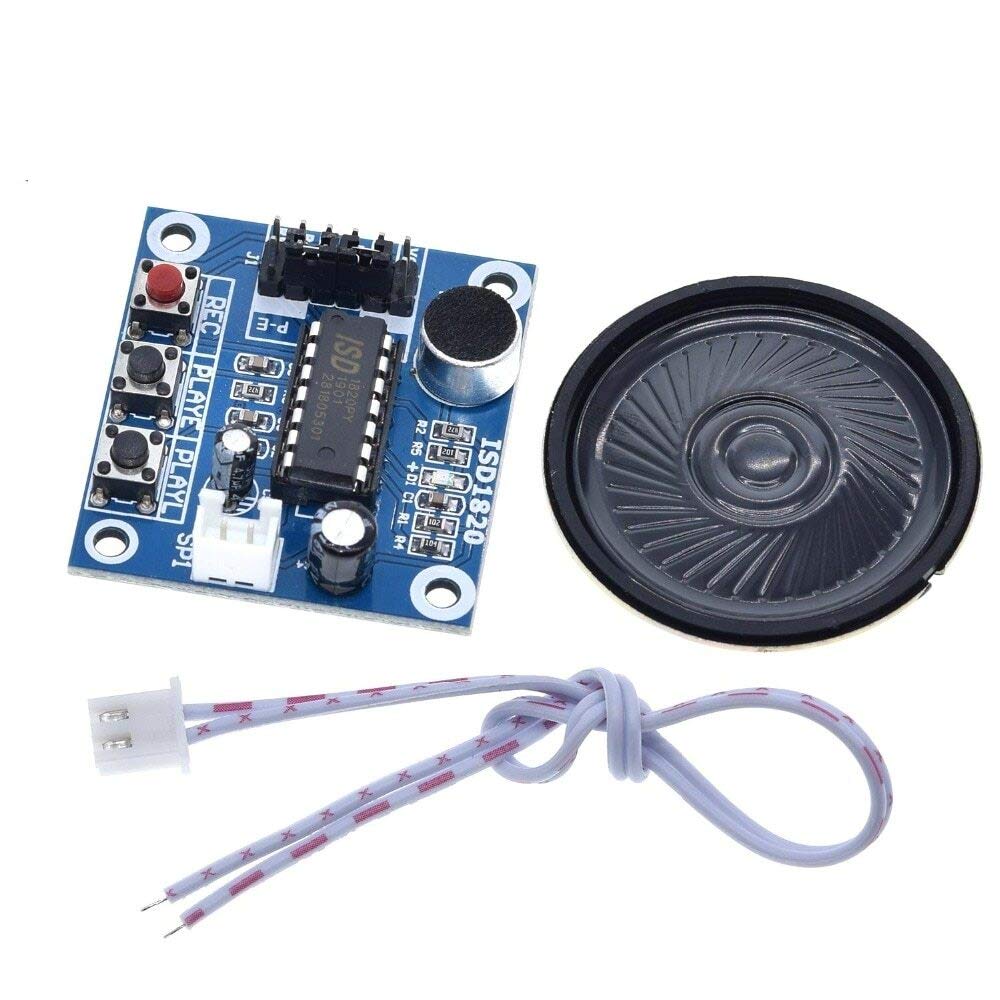

Details: Voice Record Module is base on ISD1820, which a multiple‐message record/playback device.It can offers true single‐chip voice recording, no‐volatile storage, and playback capability around 10 seconds. This module is easy to use which you could direct control by push button on board or by Micro-controller such as, STM32, ChipKit etc. From these, you can easy control record , playback and repeat and so on. Specification: 1. Power supply:3-5V, Can be accessed by pin power 2. Recording and playback control:Key control or single-chip, control linesIOHas been elicited 3. Press to control the recording and playback operation method: RECkey:Recording button, press and hold can be recorded, release the button to stop recording RLAYEkey:Trigger mode playback, click to play the current entire paragraph of the voice PLAYLkey:Jog mode playback, press and hold before playback, release to stop playback RPLJumper:Loop mode control, can be looped

Model: AU00xx

Binding: Electronics
