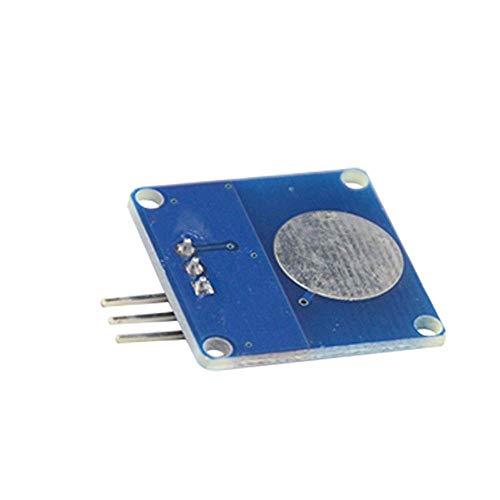

CentIoT - TTP223B Blue Digital Touch Sensor Switch Module 1 Channel Self-Locking No-Locking Capacitive Button

Brand: CentIoT

Color: Blue

Features:

• IC: TTP223B; Jog type: the initial state is low, high touch, do not touch is low (similar touch of a button feature) Low power consumption
• Power supply: 2 ~ 5.5V DC; Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination;
• Touch surface can be used as positive and negative, can replace the traditional touch of a button

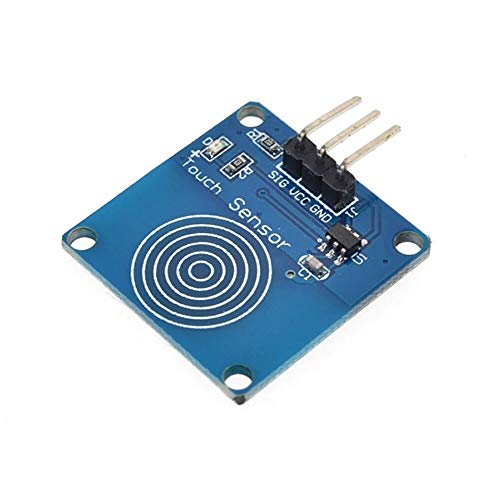

• Control Interface: A total of three pins (GND, VCC, SIG), GND to ground, VCC is the power supply, SIG digital signal output pin;
• Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger.

PartNumber: SWT002-TTP223B-1CH

UPC: 679043314049

EAN: 0679043314049

Model: SWT002-TTP223B-1CH

Item Condition: New
