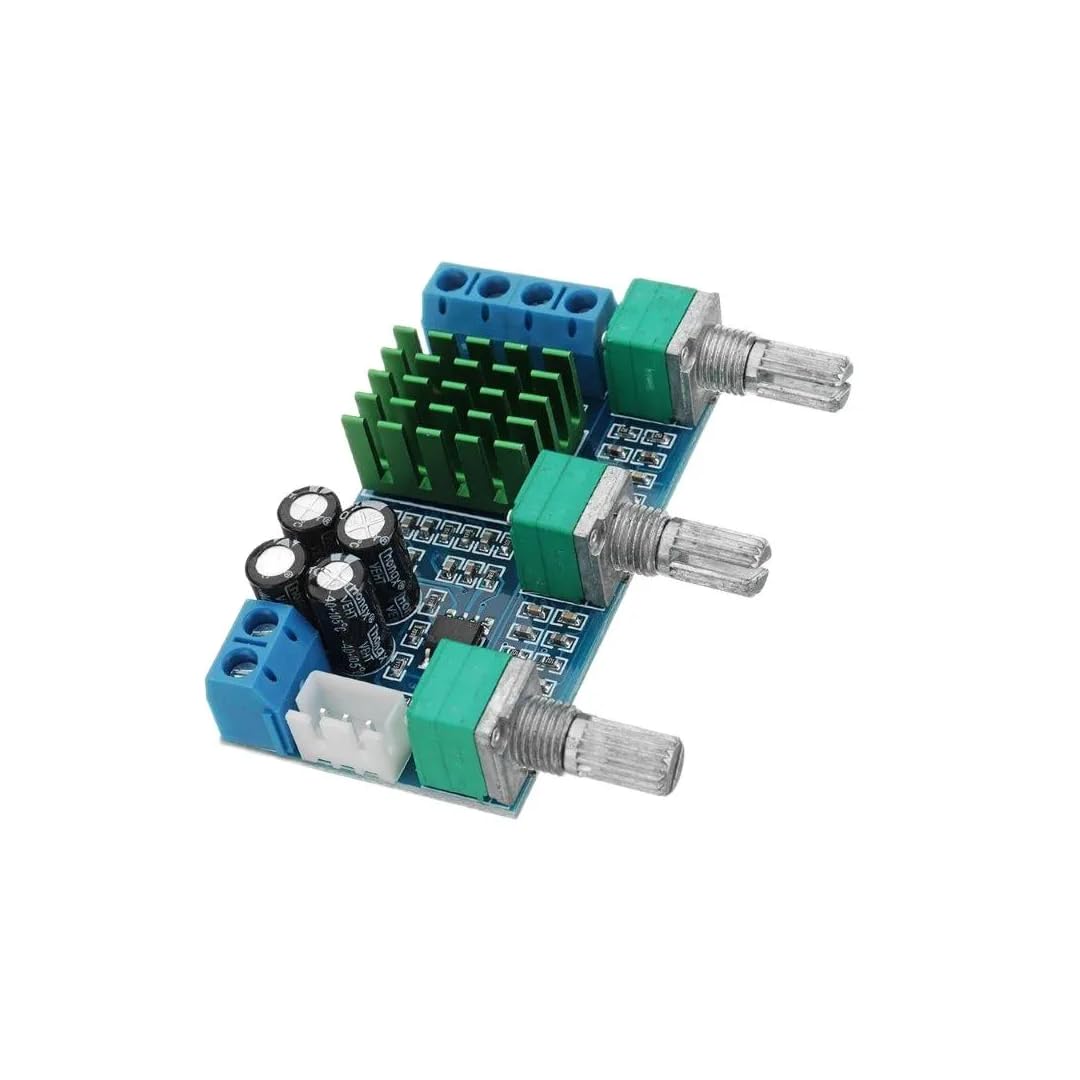

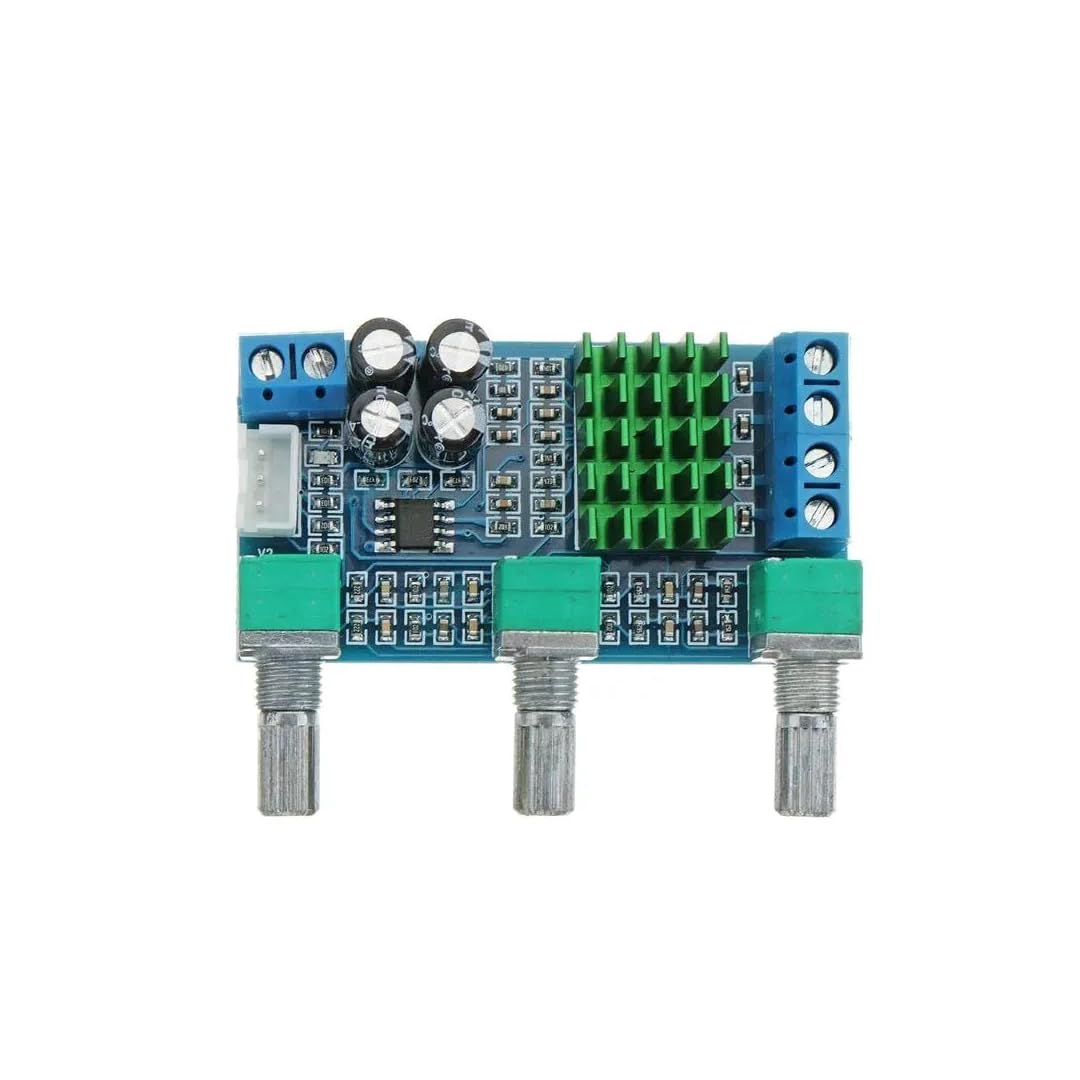

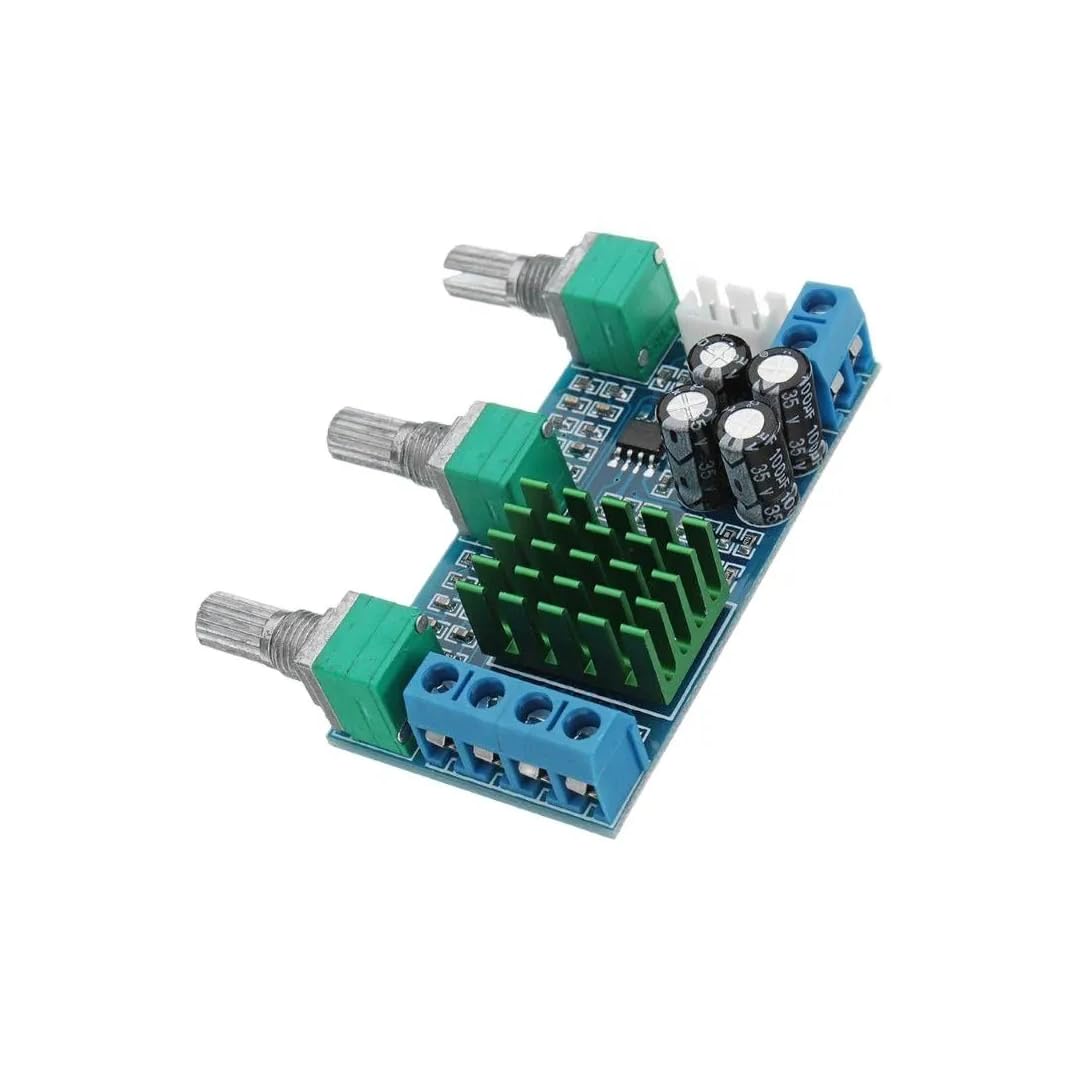

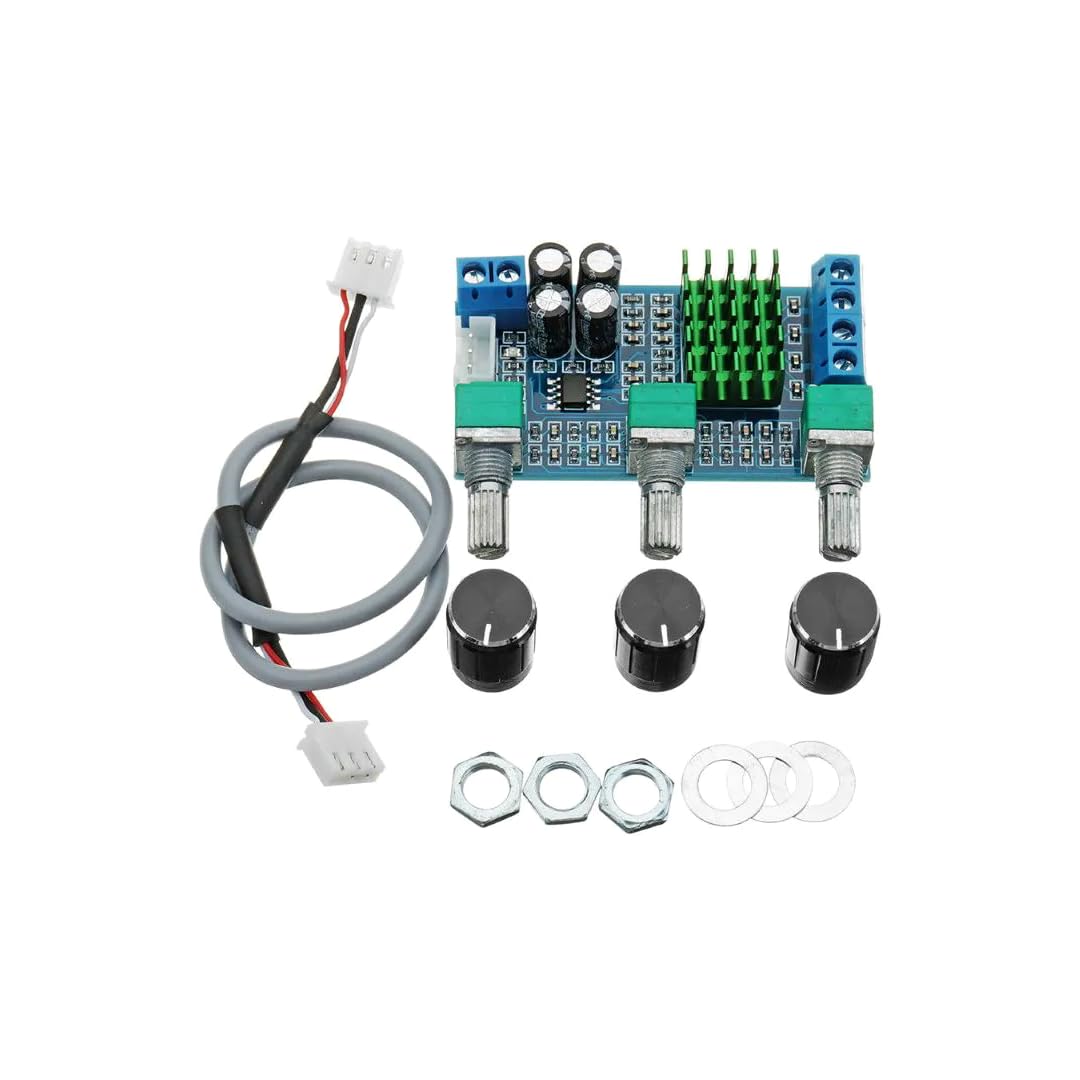

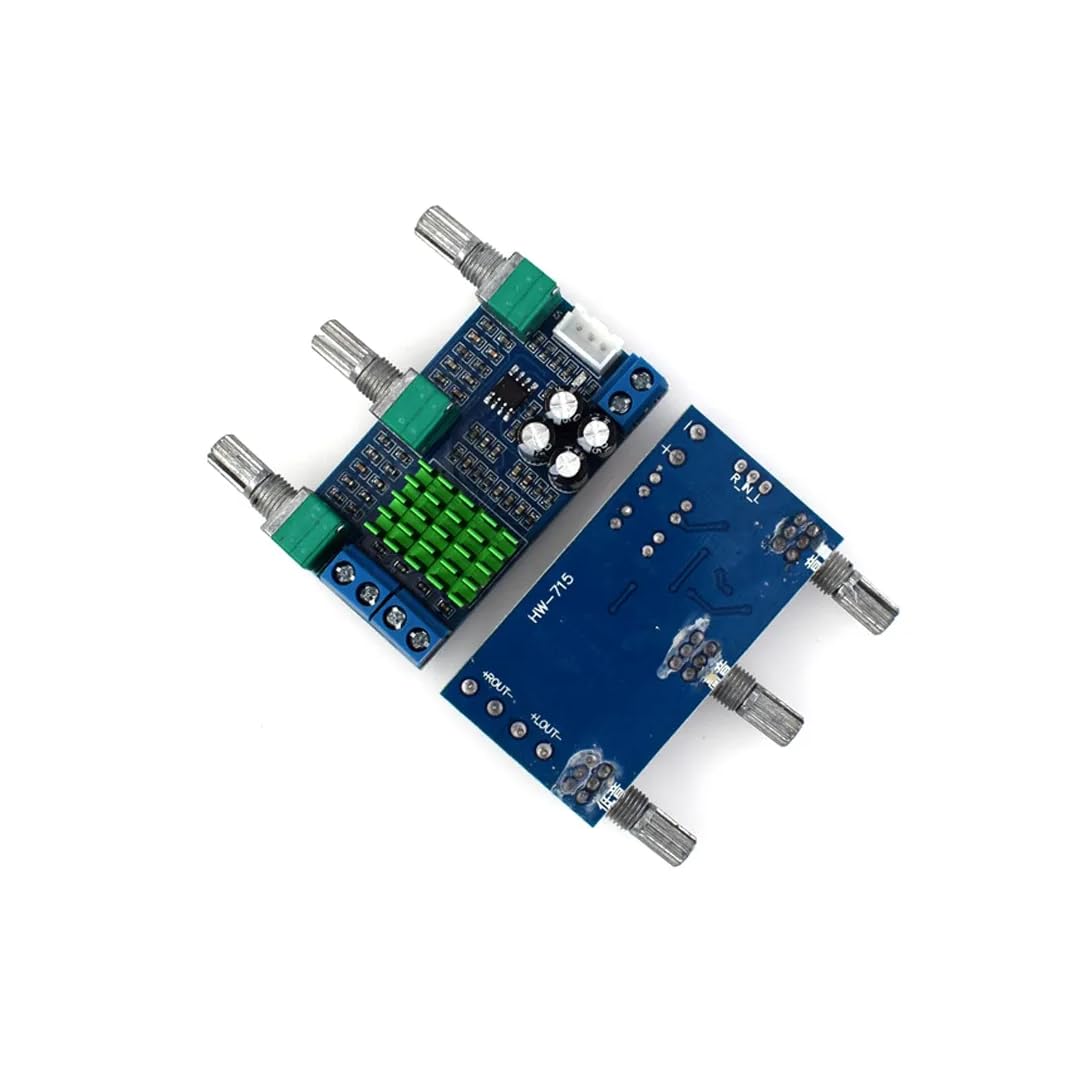

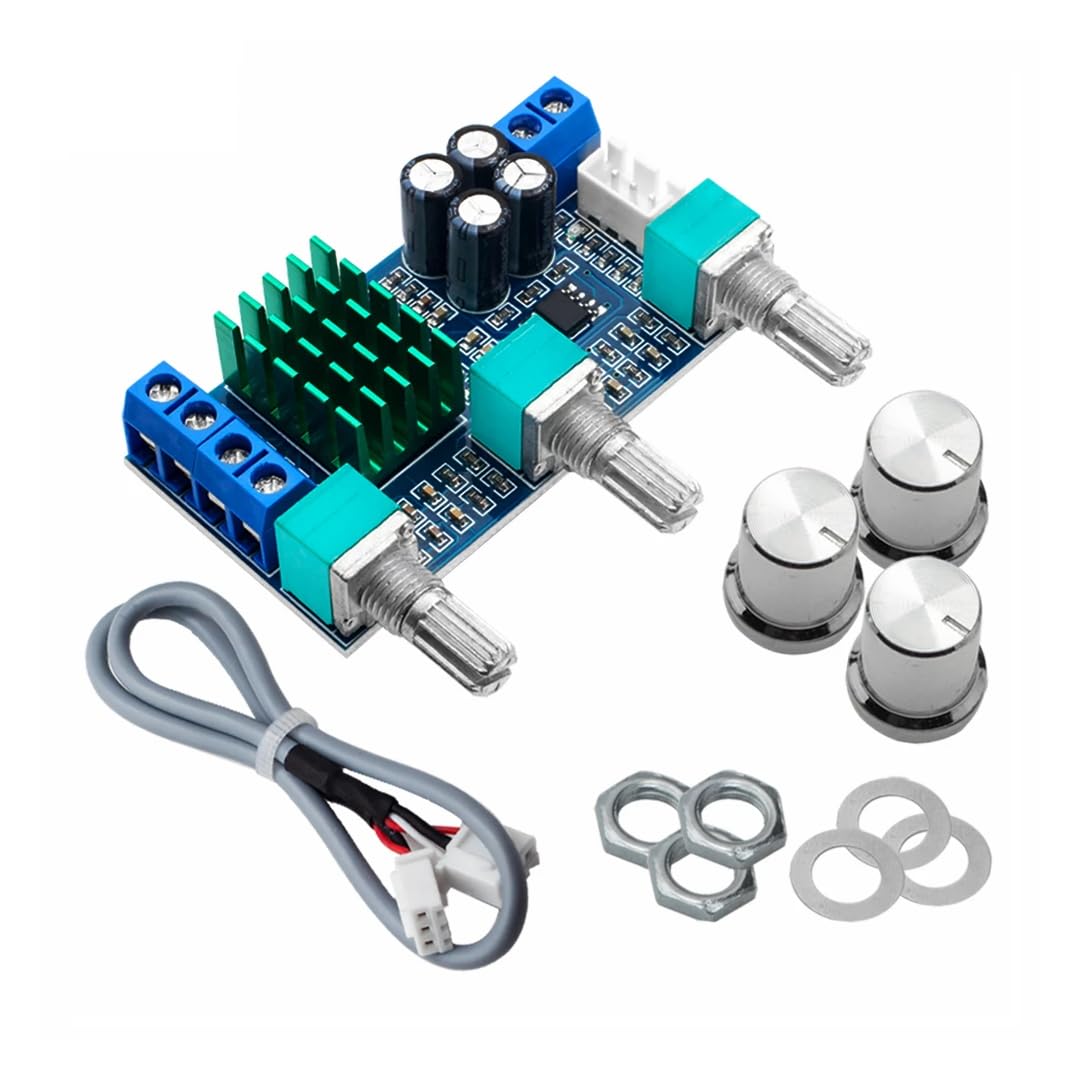

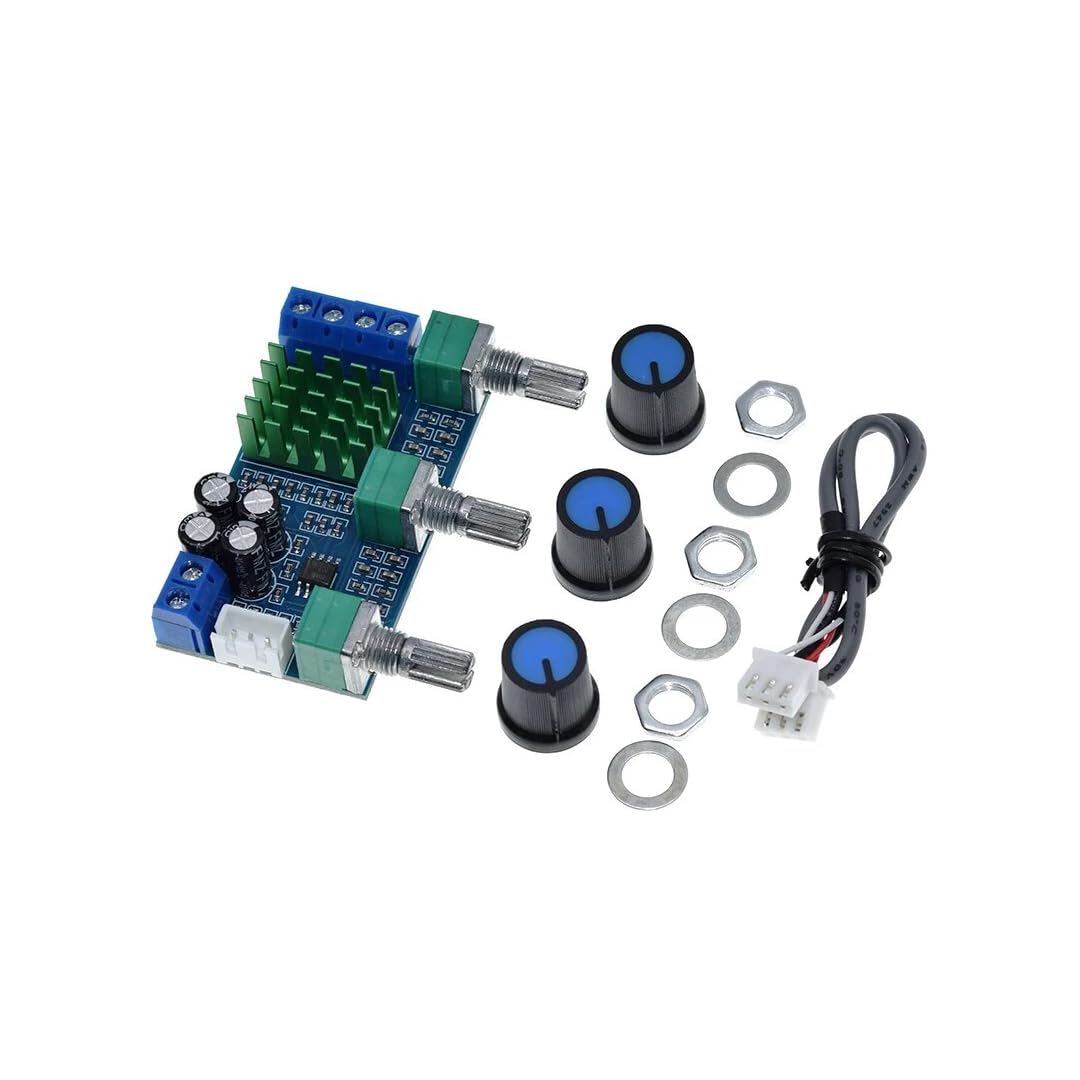

CentIoT - TPA3116D2 2 X 50W Dual Channel Digital Audio Amplifier Board - with bass, treble and volume control

Brand: CentIoT

Features:

• Amplifier chip: TPA3116D2; with Base and Treble tone adjustment, use along with speaker protection board to avoid pop sound during power on/off, or tone down the volume to zero before power on/off.
• Output power: 2 × 50 W Into a 4-Ω BTL Load at 21 V; 2 × 30 W Into a 8-Ω BTL Load at 24 V; 2 × 15 W Into a 8-Ω BTL Load at 15 V
• Channel Type: 2.0 Stereo; Add additional heatsink, if intend to use for 50W capacity, existing heatsink only usefull upto 15W per channel

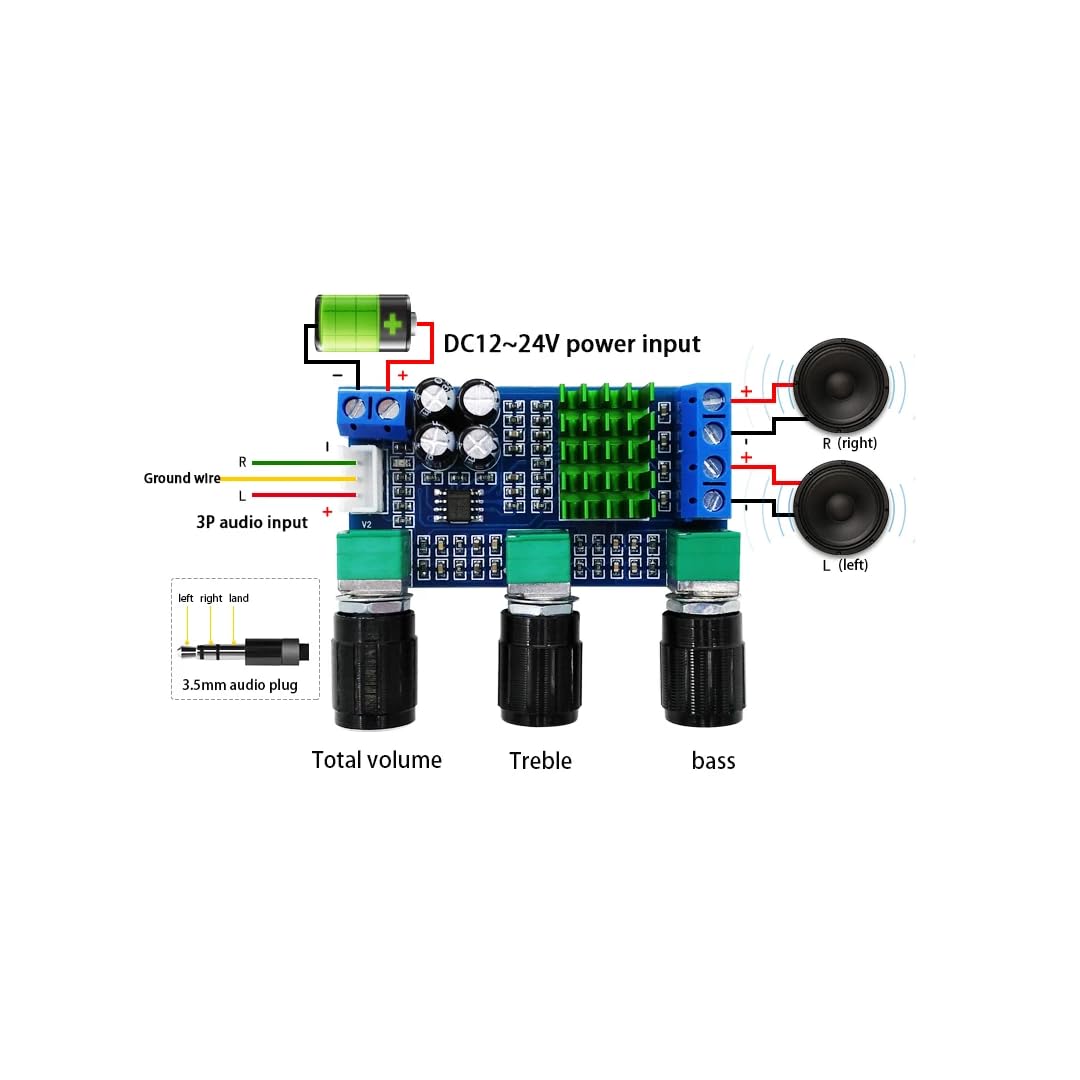

• Power input: DC 12V to 24V, Recommended DC voltage 12V, current above 8A
• Frequency response: 20Hz-20KHz; Power efficiency > 90%
• Volume knob color may vary fom batch to batch; Match speakers: 4-8Ω, 60-100W, 3-10 inch bookshelf speakers, floor speakers.

PartNumber: AU085-TPA3116D2-OP-2X50W

Details: TPA3116D2 chip features: 1. High-efficiency class D operation, with > 90% power efficiency and low idle loss characteristics, advanced modulation system configuration, multiple switching frequencies, and AM interference prevention; 2. The TPA3116D2 advanced oscillator / PLL circuit uses multiple switching frequency options to suppress AM interference. When used with the master-slave mode option, multiple devices can also be synchronized; 3. The TPA3116D2 device provides comprehensive protection against short circuit, overheating, overvoltage, undervoltage and DC faults. In the event of an overload condition, the device reports the fault condition to the processor, thereby avoiding its own damage. Note: 1. The general power supply and power amplifier should be kept at a certain distance to avoid electromagnetic interference. It is better to use a high quality power supply and the power supply will be stable. If you use a power supply such as a transformer, it is best to cover the transformer with a metal cover to prevent electromagnetic interference. 2. The Module does not include speaker protection delay circuit, use external speaker protection board to avoid pop sound during power on/off, or tone down the volume to zero before power on/off.

Model: AU085-TPA3116D2-OP-2X50W

Item Condition: New
