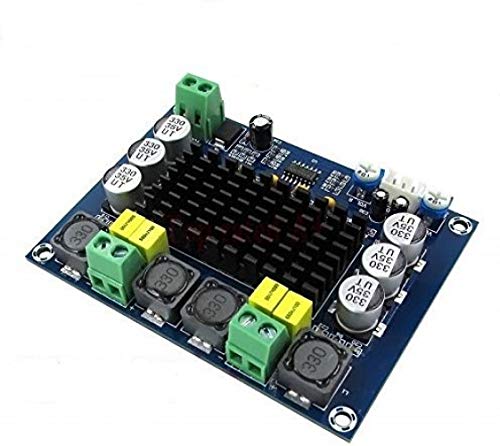

CentIoT - TPA3116D2 2 x 120W 12 - 26V - Dual channel stereo mini Class D Digital Audio Power Amplifier Board

Brand: CentIoT

Features:

• Dual Channel 120W per Channel max at 4ohm - with volume Control (individual control per channel), Dual-panel wiring, properly solve the crosstalk between the ground potential balance and channel wiring
• Unique with LC filter Class D digital power board; Output impedance:2 - 8OHM
• Operating voltage: DC 12 - 26V, Recommended voltage: 24 V, Quiescent current: 20 mA, Rated output power: 120 W +120 W (4)
• Excellent noise suppression in the case is not connected to the input audio, the ear close to the speaker can not hear any noise
• Frequency response: 20Hz to 50KHz

PartNumber: AU012-TPA3116D2-120Wx2

Release Date: 24-06-2019

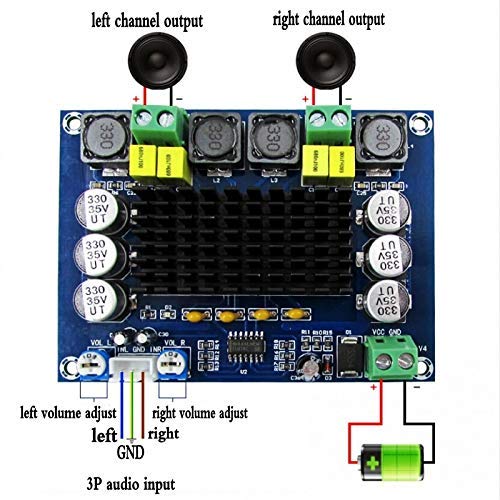

Details: Dual channel stereo output 120 w + 120 w power Class D Works with 12v to 26V (recommended 24V) power supply High amplification efficiency 85% can directly drive 4 Ω/8 Ω small speakers to medium speakers. Good sound quality & noise suppression Unique with LC filter comes with switch Potentiometer,can adjust the volume individually on each channel

EAN: 4604046158853

Model: AU012-TPA3116D2-120Wx2

Binding: Electronics

Item Condition: New
