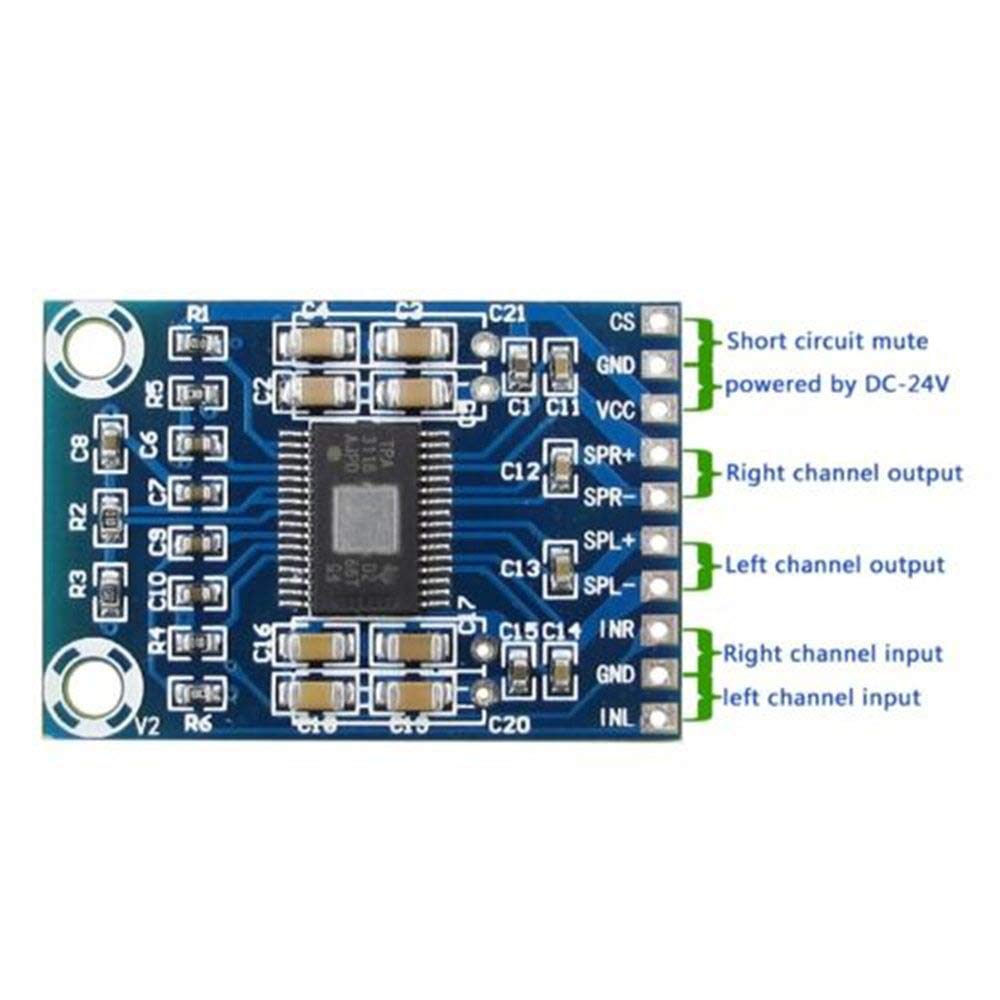

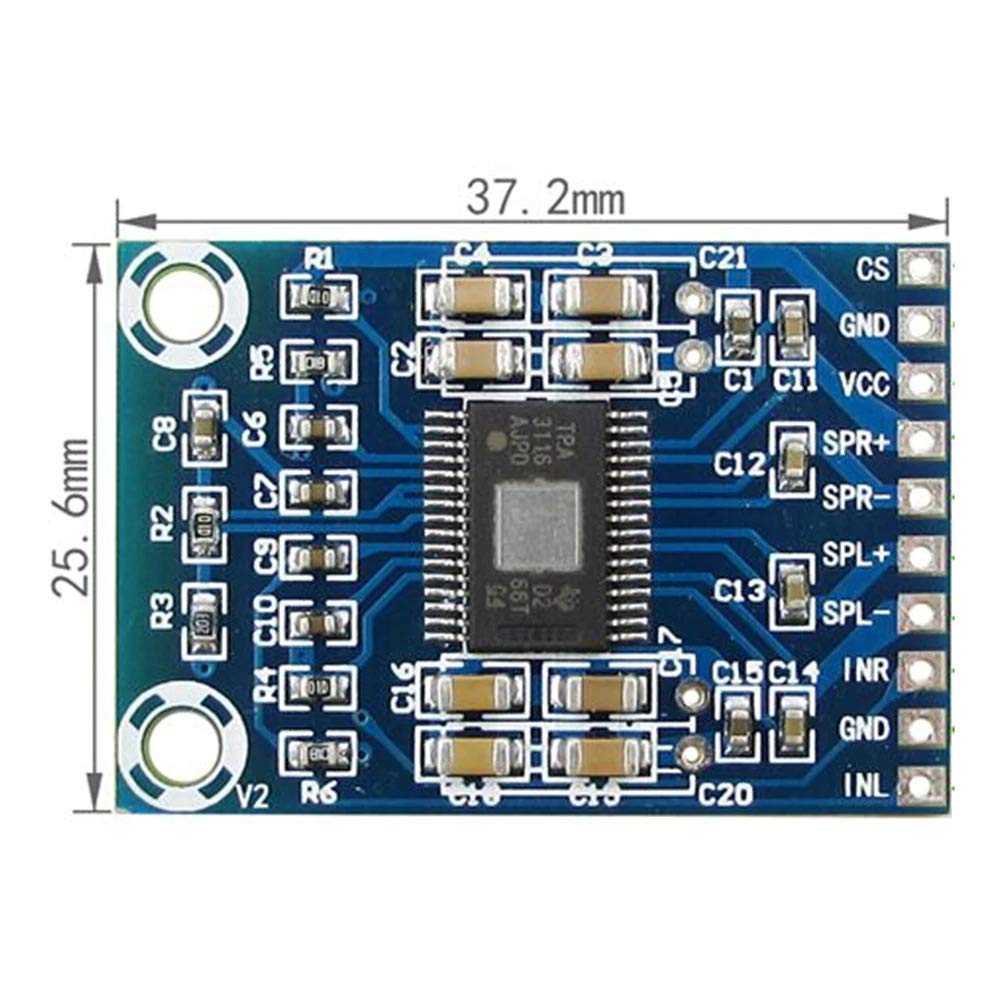

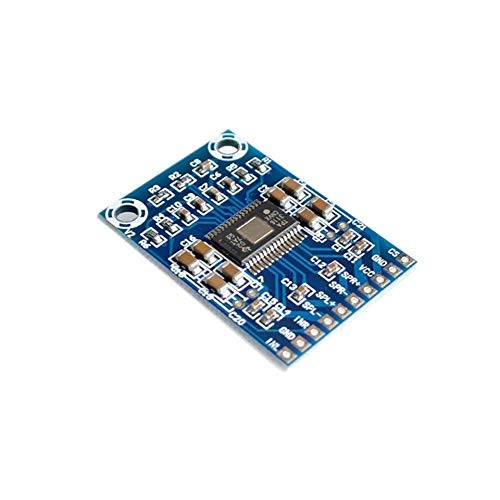

CentIoT - TPA3116 2 * 50W Ultra-Thin 2 Channels Each 50W Dual channel stereo mini Class D Digital Audio Power Amplifier Board

Brand: CentIoT

Features:

• Dual Channel 50W per Channel - Dual-panel wiring, properly solve the crosstalk between the ground potential balance and channel wiring
• Unique with LC filter Class D digital power board, and can be used directly to the computer's USB powered.
• Power supply: DC 12-24V, Recommended voltage: 12 V, Quiescent current: 20 mA, Rated output power: 50 W +50 W (8)
• Excellent noise suppression in the case is not connected to the input audio, the ear close to the speaker can not hear any noise
• Frequency response: 20Hz to 50KHz; High power class D digital amplifier board Using TPA3116 chip

PartNumber: AU013-TPA3116D2-50WX2-THIN

Release Date: 15-05-2019

Details: Dual channel stereo output 120 w + 120 w power Class D Works with 12v to 26V (recommended 24V) power supply High amplification efficiency 85% can directly drive 4 Ω/8 Ω small speakers to medium speakers. Good sound quality & noise suppression Unique with LC filter comes with switch Potentiometer,can adjust the volume individually on each channel

EAN: 4604046157948

Model: AU013-TPA3116D2-50WX2-THIN

Binding: Electronics

Item Condition: New
