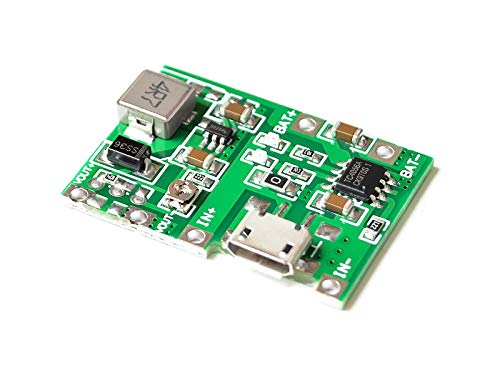

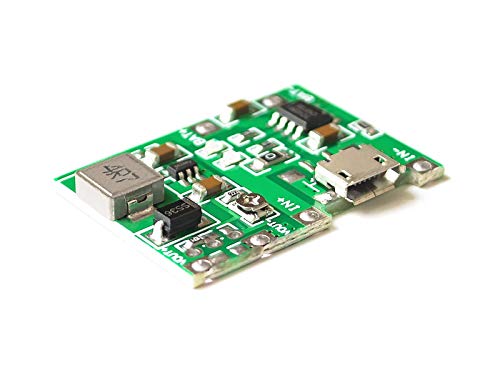

CentIoT - TP4056 DC-DC Step Up Boost Module 3.7V to 27V Continuously adjustable - Lithium Li-ion 18650 3.7V 4.2V Battery Charger Board

Brand: CentIoT

Features:

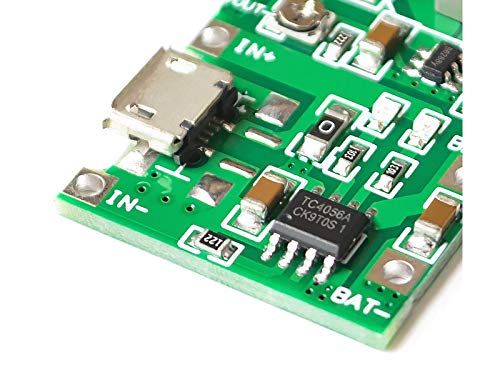

• Module based on :TP4056; The module can manage battery charging and discharging, and also has built in boost converter to boost the voltage to match load conditions
• Charging voltage: 4.2V DC; Charging current: Max. 1A; Discharging current: Max. 2A (at 5V); Power Rating: 10W
• Input voltage: 4.5-8V DC
• Output voltage: 4.3-27V DC (Continuously adjustable)

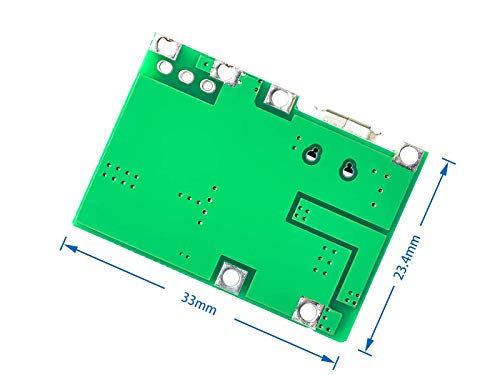

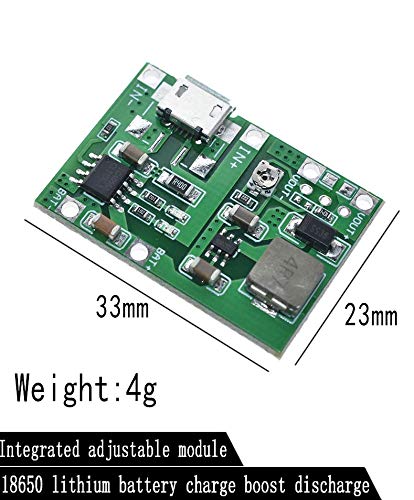

• Size: 3.3x2.3cm/1.3x0.91"

PartNumber: BM075-TP4056-BOOST

Release Date: 07-05-2020

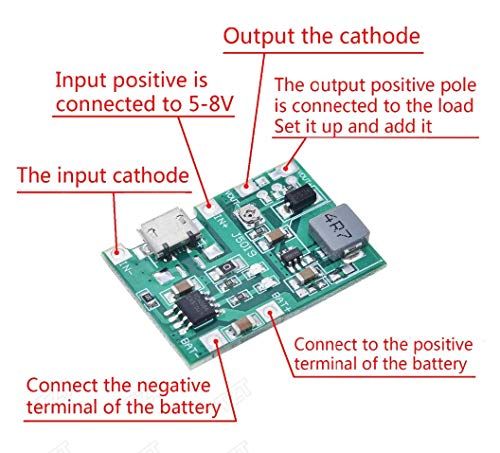

Details: Micro USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, And still retains the input voltage wiring pads, can be very convenient DIY. It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge and discharge protection. Support charge discharge over current protection; Supports simultaneous charging and discharging Specification: 1. Charge cutoff voltage: DC4.2V1% 2. Charging mode: linear charge 3. Working environment temperature: -20-85 degrees Celsius 4. For example: VIN+Port input 5V solar panels, BAT+port can output 4.2V to charge 3.7V 18650 battery 5. Note: The OUT+Port can output an adjustable voltage.

UPC: 679043306716

EAN: 0679043306716

Model: BM075-TP4056-BOOST

Binding: Electronics

Item Condition: New
