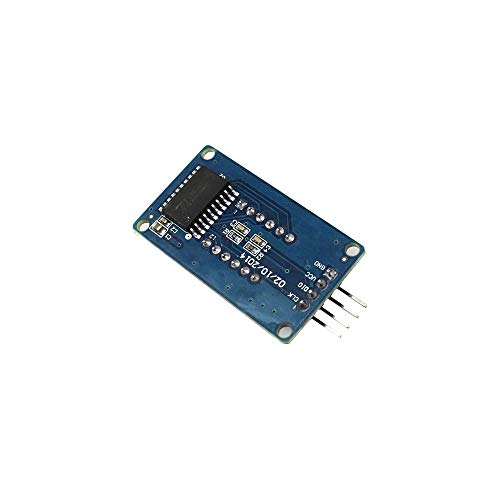

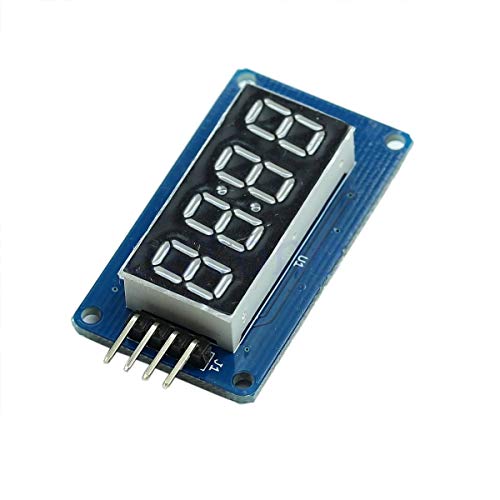

CentIoT - TM1637 4 Bits Digital Tube LED Display Module With Clock Display

Brand: CentIoT

Features:

• Driver Chip: MAX7219
• Input Voltage: 3.7 to 5.3 V
• Input Current: 30 mA
• Display Dimensions: 42x24x12 (LxWxH) mm
• Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination.

PartNumber: AR085-TM1637-4BITS

Release Date: 22-04-2019

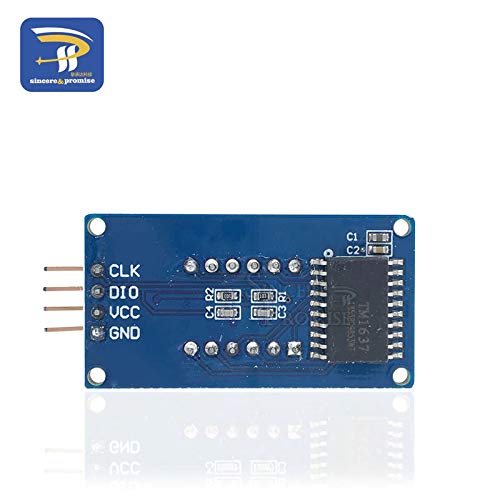

Details: TheTM1637 4 Bits Digital Tube LED Display Module is an affordable solution for displaying the output data of your Arduin project. Though the data displayed is restricted by numbers still it allows users to display some characters too like A, B, C etc. This 7 segment LED Display has 4 digits which are controlled byTM1637 Driver Chip. It requires only two connections to control thisTM1637 4 Bits Digital Tube LED Display Module.Also thanks to the I2C Bus you can control it using only 2 wires, leaving more pins available on your MicroController to connect other things. The module is a 12-foot clock with four common anode tube (0.36 inch) display module for driver IC TM1637, only two signal lines can make the MCU control four 7-segment digital tubes. There are several modules using thisTM1637 chip to form a 4 digit numerical display module. TM1637 has also keyboard input capability but is not used in this module. Pinout Description : 1. LED Display module to Arduino 2. GND – GND 3. Vcc – 5V 4. DIO – D2 5. CLK – D3 Features : 1. Ease to use. 2. Ease of multiplexing. 3. Can use as a 4 digit display unit. 4. Can use as a clock display. 5. DIY clock project. 6. 4 digit display unit. 7. Electrical/Electronic projects. 8. The counter project using 7 segment display. 9. 4 M2 screws positioning holes for easy installation

EAN: 4604046157238

Model: AR085-TM1637-4BITS

Binding: Electronics

Item Condition: New
