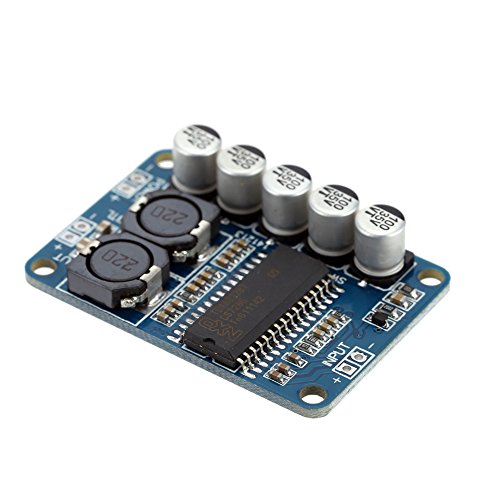

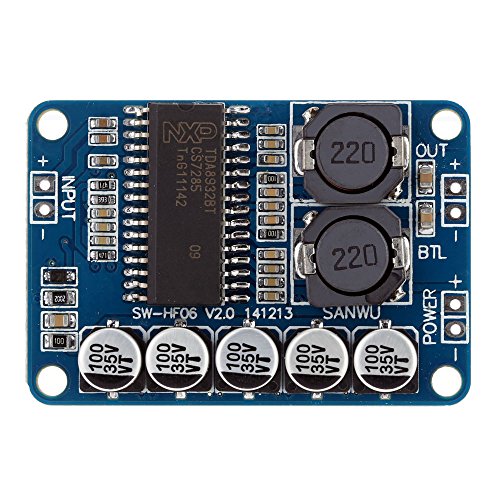

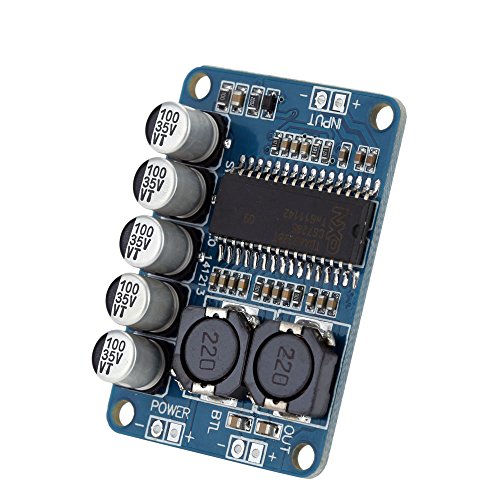

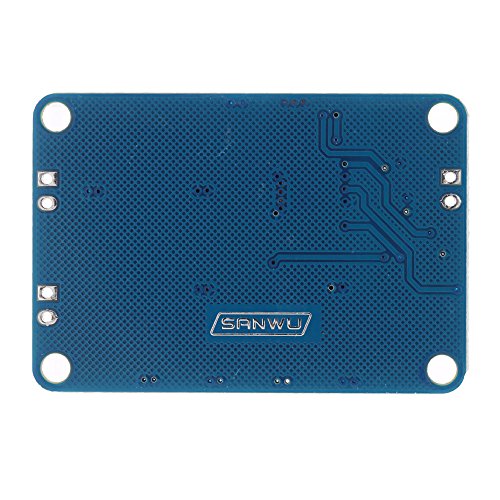

CentIoT - TDA8932 35W 24V Mono Single Channel Mini Class D Digital Audio Power Amplifier Board

Brand: CentIoT

Color: blue

Features:

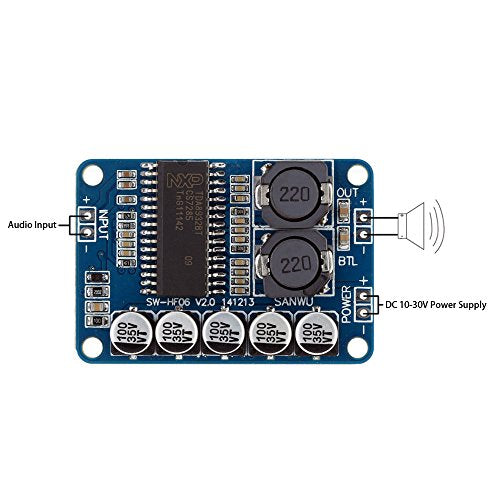

• Supply voltage: DC 10-30V, Recommended use voltage 24V Output 2A Power Supply
• Output power: 1 x35w (mono, stereo need 2pcs)
• Signal to noise ratio: 100 db
• Recommend speaker impedance: 8 ohm is best (4 ohm 6 ohms can also be used)
• Signal to noise ratio: 100 db; Size: 45 * 31mm / 1.77 * 1.22in

PartNumber: AU014-MONO-TDA8932-35W

Release Date: 17-05-2019

Details: The board uses a high-performance digital amplifier TDA8932 chip, a small size, high efficiency, high power, good sound quality, without additional installation of radiator, very suitable for the transformation of active speakers, electro-acoustic project implementation, product development and other audio applications.

UPC: 618020771031

EAN: 0618020771031

Model: AU014-MONO-TDA8932-35W

Binding: Electronics

Item Condition: New
