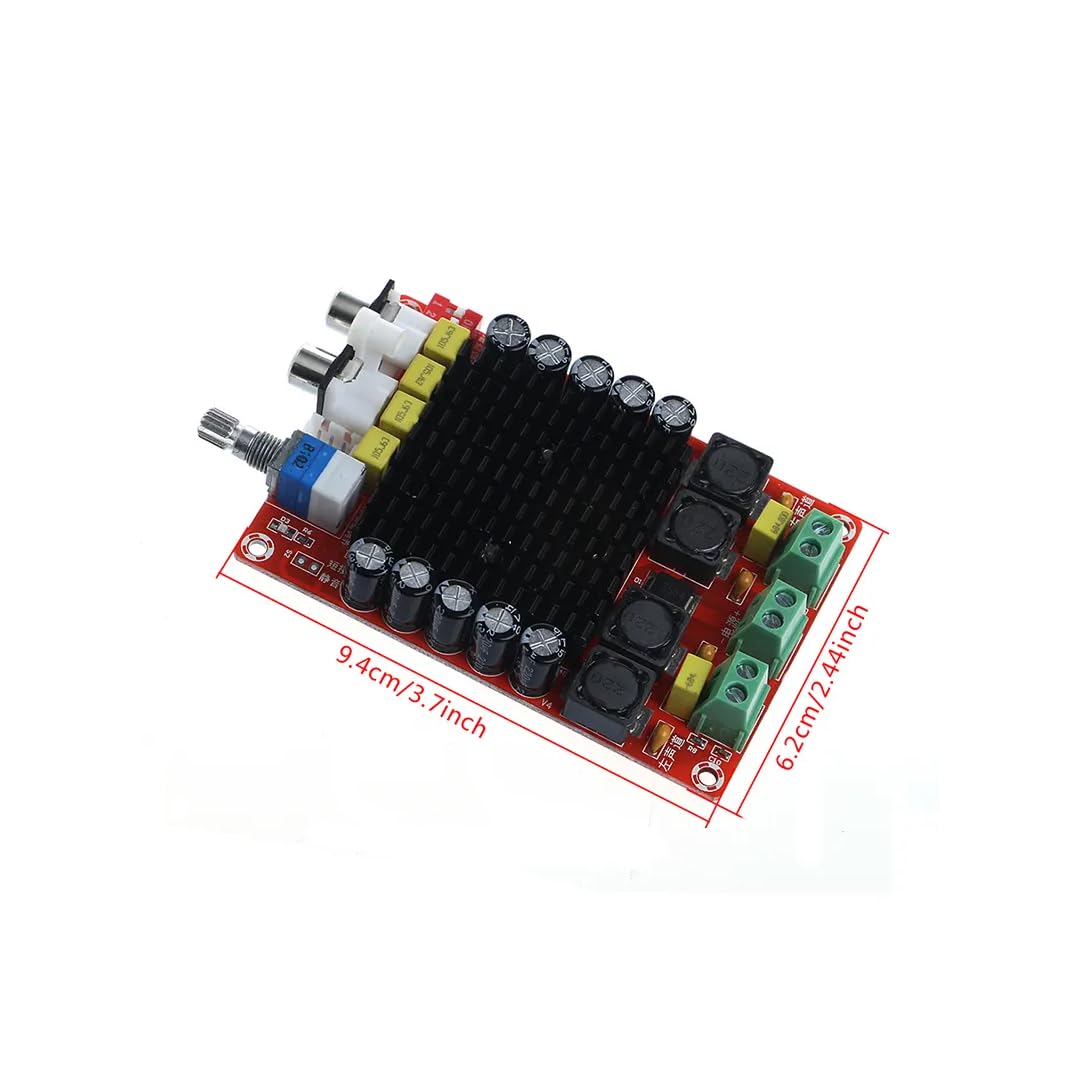

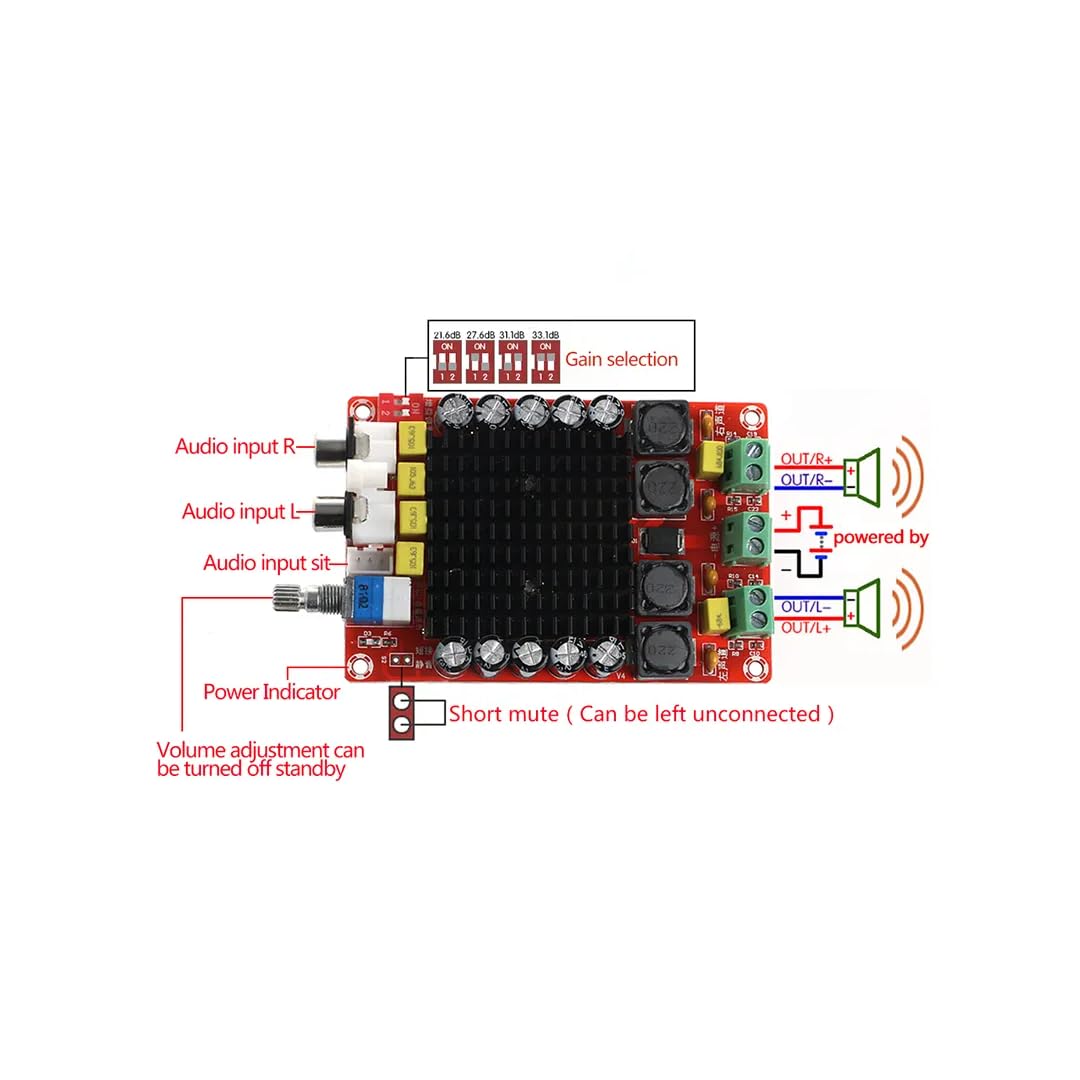

CentIoT - TDA7498E 100Wx2 Dual Channel Stereo Amplifier board

Brand: CentIoT

Features:

• Amplifier chip: TDA7498; Harmonic distortion:Po=1W/0.05%; Frequency response range:18-100KHZ; Switching frequency:360KHz; Signal to noise ratio:110db
• Output power: 100w+100w, VCC+32V,RL=4ohm,THD=10%;
• Channel Type: 2.0 Stereo; Use additional heatsink and fan;
• Power input: 14-32v signal power supply, Recommended DC voltage 24V, current above 10A
• Frequency response: 20Hz-20KHz; Power efficiency > 90%
• Match speakers: 4-8Ω, 100-200W, 4-12 inch woofer; 8ohms recommended

PartNumber: AU086-TDA7498E-2X100W

Model: AU086-TDA7498E-2X100W

Item Condition: New
