Description
Brand: CentIoT
Features:
- IC: TDA7294, audio class AB amplifier in Hi-Fi field applications (for use with Home Stereo, self powered loudspeakers, Topclass TV)
- Durable Components: Features high-quality electrolytic capacitors and inductors for long-lasting performance.
- Power Output: 85W * 1 undistorted rated power, peak power 100W
- Power Supply: 12-36V AC toroidal transformer, recommended to use dual 32V ring cattle

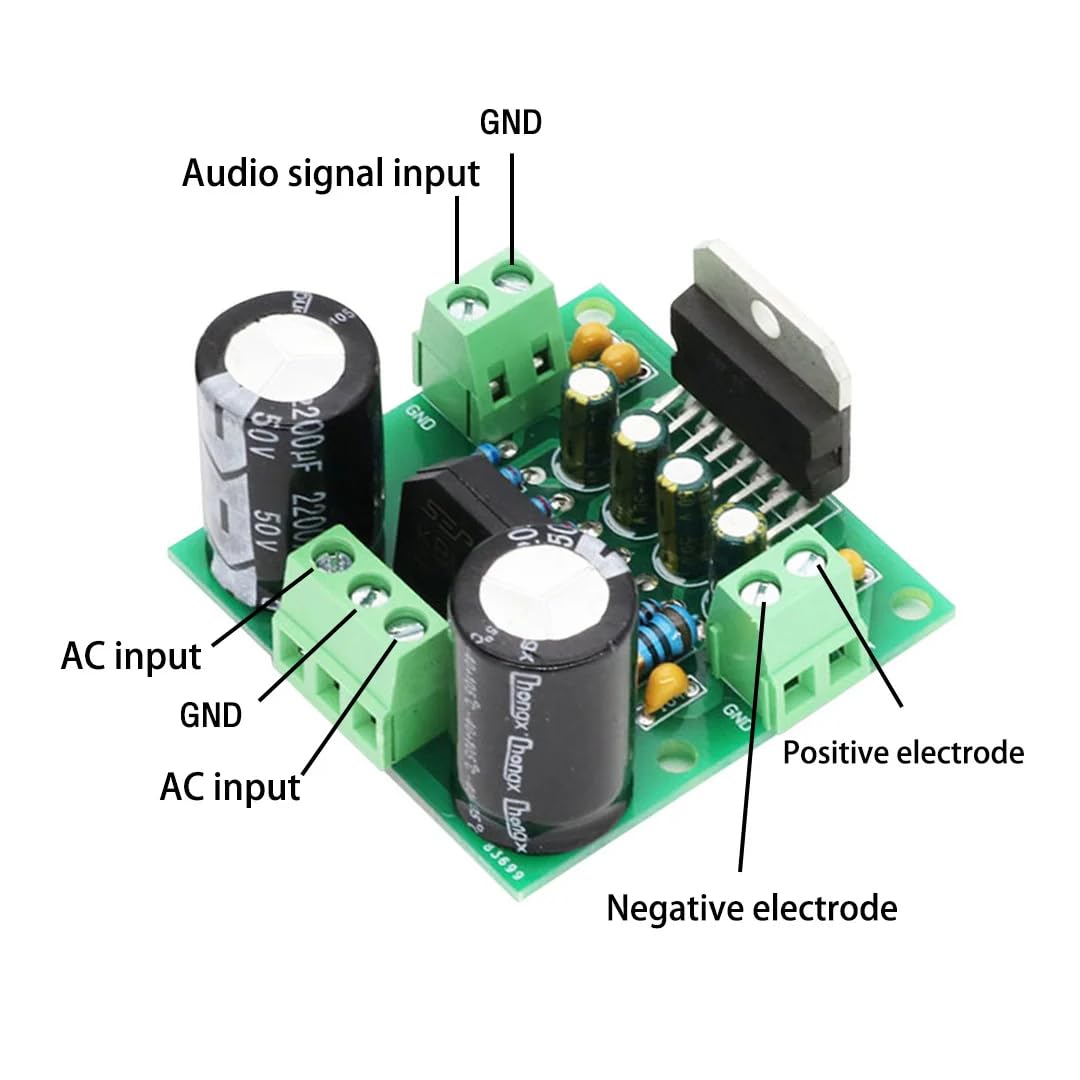

- Easy Integration: Screw terminals allow for quick and secure connection of wires or leads.
PartNumber: TDA7294
Details: Advantages: 1. Original IC TDA7294 2. The product is made of high-quality materials components 3. The product performance is stable and reliable, and can easily drive speakers of over 100W 4. The product is very suitable for DIY enthusiasts 5. High fidelity, mono amplifier board Product parameters: The filtering adopts a voltage withstand of 50V and a capacity of 2200uf large electrolytic capacitor Power supply voltage: dual 12-36V ring cattle, recommended to use dual 32V ring cattle Output power: 85W * 1 undistorted rated power, peak power 100W Horn impedance: 4-8 ohms Product precautions: Be sure to install a radiator, otherwise it will heat up seriously and cause burning or explosion of the machine! It is necessary to use a 3-wire transformer, both 12 and 32 can be used, and the heat sink must be attached by oneself. Do not use DC and battery, and it will damage the module. The module is powered by 12 to 32V AC power supply
Model: TDA7294
Item Condition: New
