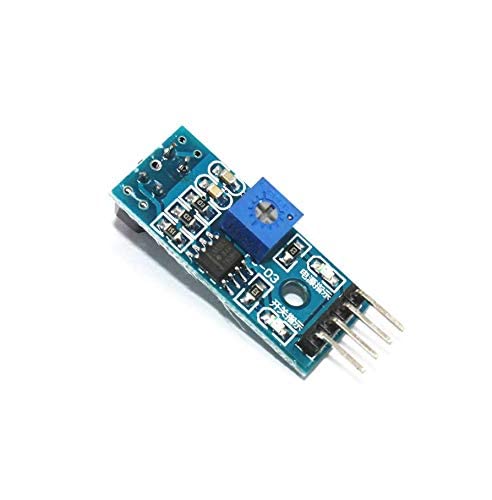

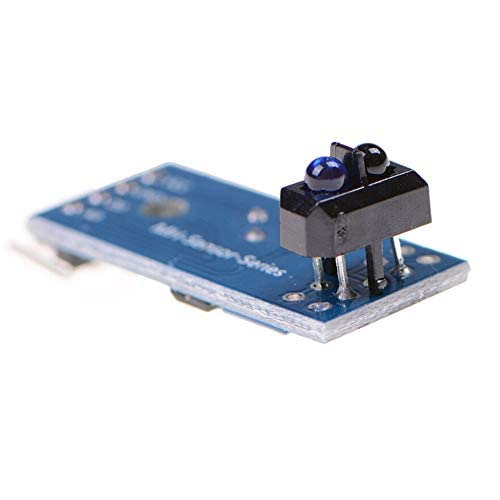

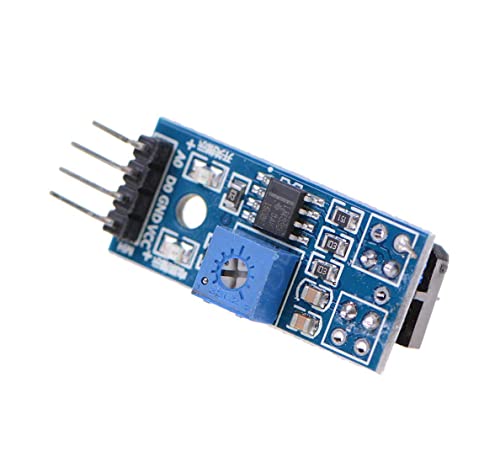

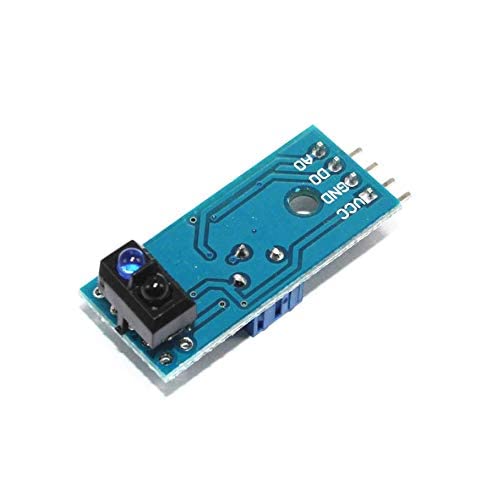

CentIoT - TCRT5000 Infrared Sensor Switch Line Track Sensor Module - Blue

Brand: CentIoT

Color: Black

Features:

• Package type: PCB Mounted with LM393 comparator; Detector type: phototransistor Peak operating distance: 2.5 mm Operating range within > 20 % relative collector current: 0.2 mm to 15 mm
• Typical output current under test: IC = 1 mA Daylight blocking filter Emitter wavelength: 950 nm Lead (Pb)-free soldering released
• INPUT (EMITTER): Reverse voltage VR 5 V; Forward current IF 60 mA; Forward surge current tp ≤ 10 µs IFSM 3 A; Power dissipation Tamb ≤ 25 °C PV 100 mW; Junction temperature Tj 100 °C
• OUTPUT (DETECTOR): Collector emitter voltage VCEO 70 V; Emitter collector voltage VECO 5 V; Collector current IC 100 mA; Power dissipation Tamb ≤ 55 °C PV 100 mW; Junction temperature Tj 100 °C
• SENSOR: Total power dissipation Tamb ≤ 25 °C Ptot 200 mW; Ambient temperature range Tamb - 25 to + 85 °C; Storage temperature range Tstg - 25 to + 100 °C; Soldering temperature 2 mm from case, t ≤ 10 s Tsd 260 °C

PartNumber: TCRT5000

Release Date: 31-05-2020

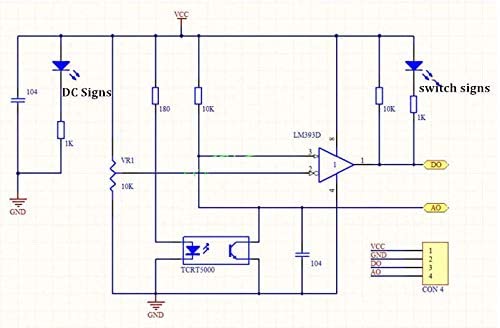

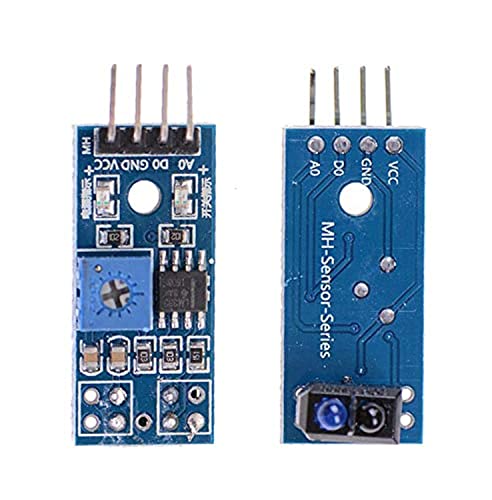

Details: TCRT5000 infrared sensor emits infrared emitting diode continuously when no infrared rays emitted or reflected back is reflected back but the strength is not large enough, the phototransistor has been in the off state, and the output terminal of the module is high, indicating that the diode has been in the off state; in the object to be detected within the detection range, and the intensity of the reflected infrared rays is large enough, photo-transistor saturated, and the output terminal of the module is low, the indicator LED is lit. APPLICATIONS: 1. Position sensor for shaft encoder 2. Detection of reflective material such as paper 3. IBM cards, magnetic tapes etc. 4. Limit switch for mechanical motions in VCR 5. General purpose - wherever the space is limited 6. Automatic Hand Sanitizer 7. COVID sanitzation products How to connect : 1. VCC : DC input + (3-5V) 2. GND : DC input - 3. DO : TTL signal 4. AO : Analog output (different distance different output voltage ,in general ,this pin doesn't need to connect )

UPC: 679043312236

EAN: 0679043312236

Model: TCRT5000

Binding: Electronics

Item Condition: New
