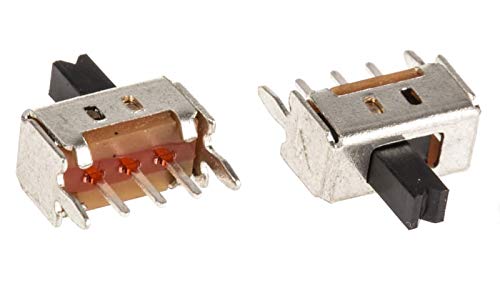

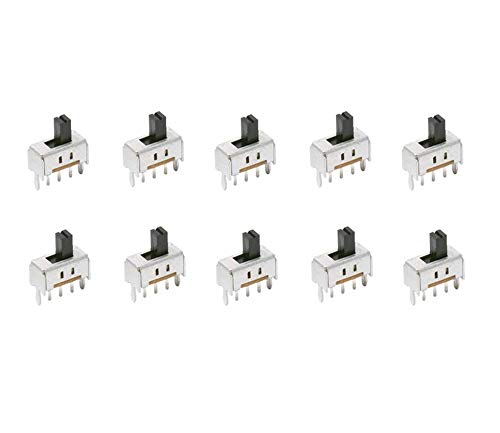

CentIoT - SS12D00G2 2 Position SPDT 1P2T 3 Pin PCB Panel Mini Vertical Slide Switch

Brand: CentIoT

Color: Black + Red

Features:

• Contact Type : 1P2T; Rating : DC 50V, 0.5A; Contacts Resistance : 30Mohm; Insulation Resistance : 100Mohm
• Minimum Load : DC 500V; Dielectric Strengths : AC 500V / 1 minute; Life Test : 10000 cycles/ minute;
• Knob Size : 3 x 3 x 8mm / 0.12' x 0.12' x 0.31'(L * W* H); Pitch : 3mm / 0.12';
• Main Body Size(not include Pins & Knob) : 12 x 6 x 5mm / 0.47' x 0.24' x 0.2'(L * W* H); Overall Size : 12 x 6 x 17mm / 0.47' x 0.24' x 0.67'(L * W* H);
• Mounting Bracket Mount/Through Hole; Material : Plastic & Metal

PartNumber: SW040-SLIDE-SS12D00G2

Details: The best way to turn on or off your application is by using this SS12D00G2 slide switch from CentIoT. This device has a maximum current rating of 0.1 A @ 12VDC. It has a SPDT configuration. This slide switch has a minimum operating temperature of -30 °C and a maximum of 70 °C. The SS12D00G2 slide switch has a PC pin termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum DC voltage rating is 12 VDC. This product is 8.6 mm long, 4.7 mm tall and 10.8 mm deep.

UPC: 679043312649

EAN: 0679043312649

Model: SW040-SLIDE-SS12D00G2

Item Condition: New
