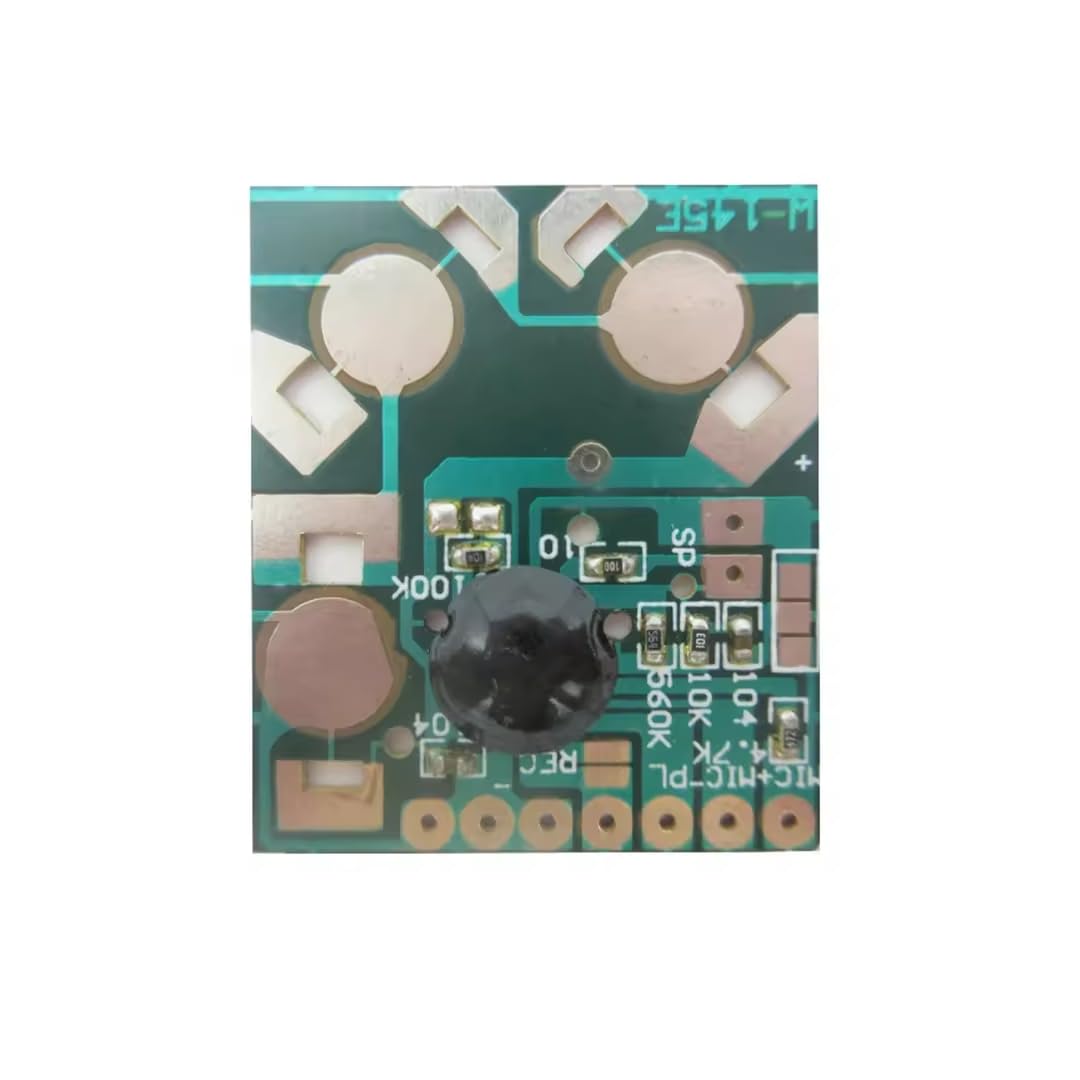

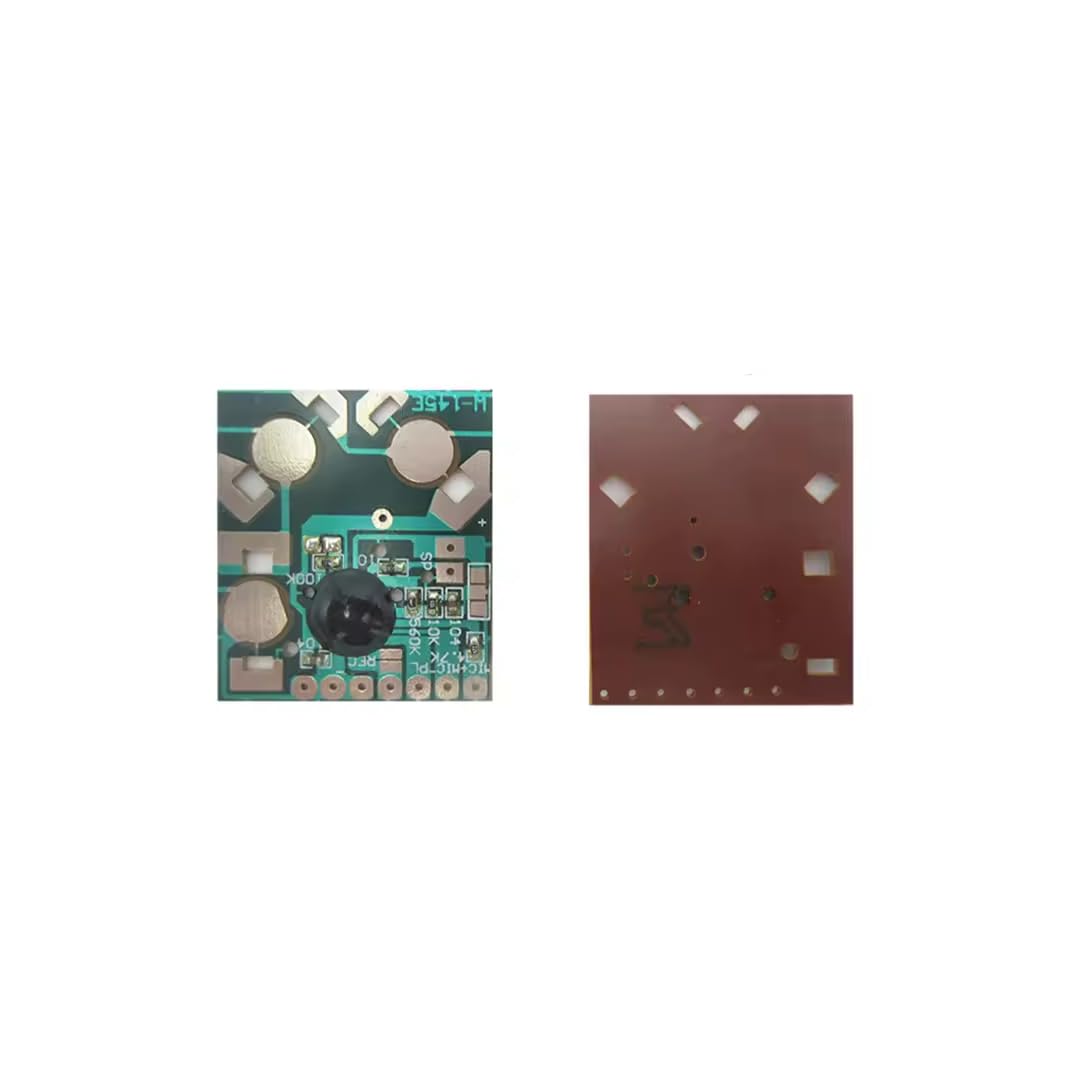

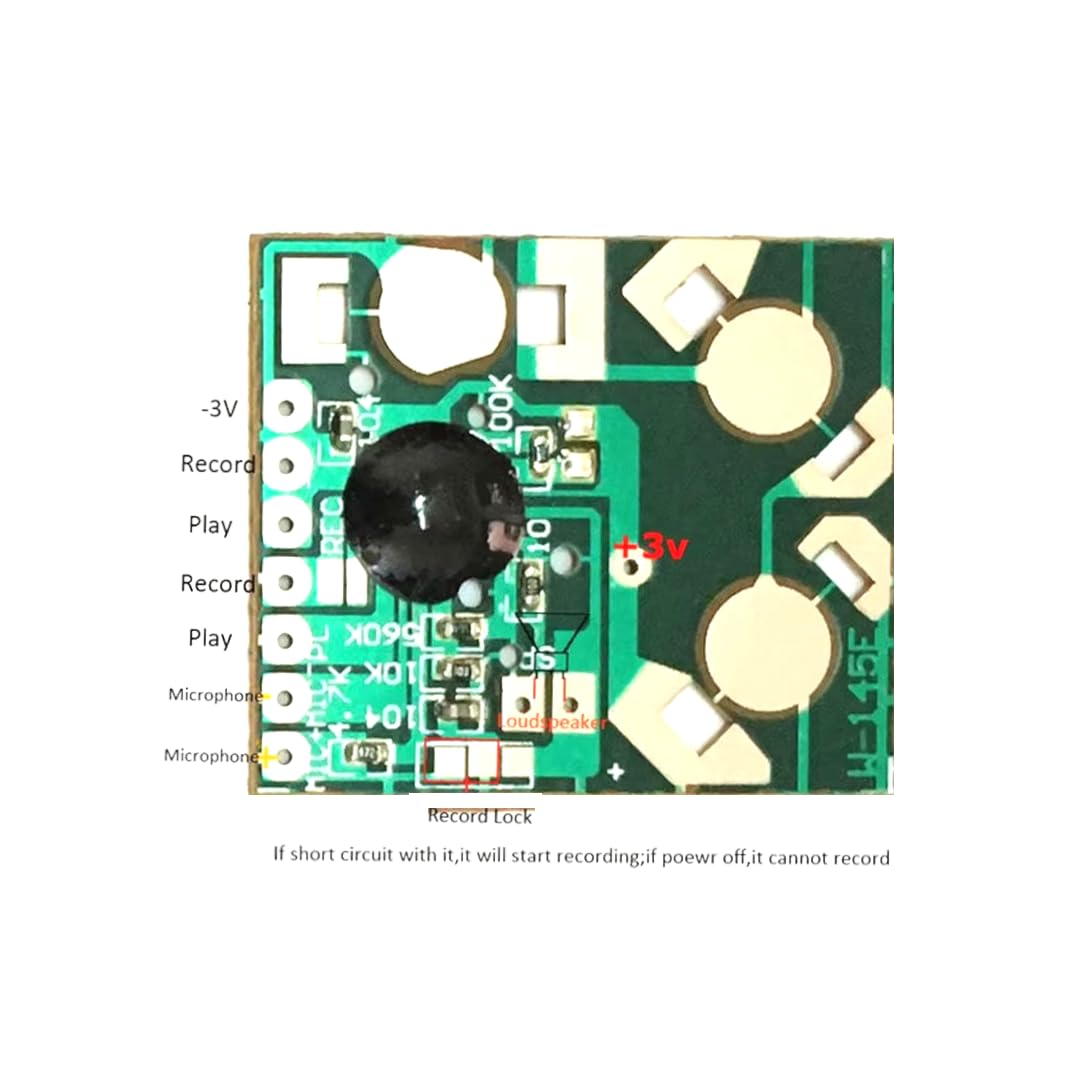

- CentIoT - Sound Recordable Chip IC - Voice Music Talking Recorder Module - 8ohm Speaker - for Electronic Gift Greeting Card - ISD1806B 6 Seconds
Product Categories
- Development Boards(0)
- Audio and Video(22)
- Accessories Tools Cases (0)
- Connectors and Cables(0)
- Thermal Management(57)
- Motors And Drivers(15)
-
Wireless Communications(38)
- Top Brands
- (G)FSK Front-End Modules
- 2.4G Front-End Modules
- ASK Modules
- LoRa & LoRaWAN Modules
- LoRaWAN Gateway & Node
- BLE & GPS & 125kHz Wakeup Modules
- RF antennas
- 3D Pedometer Modules & Chips
- Transparent Wireless UART Modules
- Walkie Talkie & Wireless audio
- Wireless IO & 4-20mA Modules
- SENSOR MONITORING GATEWAY AND NODE
- Power Supply and Converters(21)
- Test, Measure and Inspect(0)
- All Categories ()
Featured product
Description
Brand: CentIoT
Features:
- CHIP: ISD1806B 6S; Zero-power message storage Eliminates battery backup circuits 100-year message retention (typical) 100,000 record cycles (typical) On-chip oscillator No algorithm development required
- Voltage: 3-4.5V; 0.5 µA standby current (typical)
- Driving Loudspeaker: 0.25-2W/8 ohm
- Easy-to-use single-chip, single-message voice record/playback solution
- Automatic power-down mode Enters standby mode immediately following a record or playback cycle On-chip 8Ω speaker driver
Format: Digital Sound
PartNumber: AU089-ISD1806-WBC

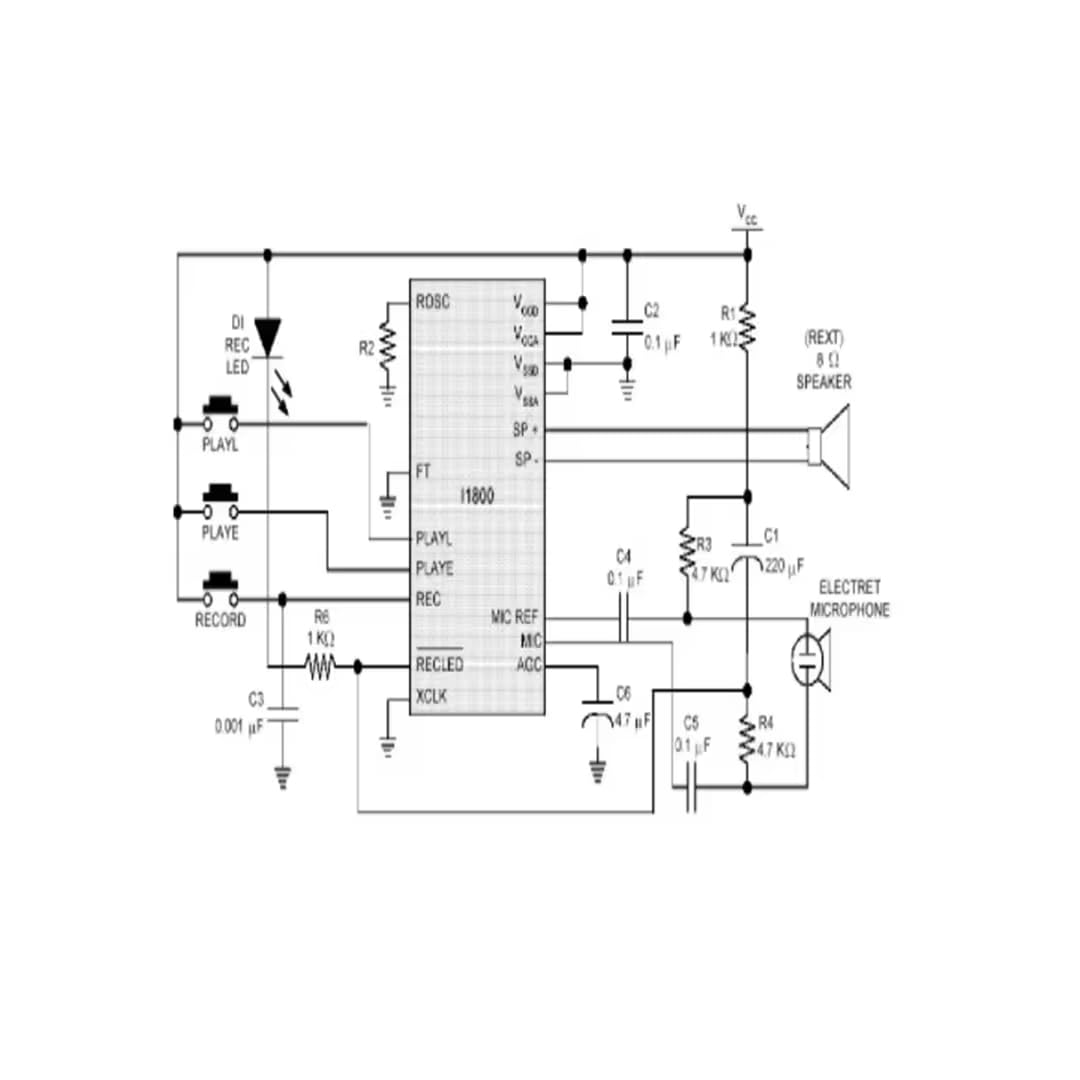

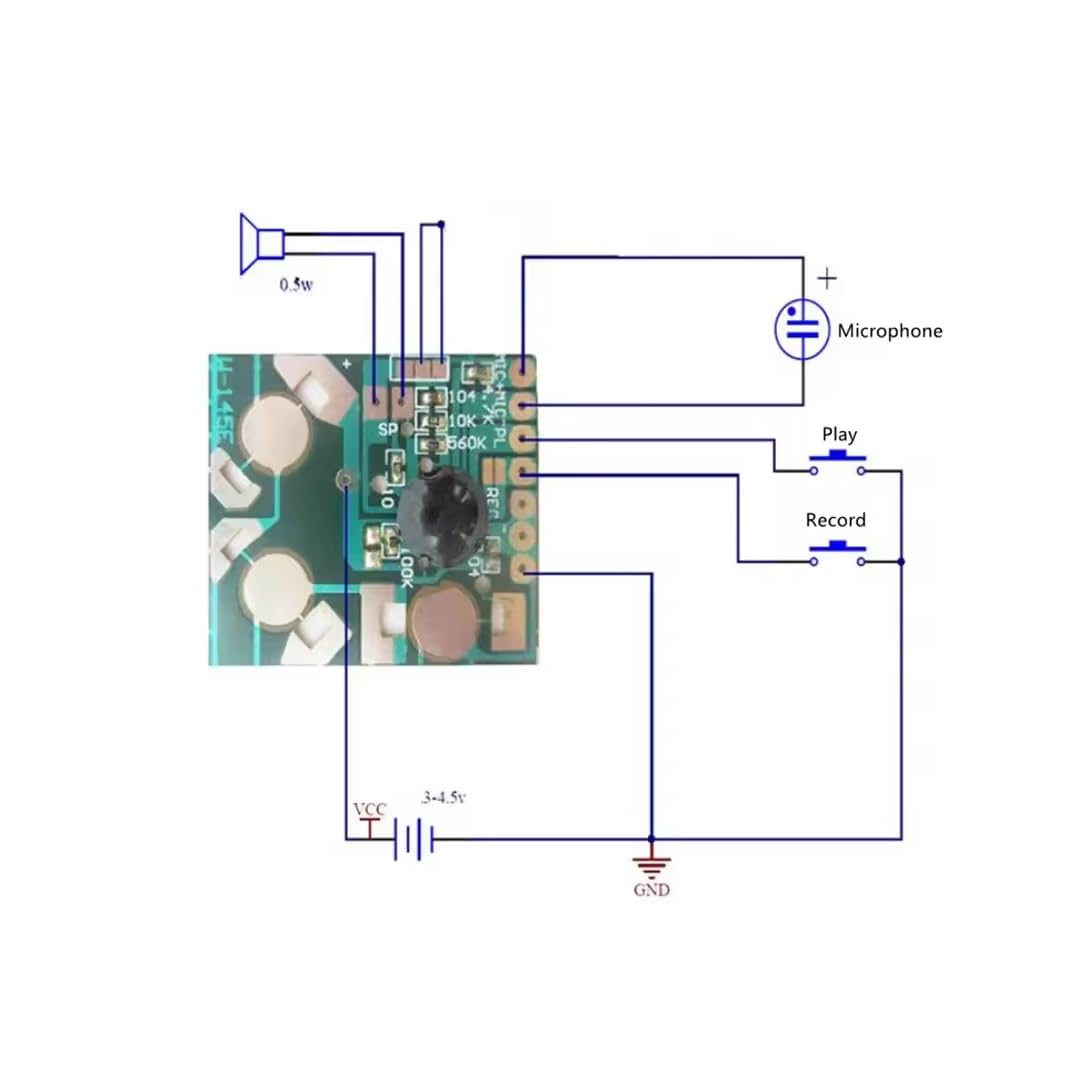

Details: ISD1800 provides high-quality, single chip, single-message, record/playback solution with user-selectable durations of 6 to 16 seconds. The CMOS devices include an on-chip oscillator (with external control) , microphone preamplifier, automatic gain control, anti-aliasing filter, multilevel storage array, smoothing filter, and speaker amplifier. A minimum record/playback subsystem can be configured with a microphone, a speaker, several passive components, two push buttons, and a power source. Recordings are stored in on-chip nonvolatile memory cells, providing zero-power message storage. Voice and audio signals are stored directly into memory in their natural form, providing high-quality, solid-state voice reproduction.
Model: AU089-ISD1806-WBC
Binding: Electronics
Item Condition: New
