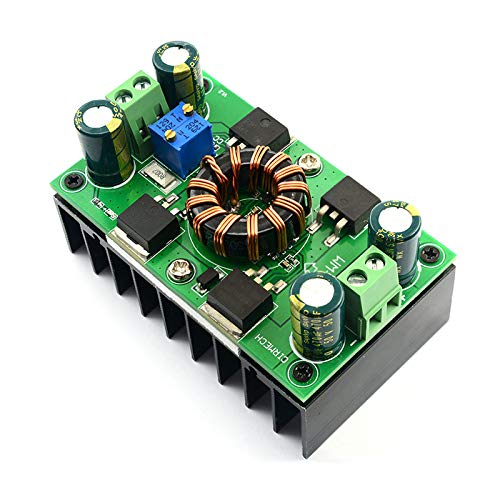

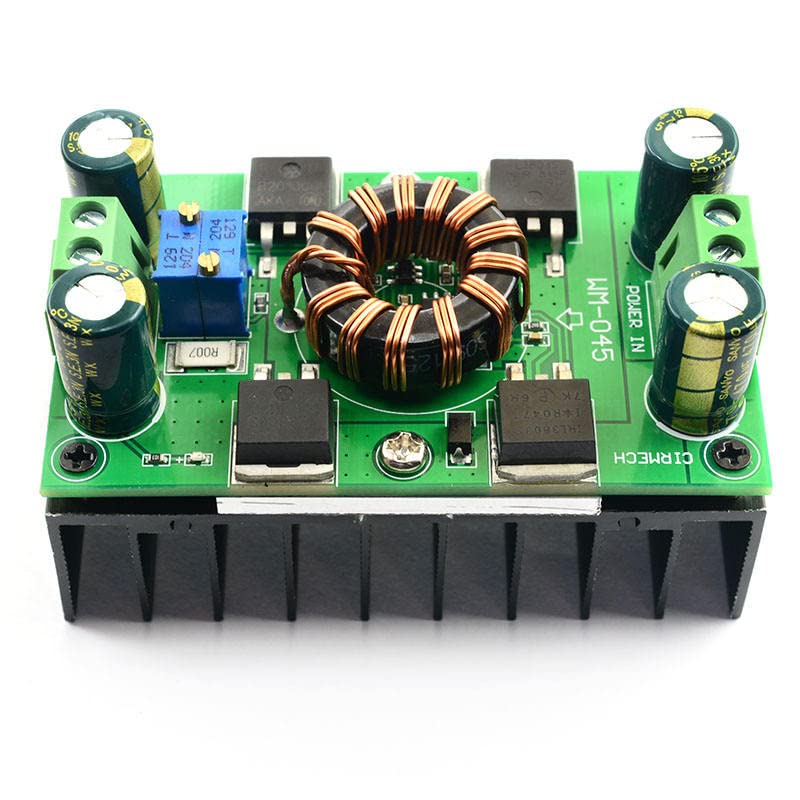

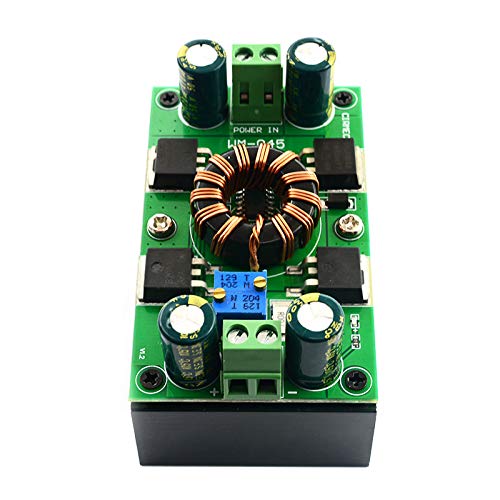

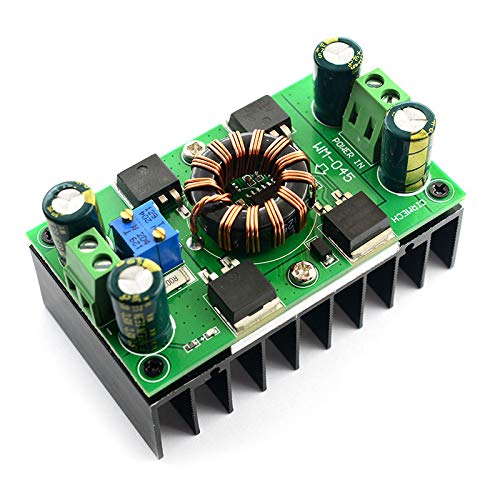

CentIoT - Solar charging module buck and boost Constant-voltage constant-current power module - 300W 10A 30V

Brand: CentIoT

Color: Red

Features:

• Non-isolated synchronous rectification constant voltage constant current automatic buck-boost module
• Input voltage: DC 5V-30V; Output voltage: DC 1. 25V-30V
• Current output: long time 8A recommended 5A maximum 10A
• Power conversion efficiency: 150W Continuous, maximum 300W
• Working frequency: comprehensive not less than 90%
• Protection function: short circuit, over current and over temperature
• Operating temperature: Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power)

PartNumber: DC125-10A-30V-BB-SLR

Details: Description Features: High quality USB port. Output voltage indicator (RED). The max output current 3A, long time use 2.1A, enough use. New design, 3 solid state ceramic capacitors (MLCC). Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94%. Flat copper inductor, improve conversion efficiency With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device. Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc. Input with reverse polarity protection diode, will not damage when input connect incorrect.

Model: DC125-10A-30V-BB-SLR

Item Condition: New
