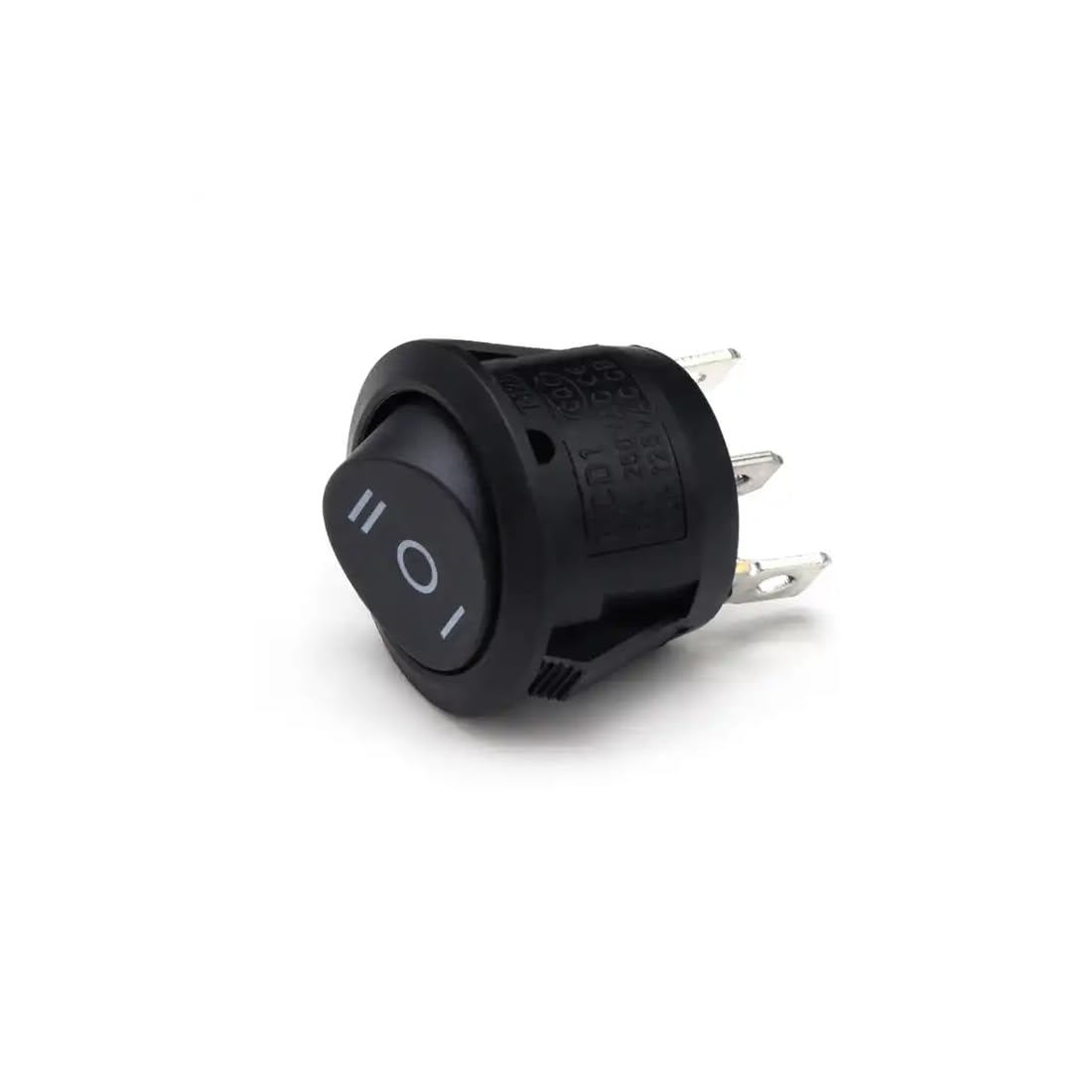

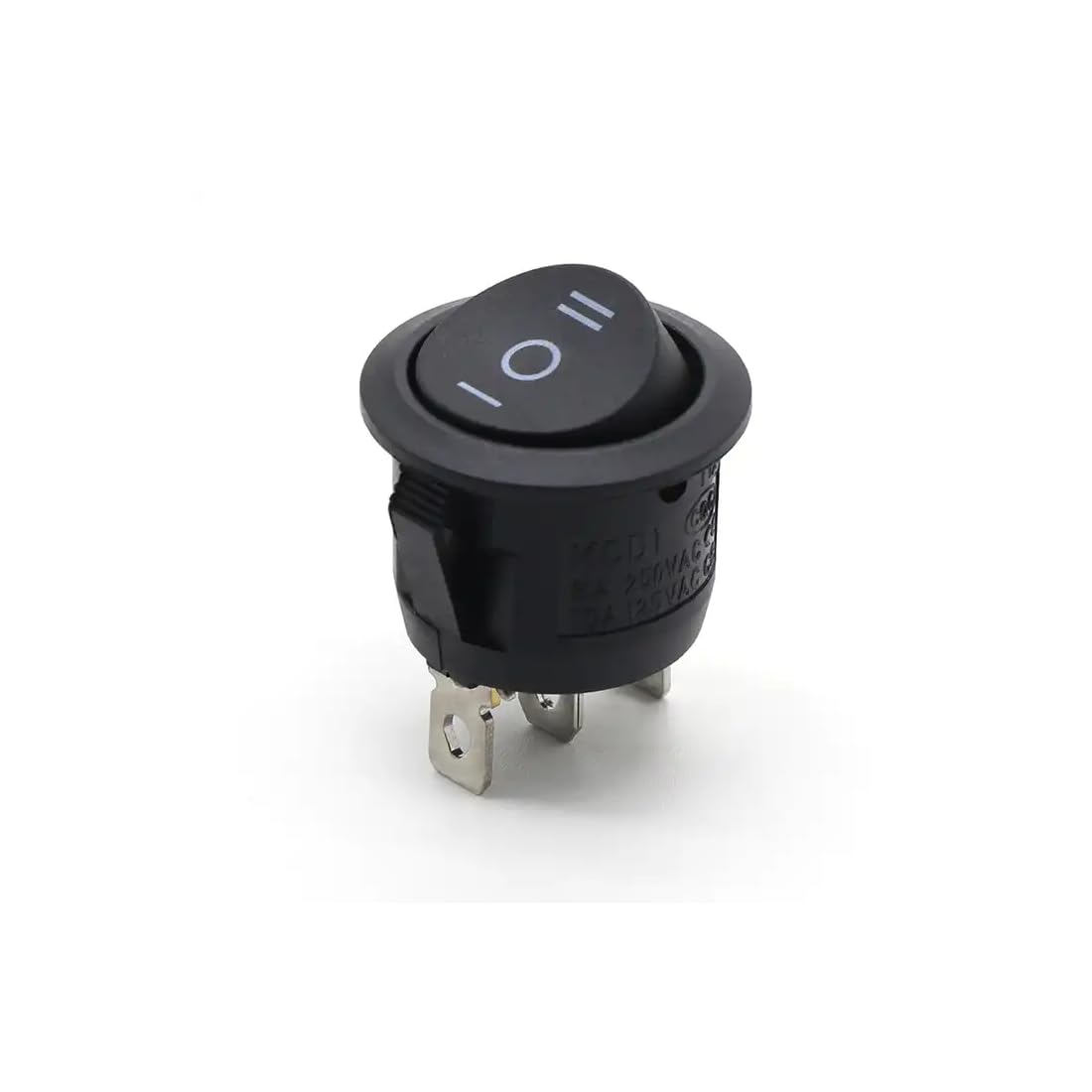

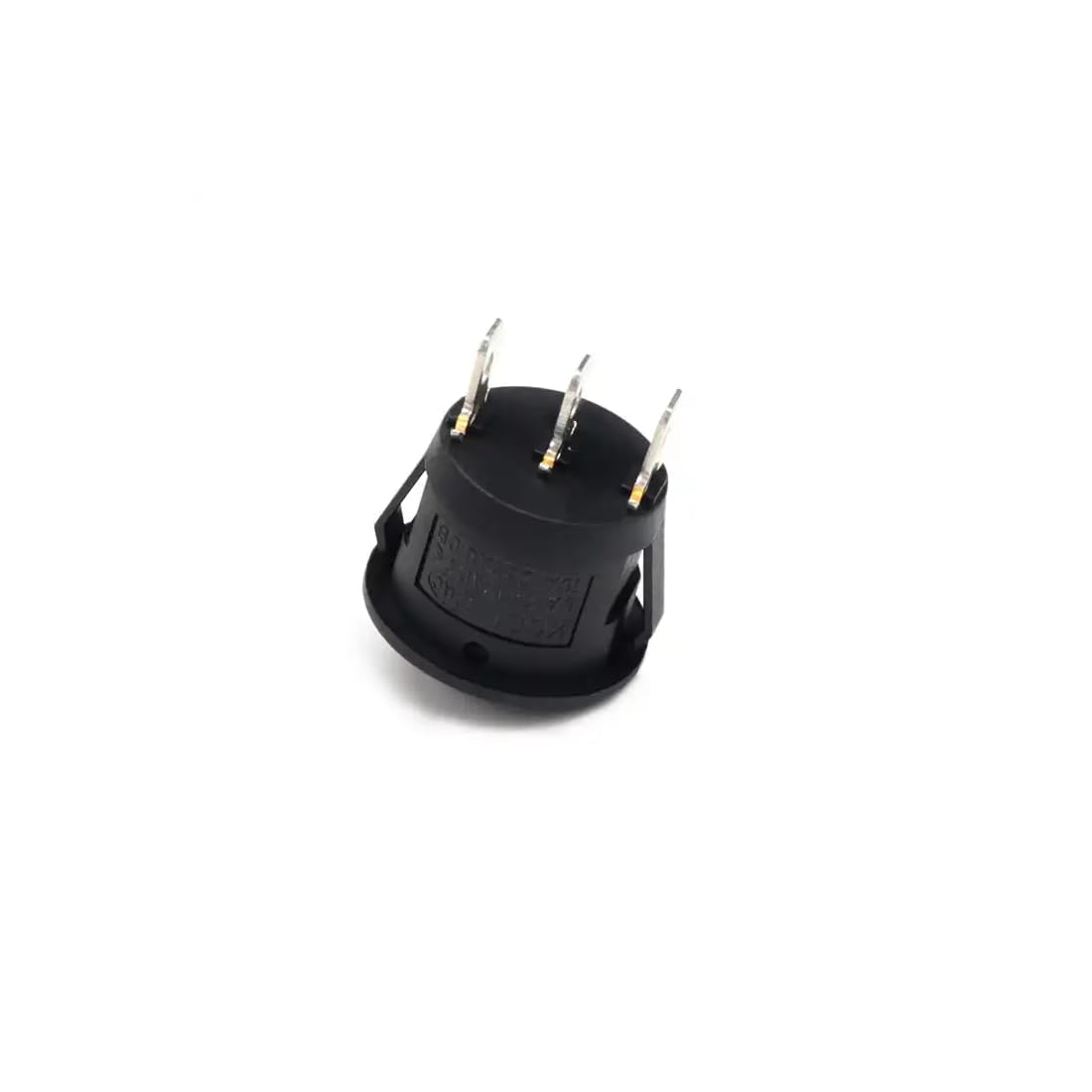

CentIoT - Round Rocker Switch - KCD1 Round bottom snap fit 250V 6A (SPDT ON-OFF-ON 3 Position, 250V 6A 3PIN, Black Button, Pack of 5)

Brand: CentIoT

Features:

• Switch rating: 6A 250VAC;10A 125VAC;16A 12VDC
• Terminal type: Blade Pin terminal
• Point resistance: Max50MΩ; Isolation resistance: ≥1000MΩ; Isolation intensity: 1500VAC，50Hz/60Hz:
• Mechanical life: More than 500000 times; Electrical life: More than 100000 times
• Panel thickness: 1~15mm: Operating pressure: Abou4N; Operation travel: About2mm

PartNumber: ROUND-ROCKER-KCD1

Details: Material Used: Base plastic:Nylon 66; Button: plastic; terminal Copper; Terminal surface treatment: Nickel plating; Contact: Ag or Composite silver; Spring: Steel Wire; Waterproof Material: PVC

Model: ROUND-ROCKER-KCD1

Item Condition: New
