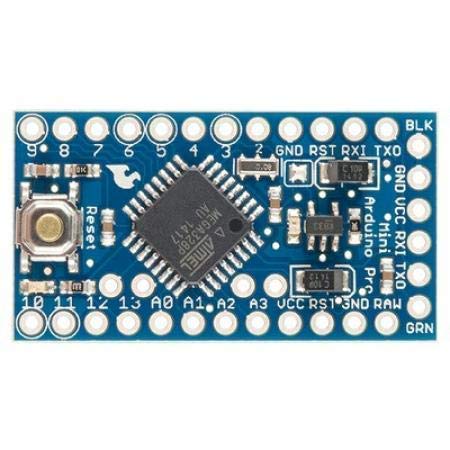

CentIoT - Pro Mini ATMega328P - 3.3V 8MHz

Author: 5V USB Mini B

Brand: CentIoT

Color: Blue

Features:

• Microcontroller ATmega328P
• Board Power Supply: 6 - 12 V
• Circuit Operating Voltage: 3.3V; Check the backside of board for voltage marking.
• To find the model, supply RAW pin with 6V-12V and measure using multimeter the VCC voltage (5V = 5V, 3.3V = 3.3V)
• Flash Memory: 32KOne GND pins to the GND of the power source and one GND pins to the GND of the multimeter (you can take any of the Arduin pins labeled with GND)B (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz USB to Serial Converter: CH340

PartNumber: AR080-PRO-MINI-3.3V-8MHz

Release Date: 13-10-2019

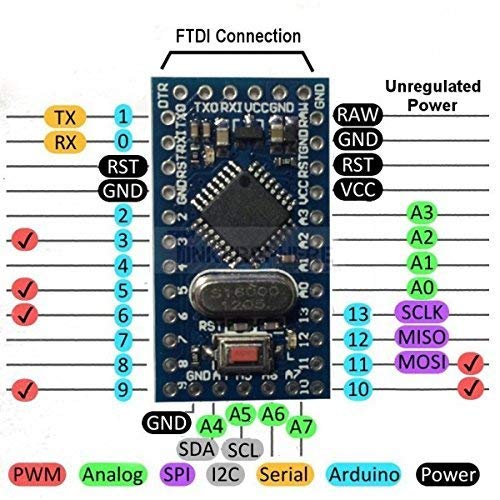

Details: Pro Mini board is more suitable for applications and installations where space is premium and projects are made as permanent set ups. This board is a 3.3 V version, powered by ATmega328. Power The Pro Mini can be powered with an FTDI cable or breakout board connected to its six pin header, or with a regulated 5V supply on the Vcc pin. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC. The power pins are as follows: RAW For supplying a raw voltage to the board. VCC The regulated 3.3 volt supply. GND Ground pins.

UPC: 679043314988

EAN: 0679043314988

Model: AR080-PRO-MINI-3.3V-8MHz

Binding: Electronics

Item Condition: New
