CentIoT - PJ392A-1 3Pin 3.5 MM Audio Jack Receptacle Gold Plated - Vertical Panel Mount Round Connector Female Socket

Brand: CentIoT

Color: Gold Plated Zinc Alloy

Features:

• 3.5MM Audio Jack Socket 3 Pole Black Stereo Solder Panel Mount Gold With Nuts Connector - Soldering type Panel or screw mount
• Materials: Tube & Pin both zinc alloy; Plastic is PBT (Black); Plating: Gold Plated
• Rating: 1A Contact Rating: 12V
• Salt Spray Test Time: 12 hours to 72 hours;

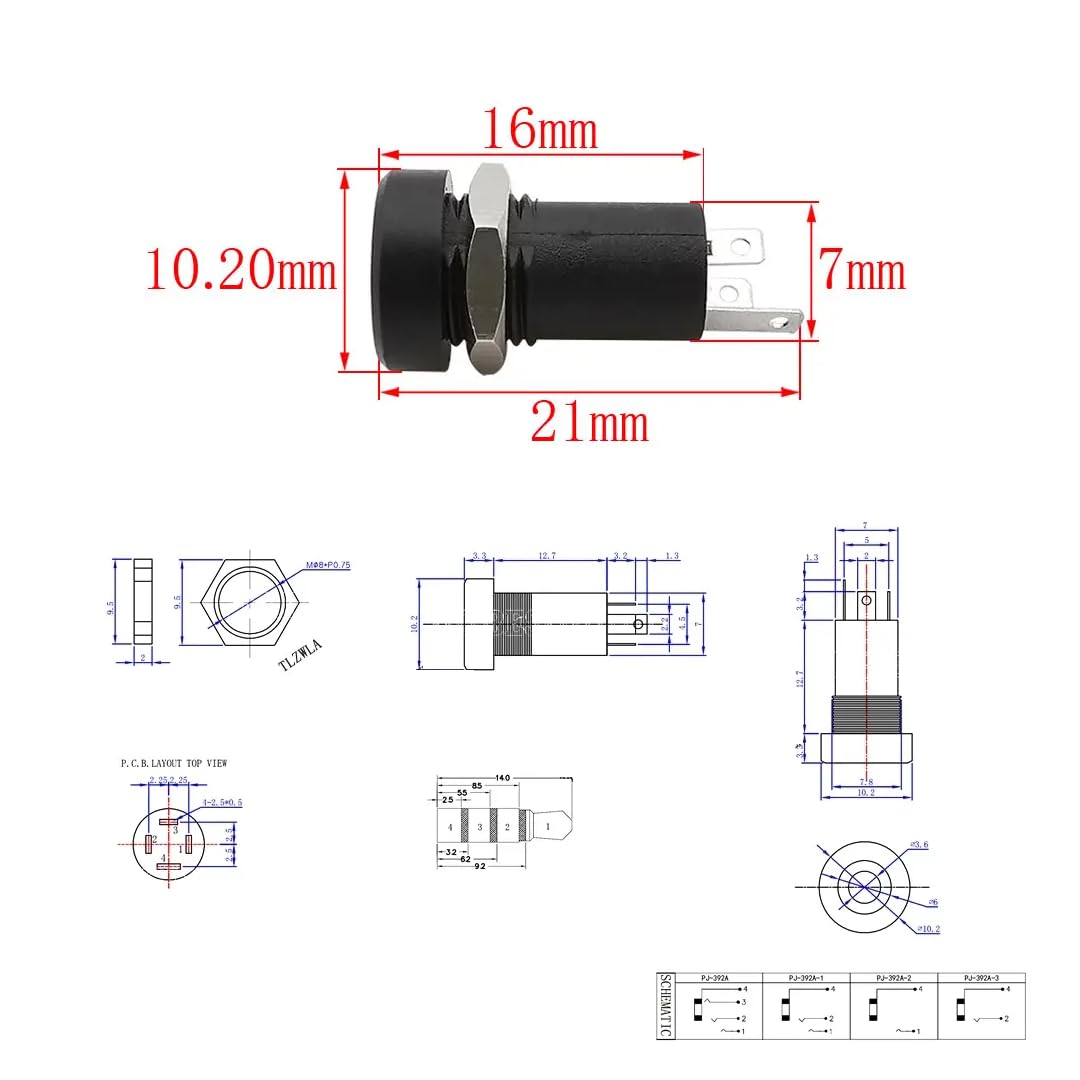

• Overall Length: 21mm; Outer Diameter:10.2mm; Panel cutout diameter: 7mm;
• INSERTION FORCE: 3-20N; LIFE: 5000 TIMES; CONTACT RESISTANCE: ≤ 0.03Ω; INSULATION RESISTANCE: ≥50MΩ

PartNumber: PJ392A-1

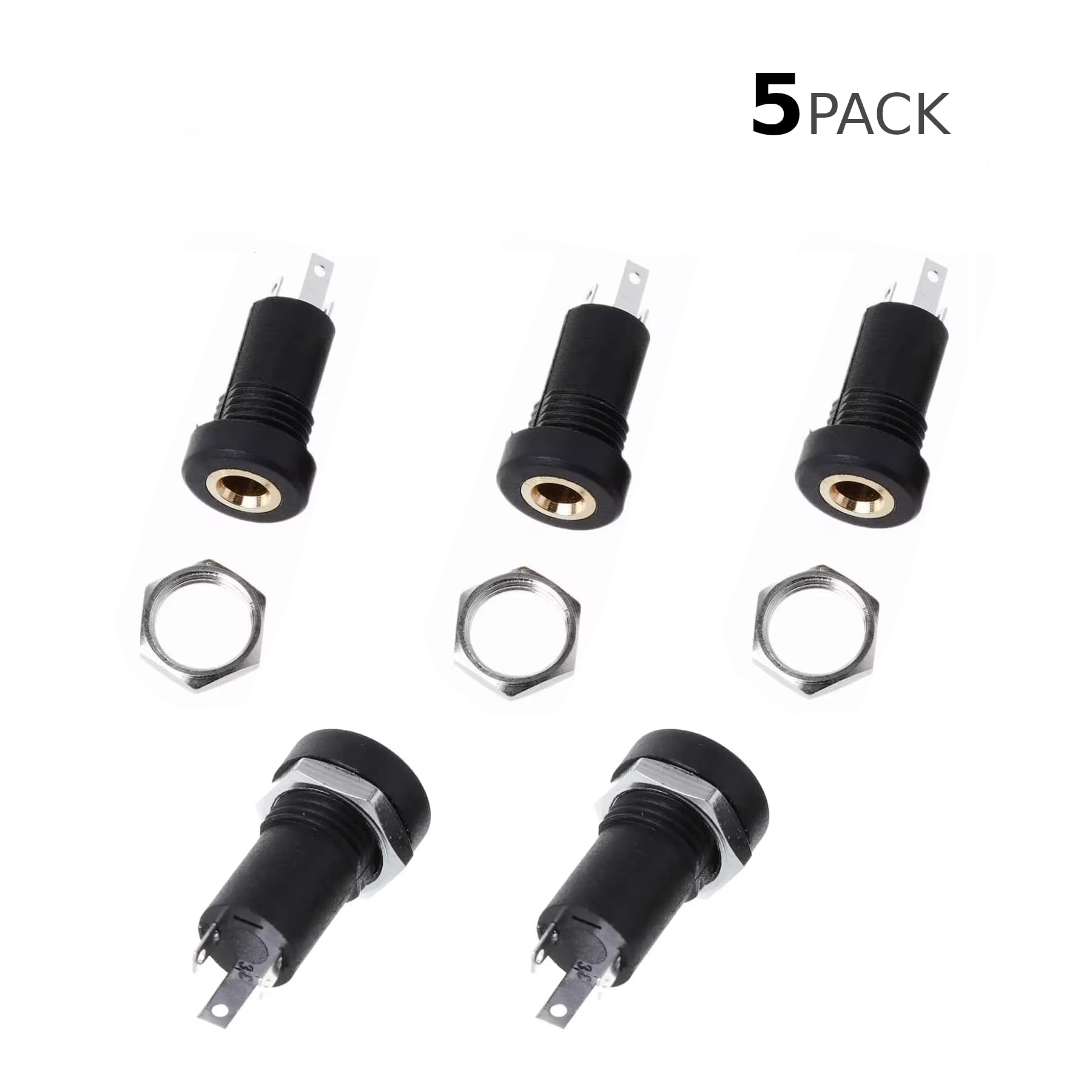

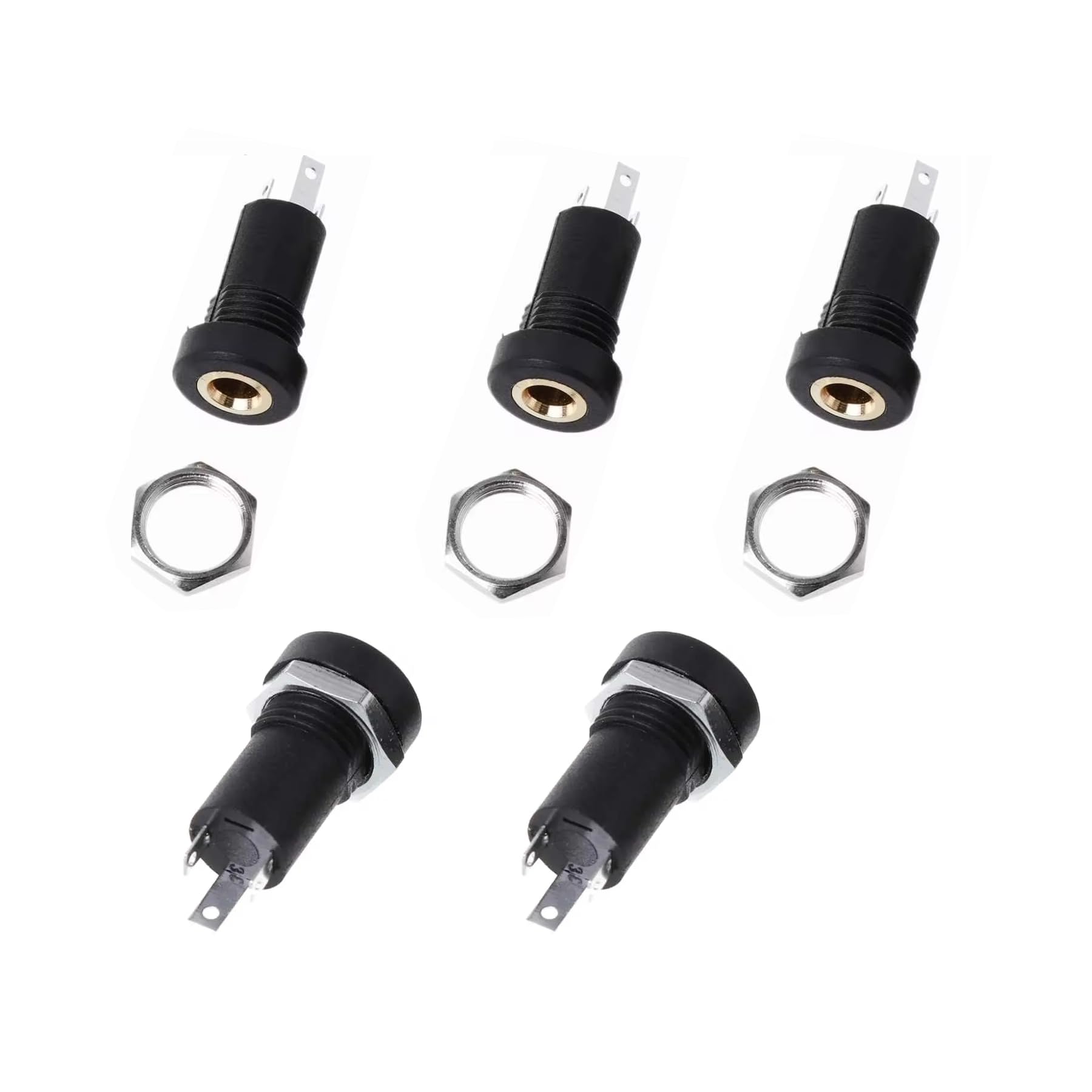

Details: Package Contents: 5PCS X PJ392A-1 3Pin 3.5 MM Audio Jack receptacle gold plated - Vertical Panel Mount Round Connector Female Socket

Model: PJ392A-1

Item Condition: New
