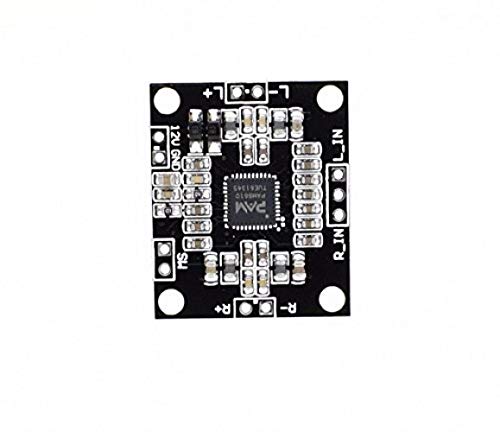

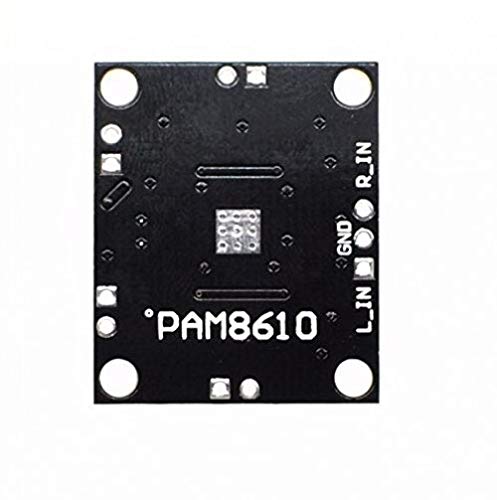

CentIoT - PAM8610 2 x 15W - 2 Channels Each 15W Dual Channel Stereo Mini Class D Digital Audio Power Amplifier Board DC 12V

Brand: CentIoT

Color: Black

Features:

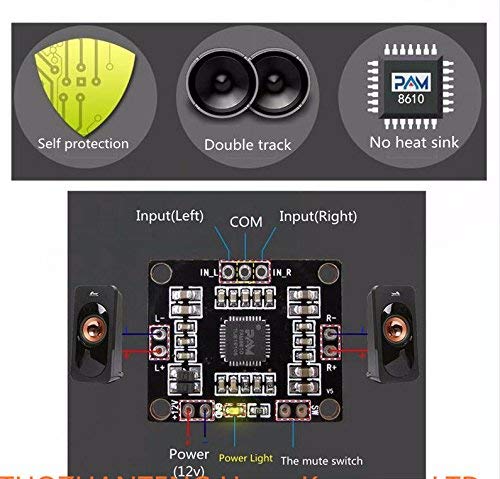

• Dual Channel 15W per Channel, Dual-panel wiring, properly solve the crosstalk between the ground potential balance and channel wiring

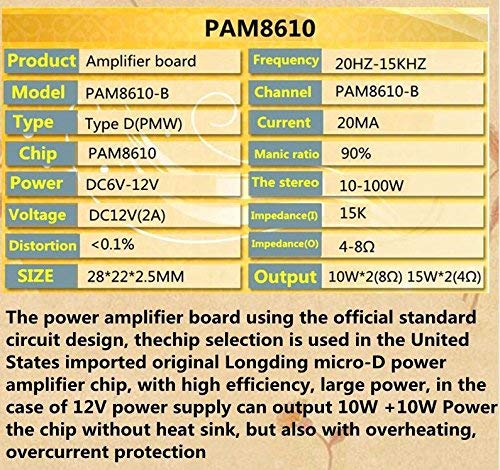

• SNR: 86%; Total harmonic distortion: 5W / 1KHz / 8 ---- 0.1%; Frequency range: 20Hz-20KHz; Input impedance: 15K; Output Impedance: 4-8;
• Operating voltage: DC 7.5 - 15V, Recommended voltage: 12 V, Quiescent current: 20 mA, Rated output power: 10 W +10 W (8)
• Excellent noise suppression in the case is not connected to the input audio, the ear close to the speaker can not hear any noise
• Frequency response: 20Hz to 50KHz; Match with speaker more than 20W RMS per channel

PartNumber: AU003-PAM8610

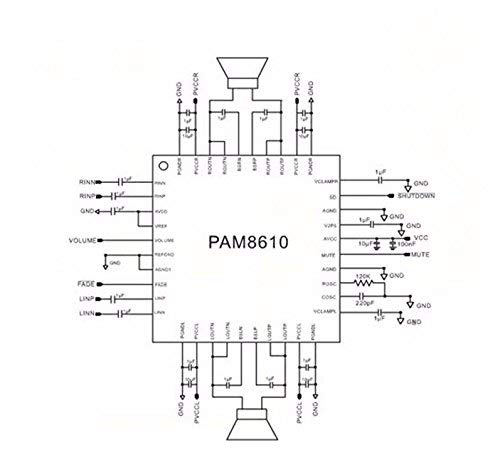

Details: This is Digital Power Amplifier Board it uses the official standard circuit design, the chip PAM8610 is imported from USA and is original Longding Micro-D power amplifier chip, it can produce distortion free high efficiency power throughput of 10w with an 12v power supply without a need for heat sink, 15W throughput can be achieved with heat sink. It has an inbuilt over heating and over current protection.

EAN: 4604046157931

Model: AU003-PAM8610

Item Condition: New
