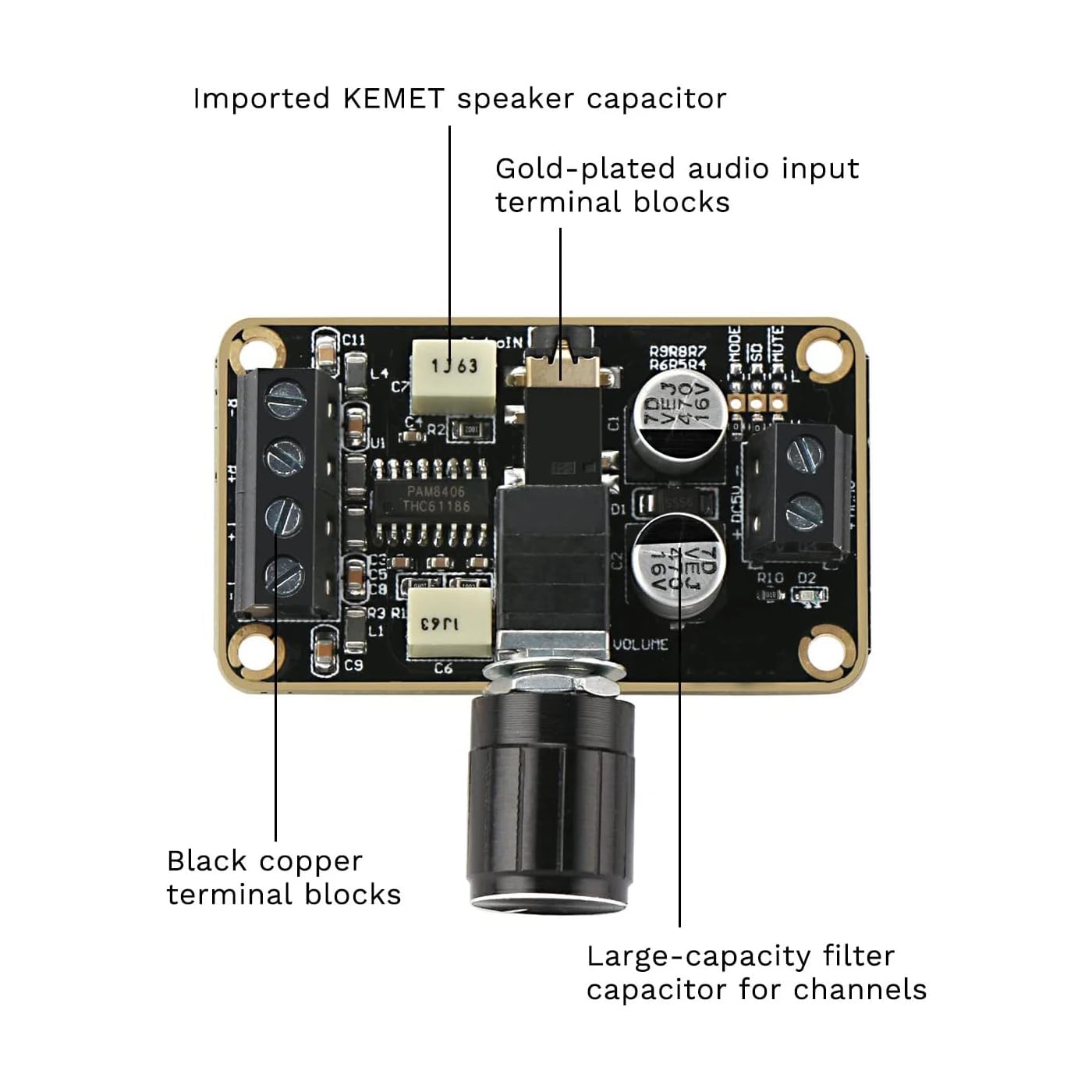

CentIoT - PAM8406 2 x 5w - 2 Channels 5w dual channel stereo mini class AB/D digital Audio Power Amplifier board

Brand: CentIoT

Color: Black

Features:

• Working Mode: Class D (PWM modulation type) Default, can be set to Class AB
• Chip Type: PAM8406 2 x 5W Stereo HIFI
• Supply voltage: DC 5V (Do not overvoltage, overvoltage will burn IC)
• Input method: single-ended | Output power: 5W 2Ω 5V /3W 4Ω 5V /1.8W 8Ω 5V
• Impedance: 2-8 Ohm || SNR: 90% Recommended || Speakers: 10-100W

PartNumber: AU007-PAM8406-P

Release Date: 22-01-2019

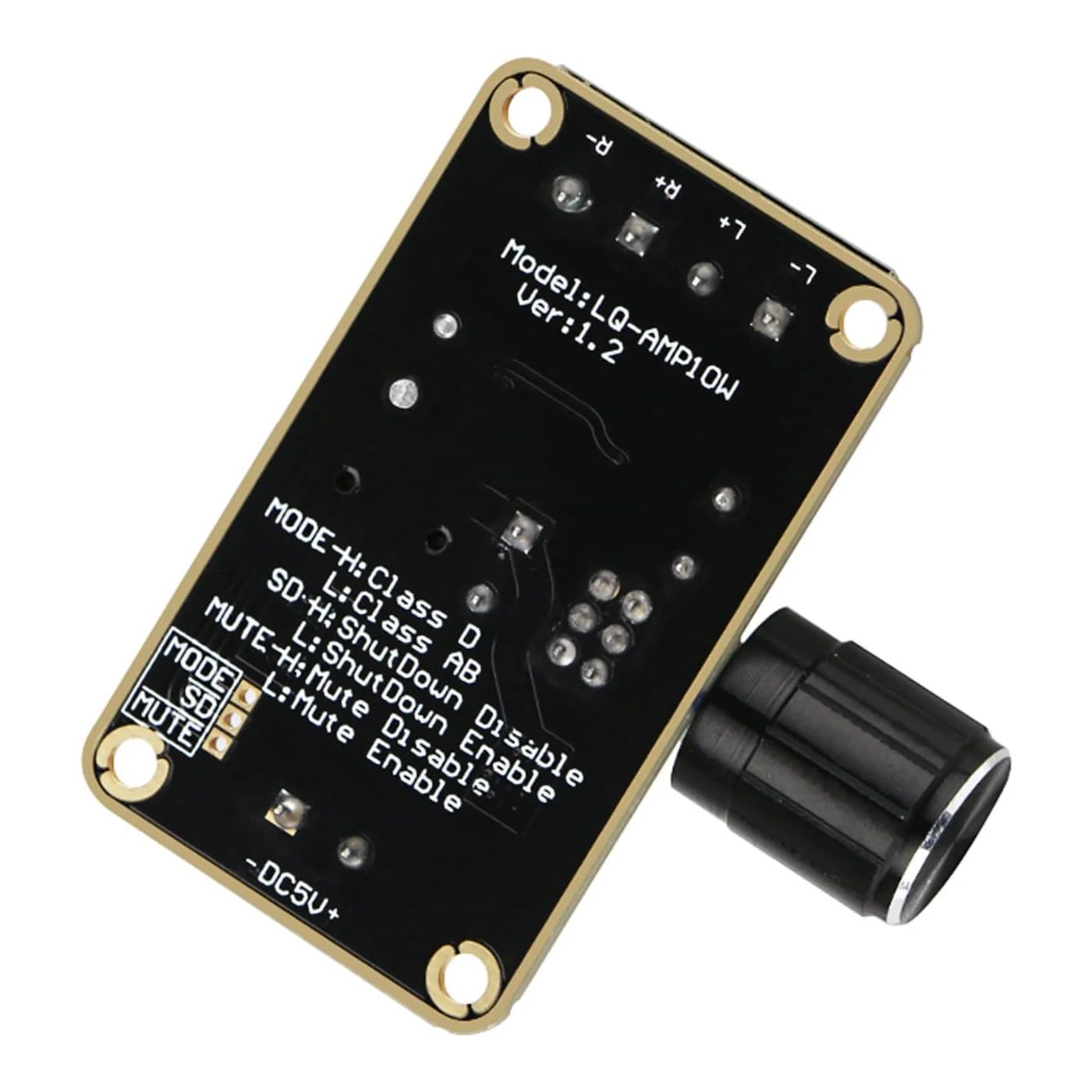

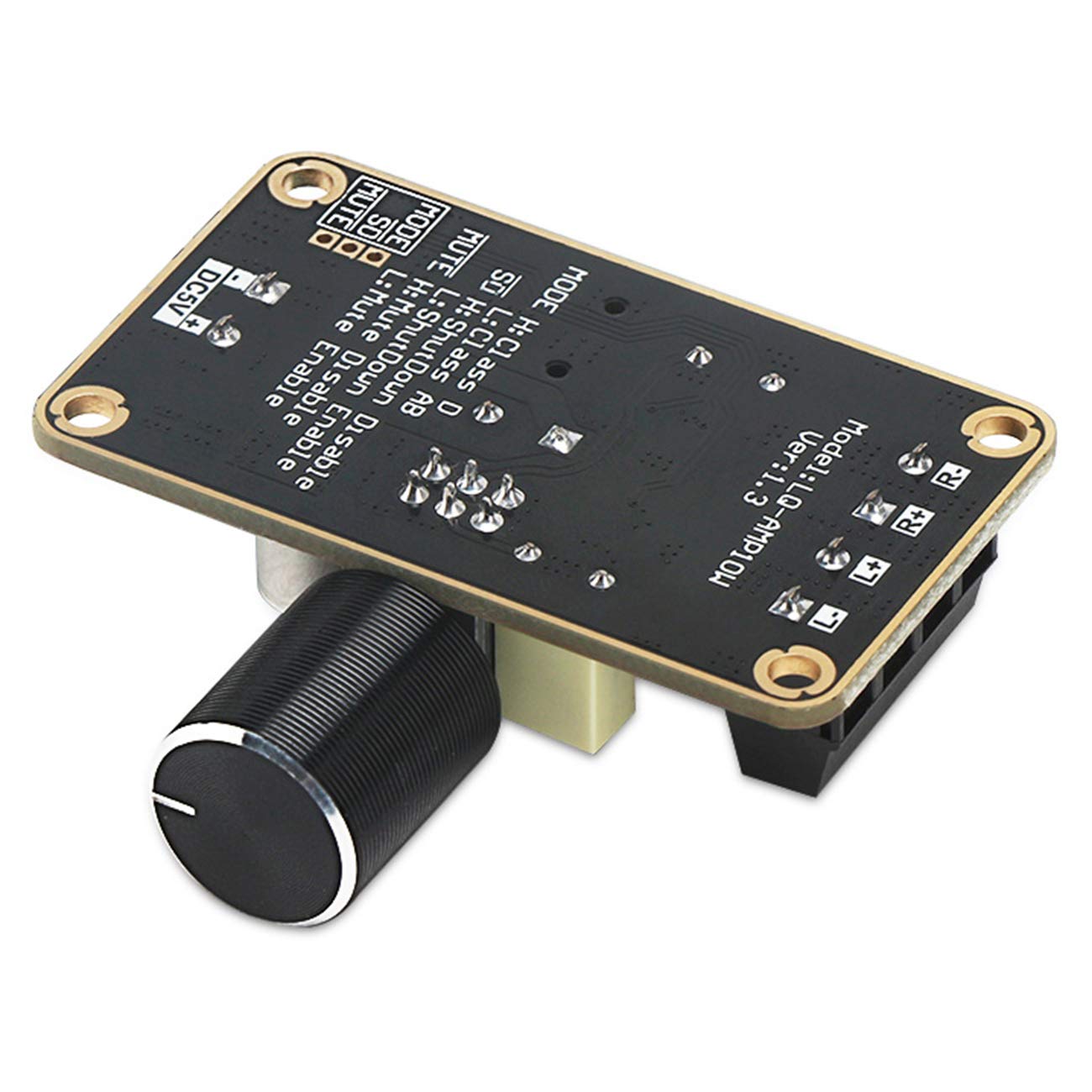

Details: This is Digital Power Amplifier Board it uses the official standard circuit design, the chip PAM8406 is imported from USA and is original Longding Micro-D power amplifier chip, it can produce distortion free high efficiency power throughput of 5w with an 5v power supply without a need for heat sink. Performance: 1. Efficiency: >90% 2. Total Harmonic Distortion plus Noise: <10% 3. Low quiescent current 4. Noise suppression 5. Protection: reverse power supply input protection, short-circuit, overheat, pass EMI Additional features: 1. External power amplifier type selection function (MODE: high level Class D, low level Class AB, factory default high level) 2. External Shutdown (SD: Chip Shutdown at Low Level, Factory Default High Level) 3. Can be muted externally (MUTE: low-level mute, factory default high level)

EAN: 4604046156156

Model: AU007-PAM8406-P-2X5W-5V

Binding: Electronics

Item Condition: New
