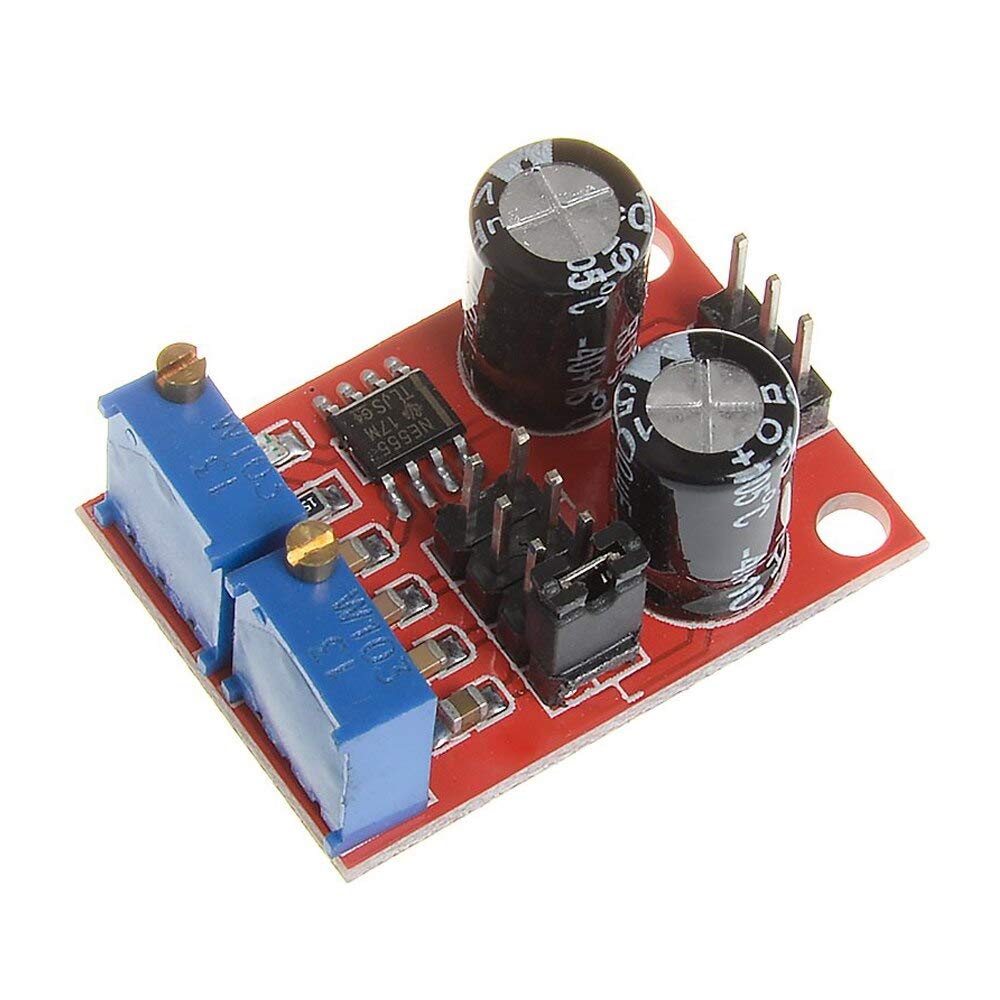

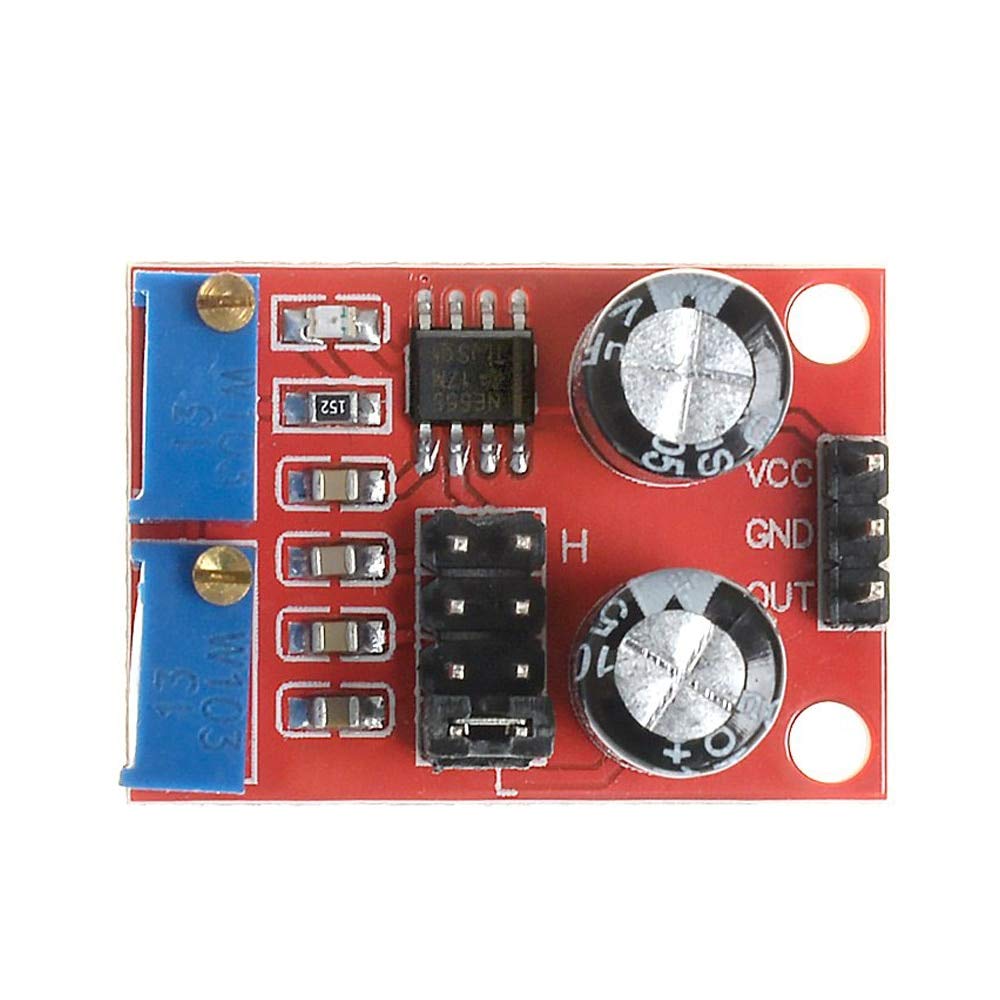

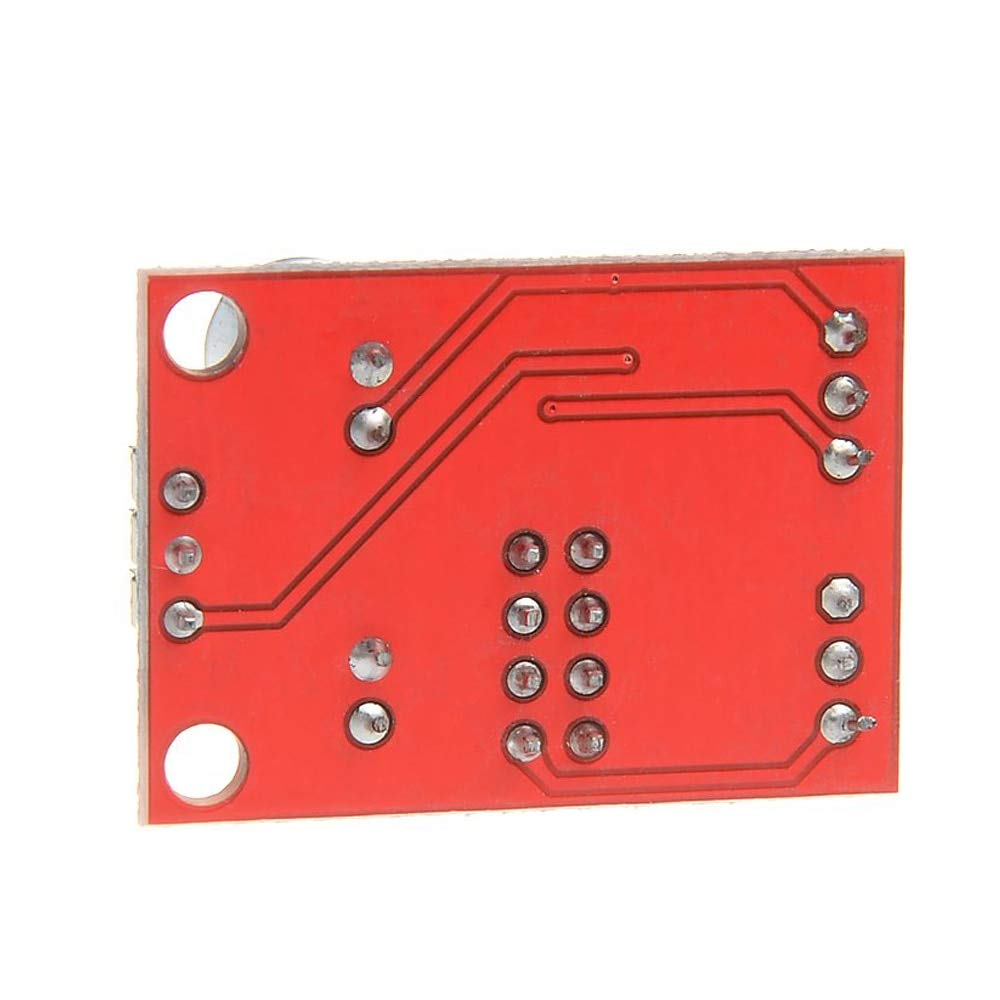

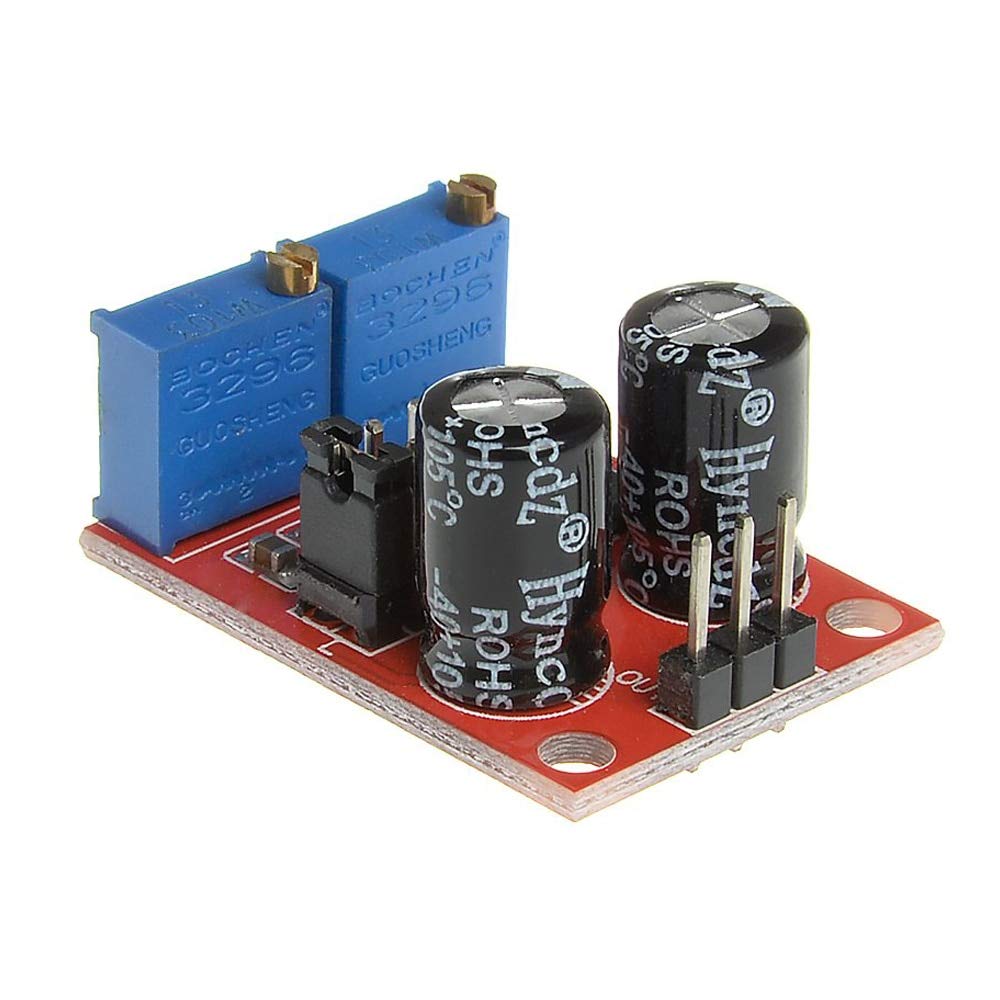

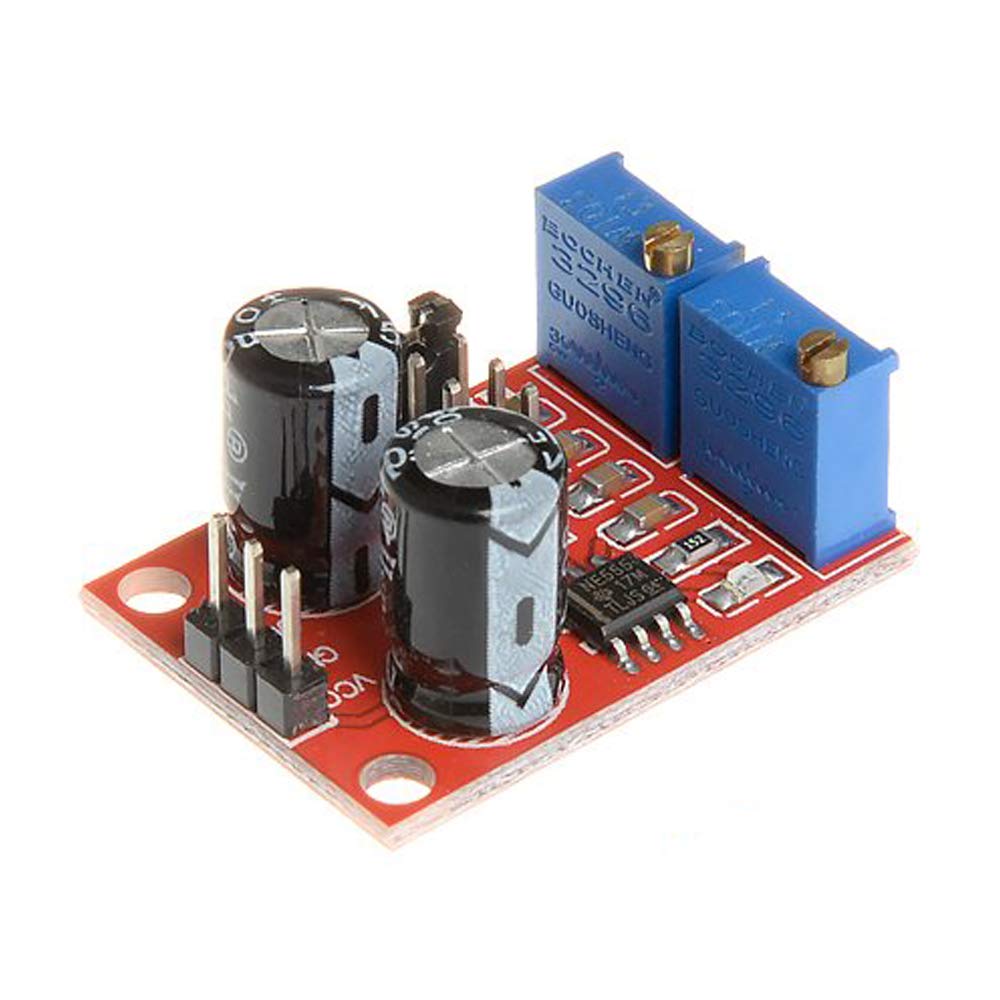

CentIoT - NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator DC 5V-15V

Brand: CentIoT

Features:

• Chipset: NE555; Pulse Frequency Square Wave Signal Generator Module
• Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around; when 12V power supply, the output current is around 35MA;
• Input current: 100MA
• Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different depending on the input voltage, the output amplitude will be different)
• Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)

PartNumber: AR090-NE555-PULSEGEN

Details: Scope of this module: 1. It is used as a square wave signal generator generates a square wave signal used for experimental development. 2. Can be used to drive a stepper motor for generating a square wave drive signal. 3. Adjustable pulse generated for use by MCU. 4. Adjustable pulse generation, control circuitry associated. Advantages: 1. The output with LED indication, there is no output straightforward (low LED volume, high LED off frequency is relatively low, the LED flashes) 2. Output level selectable frequency range, the output frequency is continuously adjustable LF file: 1Hz ~ 50Hz IF file: 50Hz ~ 1kHz High-frequency file: 1KHz ~ 10kHz HF file: 10kHz ~ 200kHz 3. Output duty cycle can be fine-tuned, duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency 4. Output frequency is adjustable Period T = 0.7 (RA +2 RB) C RA, RB is 0-10K adjustable Low profile when C = 0.001UF IF stalls C = 0.1UF High-frequency file C = 1UF HF stalls C = 100UF, so the frequency of the waveform buyers can own calculations

UPC: 679043314889

EAN: 0679043314889

Model: AR090-NE555-PULSEGEN

Item Condition: New
