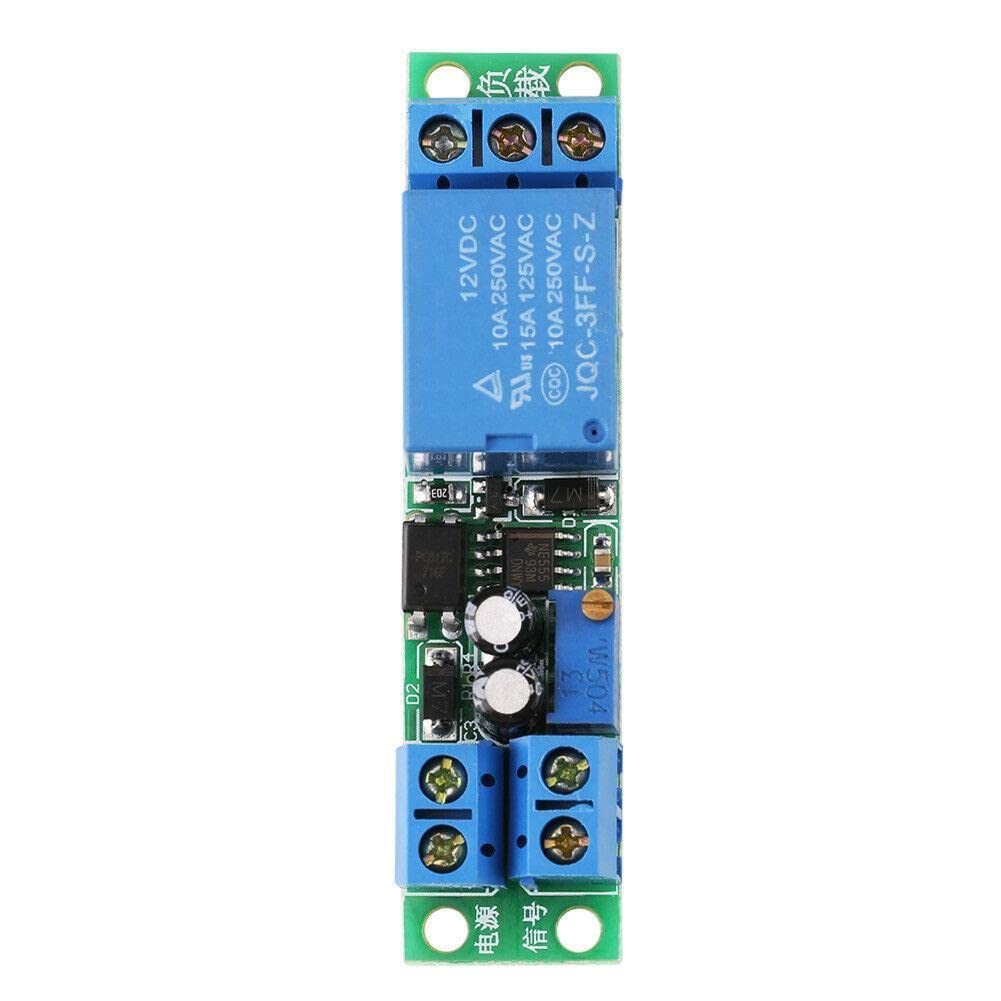

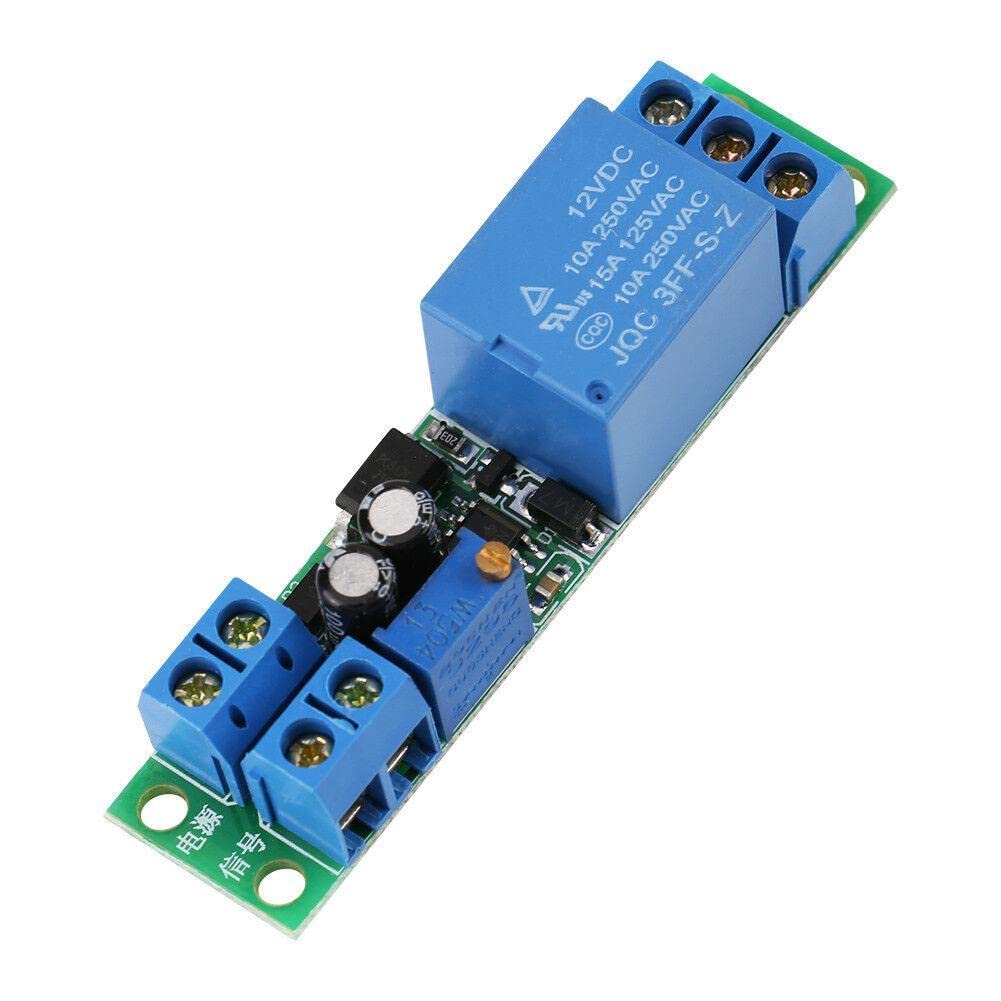

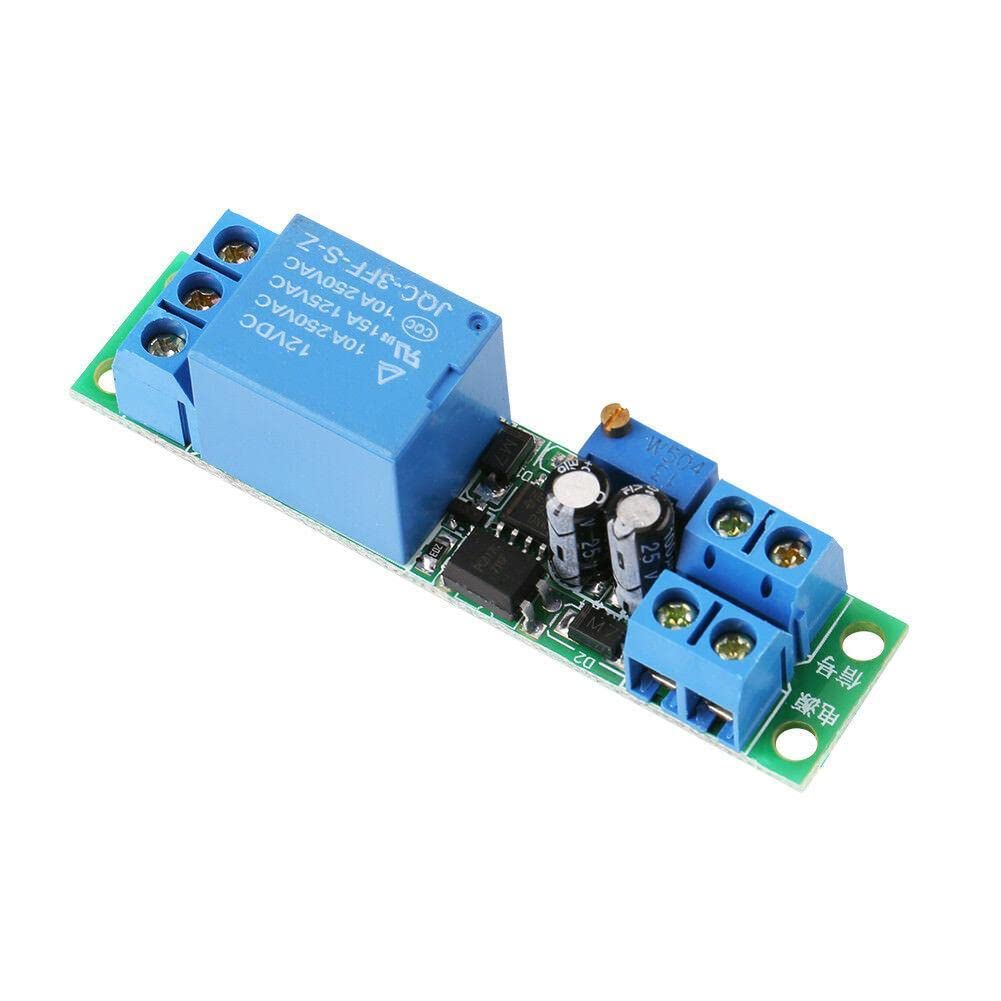

CentIoT - NE555 12V automotive time delay relay module - upto 25 sec

Brand: CentIoT

Features:

• Module based on : NE555 chip; The delay time is adjustable (0~25 seconds) using the in-built potentiometer
• Delay module : Delay connect module
• Input voltage : DC12V
• Control voltage : AC 0 - 250V/max. 10A, DC 0 - 30V/max. 10A
• Delay Time: T(S)=1.1*R(Ω)*C(f); e.g. if capacitor is 47uf, resistor is 500KΩ, T=1.1*0.000047*500000=25.85sec

PartNumber: SWD006-NE555-12V-25S

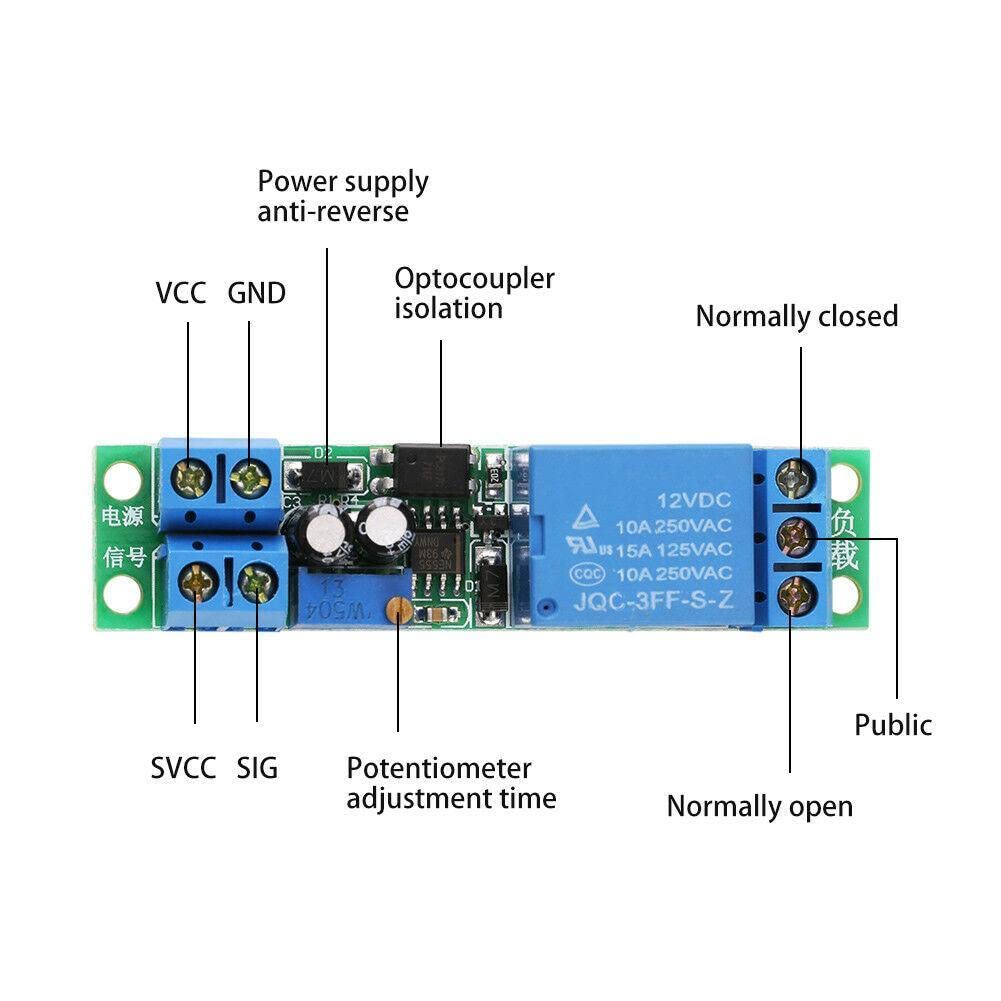

Details: 12V trigger delay normally open relay module, repeatedly triggering effective. Delay time can be adjusted by potentiometer(clockwise to reduce, anticlockwise to increase), default 0-25 seconds, if you need more time, simply replace a larger capacitance or potentiometer. Power supply terminal has anti-reverse diode for protection. Trigger signal can be high level or low level signals, suitable for industrial control, the module can be triggered repeatedly. It can be used in robotics, car lamp delay, intelligent product development, automation equipment, PLC development, intelligent home, burglar alarm delay, and development of electronic.

Model: SWD006-NE555-12V-25S

Item Condition: New
