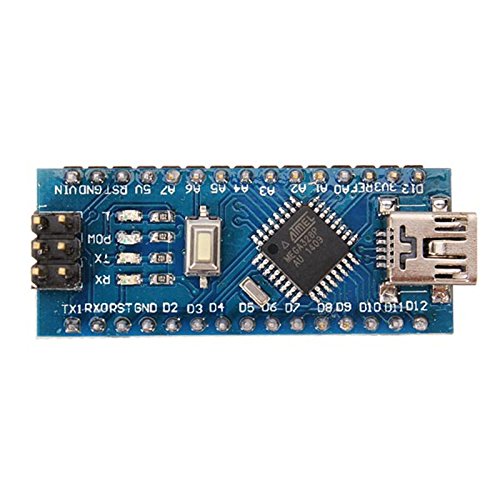

CentIoT - Nano V3 ATmega328P CH340 - Unsoldered Pins

Author: 5V USB Mini B

Brand: CentIoT

Color: Blue

Features:

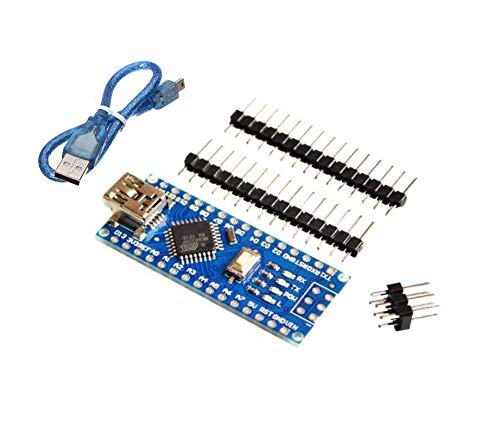

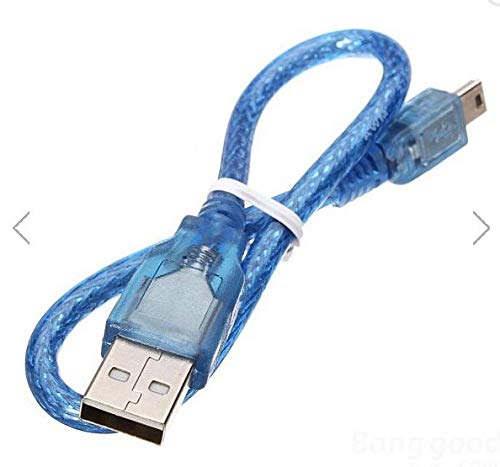

• UnSoldered Nano v3.0 Atmega328 compatible, Nano Cable USB Mini B to USB A (cable colour might change from the one shown in picture)
• Microcontroller: Atmel ATmega328P
• Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V
• Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA
• Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz USB to Serial Converter: CH340

PartNumber: AR092-NANO-CH340-UNSOL

Release Date: 06-10-2019

Details: ATmega328P Nano V3 Controller Board Compatible Arduino Improved Version, this developement uses USB to Serial Converter Chip CH340, Please install CH341SER driver if the board is not recognised in Arduino IDE

UPC: 631772461890

EAN: 0631772461890

Model: AR092-NANO-CH340-UNSOL

Binding: Electronics

Item Condition: New
