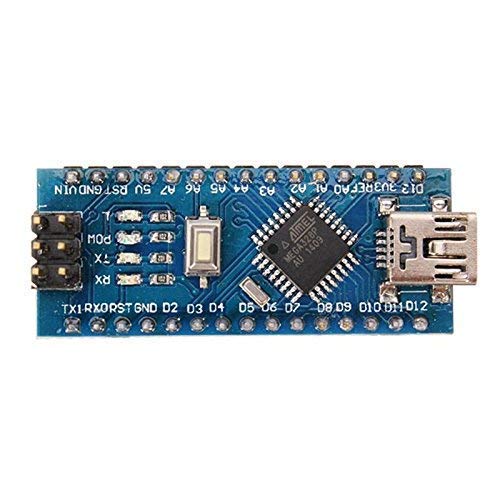

CentIoT - Nano V3 ATmega328P CH340 Mini USB - With USB Cable - Compatible with Arduin - soldered pins

Brand: CentIoT

Color: Blue

Features:

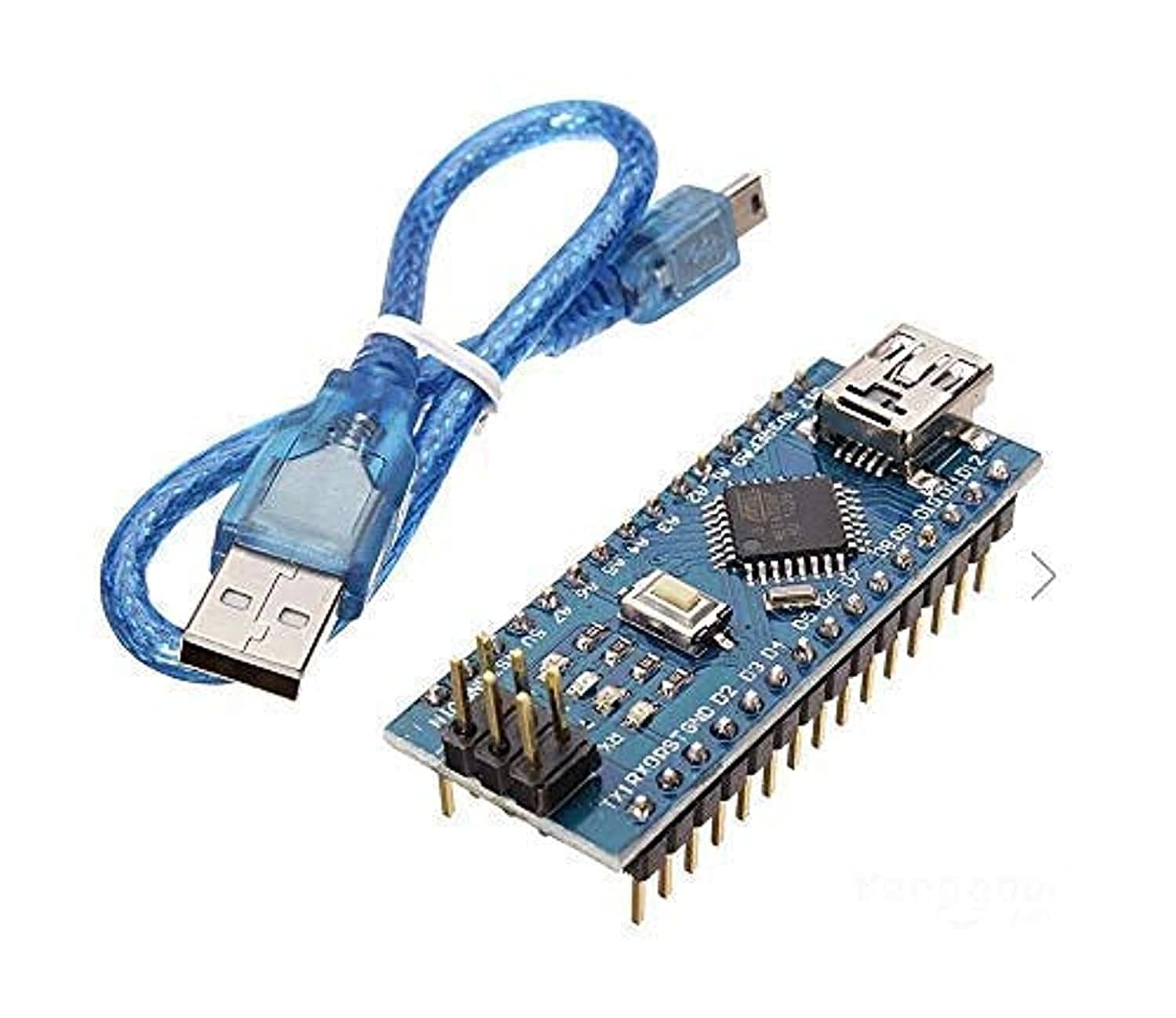

• Soldered Nano v3.0 atmega328 compatible, Nano Cable USB Mini B to USB A (cable colour might change from the one shown in picture)
• Microcontroller: Atmel ATmega328P
• Operating Voltage (logic level): 5V Input Voltage (recommended): 7V ~ 12V Input Voltage (limits): 6V ~ 20 V
• Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 8 DC Current per I/O Pin: 40mA
• Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader) SRAM: 2KB (ATmega328) EEPROM: 1KB (ATmega328) Clock Speed: 16MHz USB to Serial Converter: CH340

PartNumber: AR010

Release Date: 07-12-2020

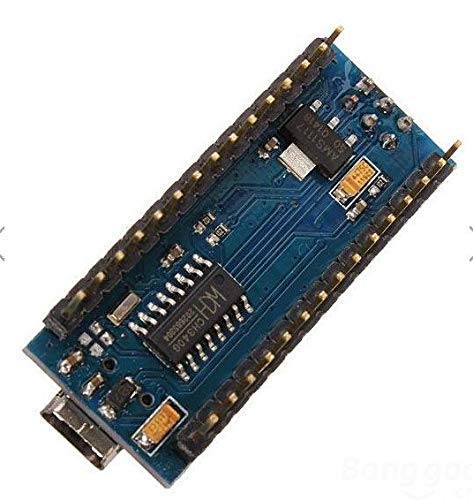

Details: ATmega328P Nano V3 Controller Board Compatible Arduin Improved Version, this developement uses USB to Serial Converter Chip CH340, Please install CH341SER driver if the board is not recognised in Arduin IDE

EAN: 4604046155821

Model: AR010-NANO-SOL-MINI

Binding: Electronics

Item Condition: New
