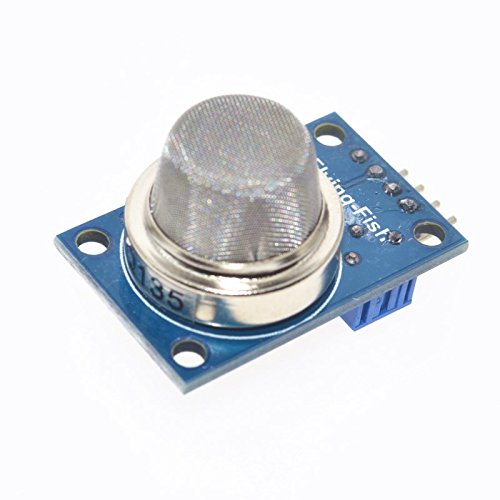

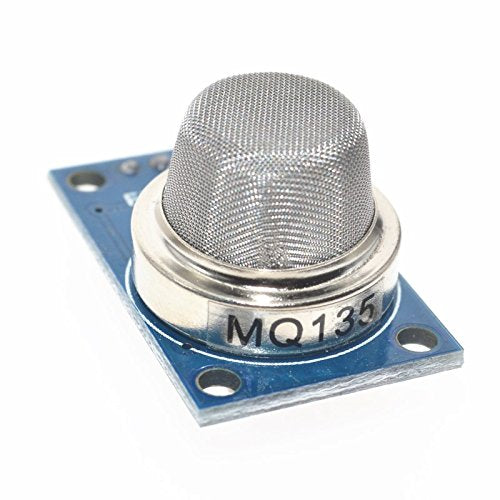

CentIoT - MQ-135 Air Quality Sensor Hazardous Gas Detection Graphene-Based Gas/Vapor Sensor Module (MQ 135)

Brand: CentIoT

Features:

• MQ-135 Air Quality Sensor Hazardous Gas Detection Graphene-based Gas/Vapor Sensor Module (MQ 135)
• Input voltage : DC5V Power consumption ( current ): 150mA DO output : TTL digital 0 and 1 ( 0.1 and 5V) AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V

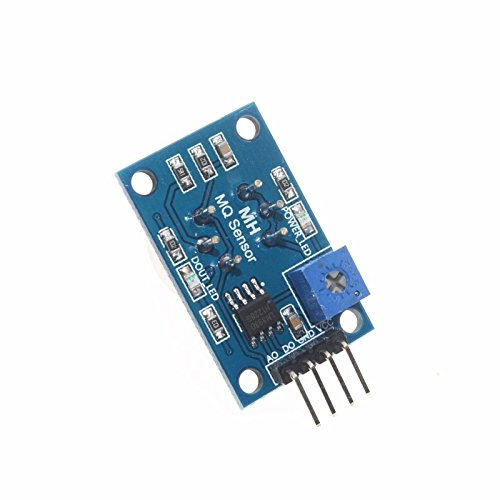

• Using high-quality dual-panel design,with power indicator and TTL signal output instructions. The switching signal having a DO (TTL) output and analog output AO. TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )

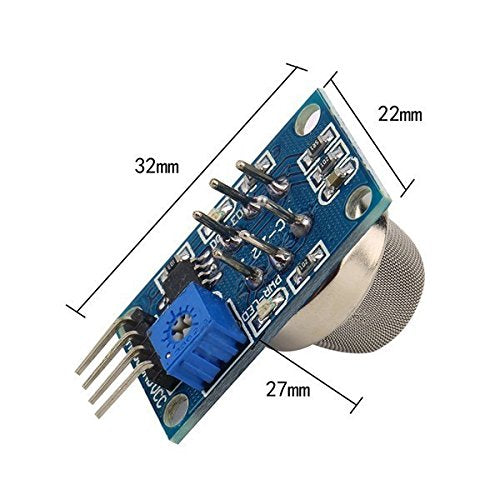

• Analog output voltage with the higher concentration of higher voltage There are four screw holes for easy positioning. Has a long life and reliable stability Rapid response and recovery characteristic
• Special note: After the sensor is powered, the sensor needs to warm up around 20S to acheive stablility in data measurement, the sensor does get heated up it is a normal phenomenon,because of the internal heating wire.

PartNumber: CIoT-SE0030-MQ135

Release Date: 12-08-2018

Details:

Graphene-based gas and vapor sensors have been attached much attention in recent years due to their variety of structure, unique sensing performance, room-temperature working conditions, and tremendous application prospects etc.

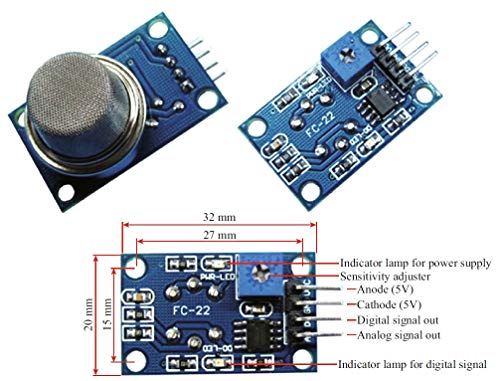

Wiring: VCC: positive power supply (5V); GND: power supply is negative; DO: TTL switching signal output; AO: analog signal output

EAN: 4604046162935

Model: SE0030-MQ135

Binding: Electronics

Item Condition: New
