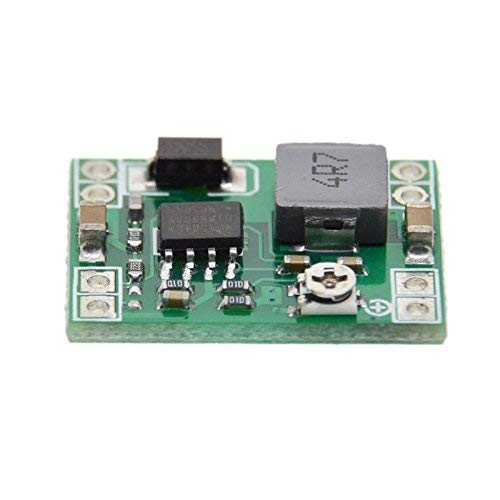

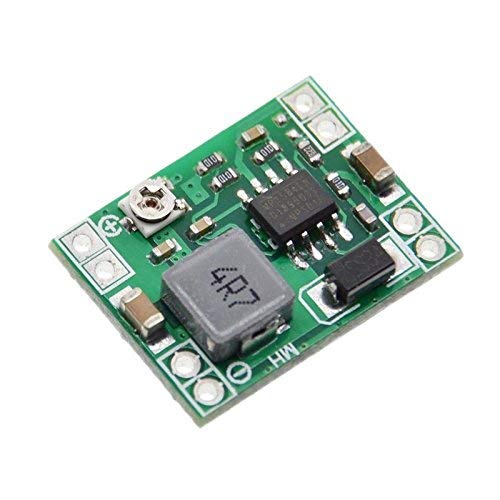

CentIoT - MP1584 MP1584EN 3A Ultra-Small Size DC-DC Step Down Power Supply Module 3A Adjustable Buck Converter

Brand: CentIoT

Features:

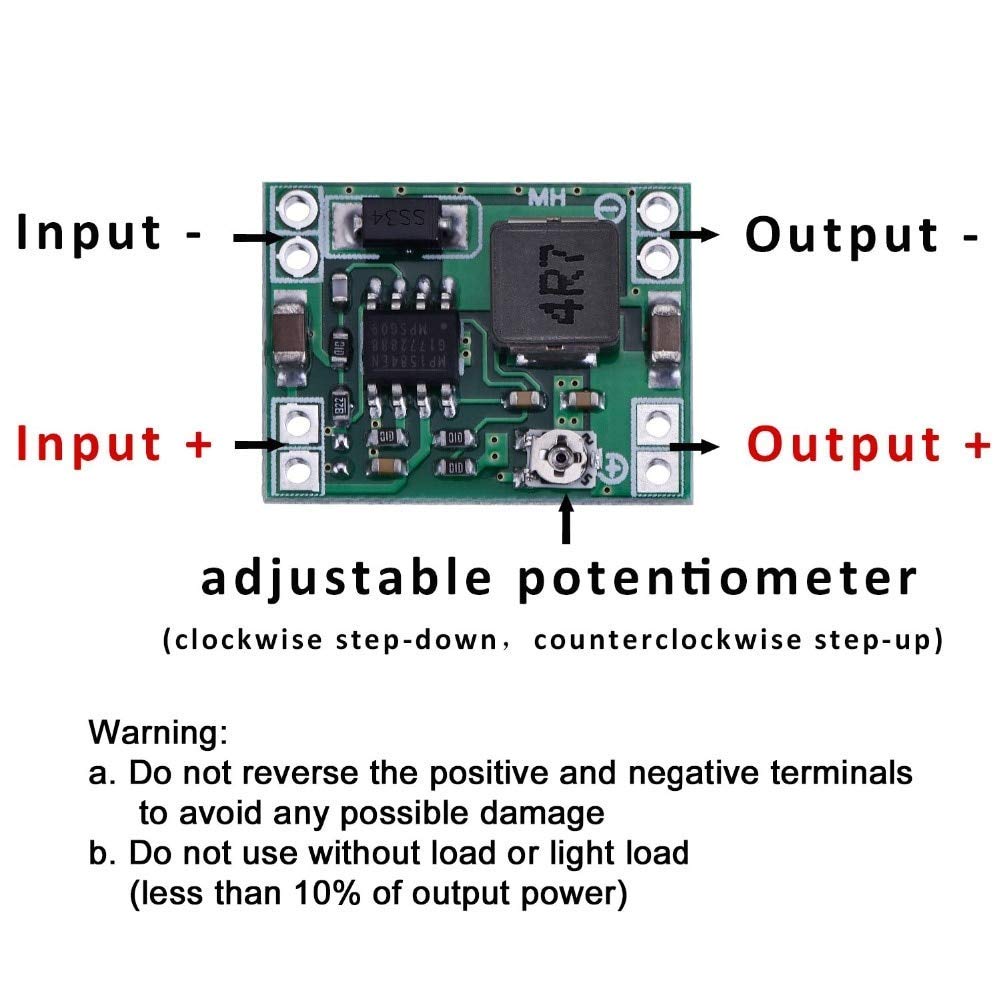

• Input Voltage : 4.5~28V; Do not adjust the potentiometer without load (atleast light load)
• Output voltage : 0.8V~20V ; Output Current : 3A(Max)
• Switch Frequency : 1.5MHz(Max),1MHz(Typ)
• Operating Temperature : -20 to +85
• Efficiency : 92%(Max)

PartNumber: DC017-BUCK-3A-MP1584

Release Date: 03-03-2020

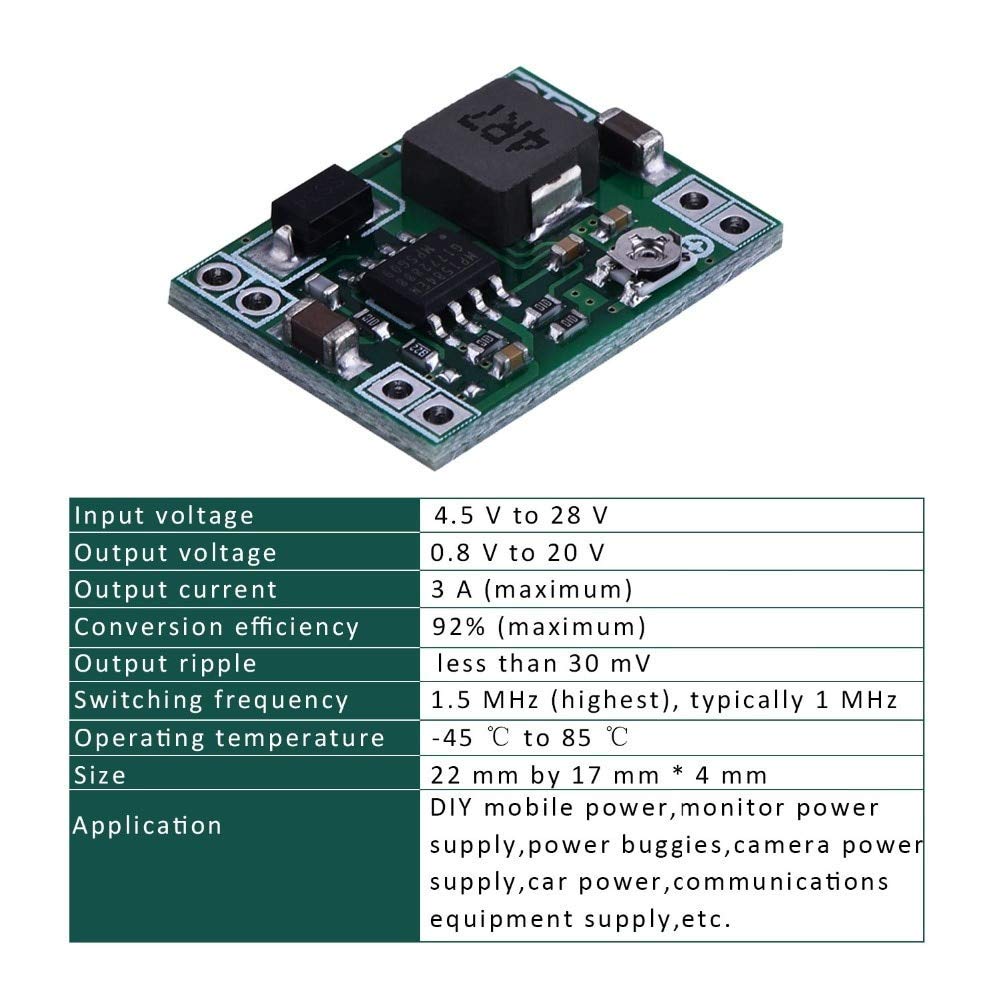

Details: 1. Input Voltage : 4.5~28V 2. Output voltage : 0.8V~20V 3. Output Current : 3A(Max) 4. Efficiency : 92%(Max) 5. Switch Frequency : 1.5MHz(Max),1MHz(Typ) 6. Operating Temperature : -20 to +85 deg C 7. Size : 22mm * 17mm * 4mm 8. Application: DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply,etc.

UPC: 618020769649

EAN: 0618020769649

Model: DC017-BUCK-3A-MP1584

Binding: Electronics

Item Condition: New
