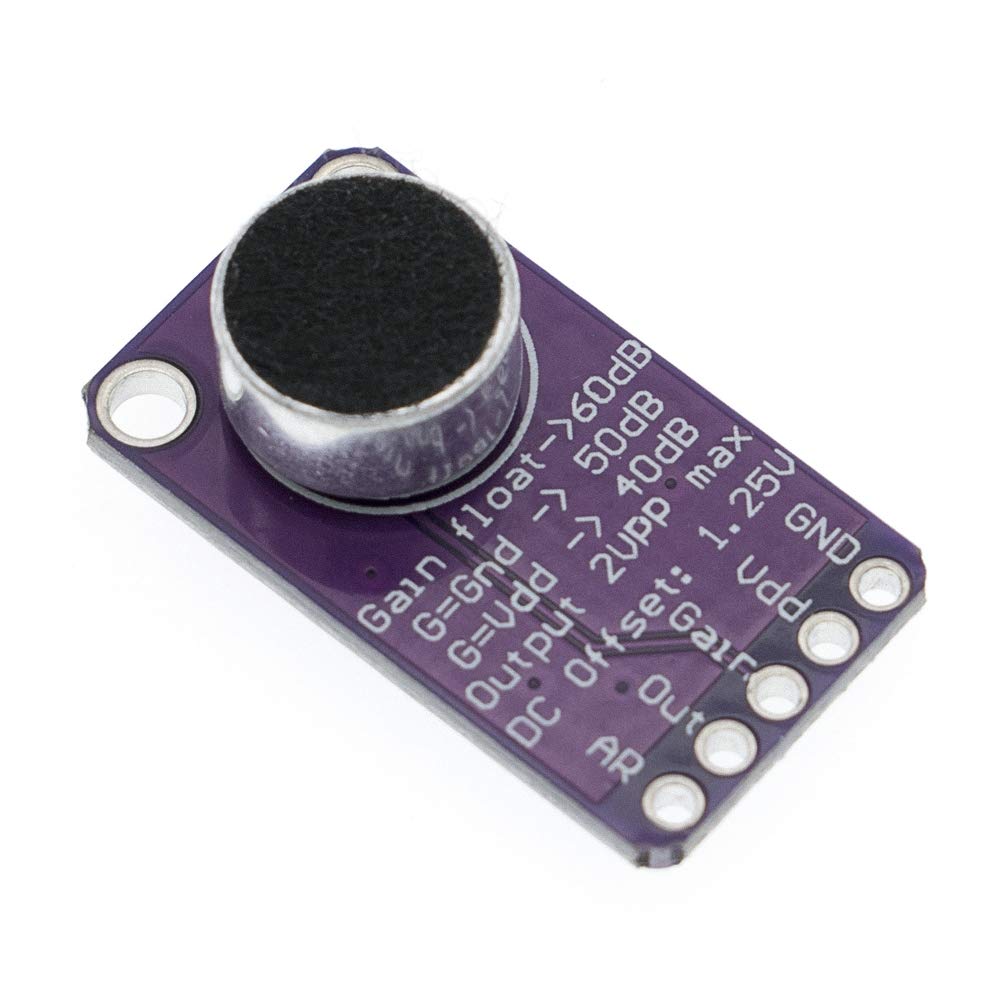

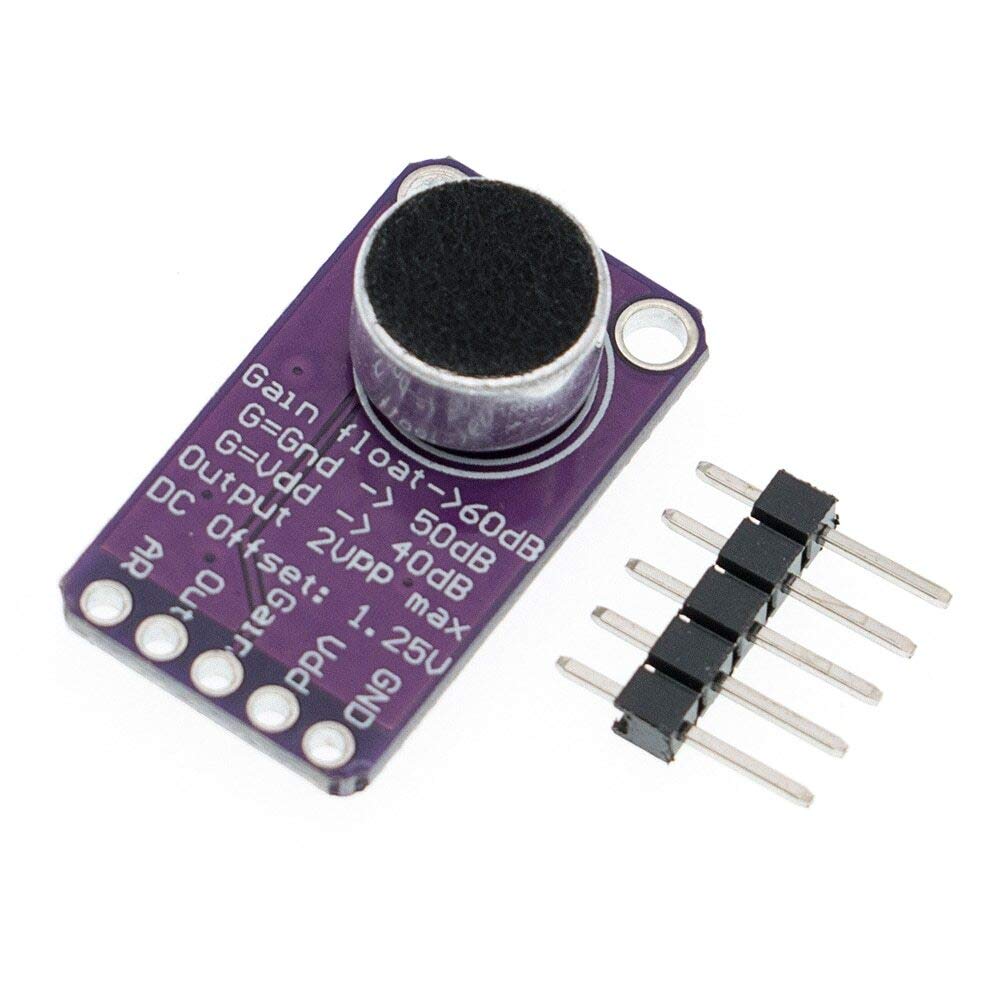

CentIoT - MAX9814 Electret Microphone Amplifier Board with AGC Function - Auto Gain Control Programmable Attack and Release Ratio Low THD - DC 2.7v-5.5v - 20mm x 15mm

Brand: CentIoT

Color: Purple

Features:

• This breakout is best used for projects such as voice changers, audio recording/sampling, and audio-reactive projects that use FFT
• Automatic gain, selectable max from 40dB, 50dB or 60dB; Low Input-Referred Noise Density of 30nV/ - Low THD: 0.04% (typ)
• Supply Voltage: 2.7v-5.5v @ 3mA current
• Output: 2Vpp on 1.25V bias; Frequency Response: 20Hz - 20KHz; Programmable Attack and Release Ratio
• For the amplification, the module has built in Maxim MAX4466

PartNumber: AE010-MAX9814-5V

UPC: 679043314407

EAN: 0679043314407

Model: AE010-MAX9814-5V

Binding: Electronics

Item Condition: New
