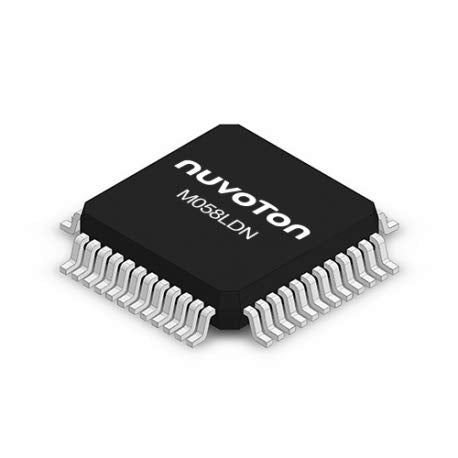

CentIoT - M051 Series M058LDN LQFP-48 M058 - for Nuvoton Microcontroller IC

Brand: CentIoT

Features:

• Core - Cortex- M0 processor - Max frequency of 50 MHz - Operating voltage: 2.5V to 5.5V - Temperature range: - 40 ℃ ~ 85 ℃
• Memory - 32 KB of flash memory - 4 KB of SRAM - 4 KB of Data Flash - ISP ( In-System Programming ) - ICP ( In-Circuit Programming ) - IAP ( In-Application Programming )
• ADC - Up to 8 channels - 12-bit resolution - Up to 800 kSPS - A/D conversion started by PWM -± 1 ℃ accurate Temperature Sensor
• PWM - Up to eight-channel PWM or 4 complementary paired PWM outputs - Period/duty trigger ADC function; Clock Control - 4 to 24 MHz external crystal oscillator - 22.1184 MHz internal RC oscillator ( ± 1 % accuracy at 25 ℃ , 5V )
• Connectivity - Up to two SPI s ( up to 36 MHz ) - Up to two I²C s ( up to 400 kHz ) - Up to two UART s - 16/8 bits EBI interface

PartNumber: IC0003-Nuvoton-M058LDN-LQFP48

Details: The M051 operates at 2.5V ~ 5.5V and -40℃ ~ 85℃, and provides 22.1184 MHz high precision internal oscillator (±1% accuracy at 25℃, 5V; full range ±3%) , rich peripherals and high immunity (8KV ESD, 4KV EFT) . Package type: LQFP48. Target Application: Security/Alarm, Temperature Sensor, Motor, etc.

UPC: 679043313547

EAN: 0679043313547

Model: IC0003-Nuvoton-M058LDN-LQFP48

Item Condition: New
