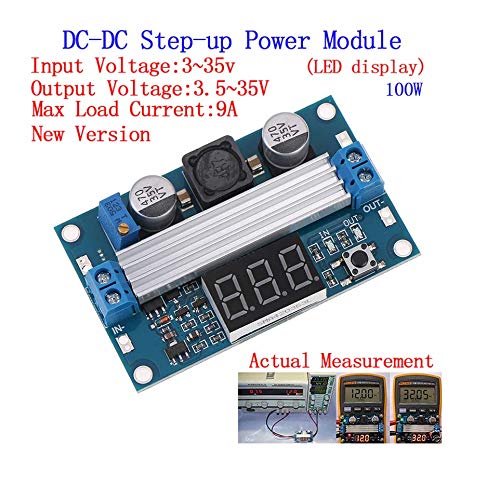

CentIoT - LTC1871 100W DC DC Step Up Booster Converter Module Power Supply Voltage Regulator 3-35V to 3.5-35V with Voltmeter

Brand: CentIoT

Color: Blue

Features:

• Input Voltage:3-35V(Note:When input voltage is less than 4V,onboard voltmeter will not work); Input Current:9A(Max)
• Output Voltage: 3.5-35V DC(this board is boosting board,output voltage>=Input voltage); Output Current:6A(max)

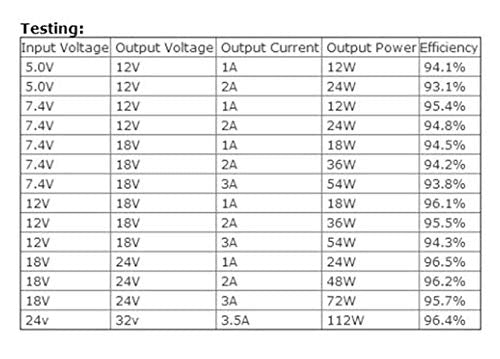

• Output Power:65W(when the input and output voltage greater than 20Vup to 100W); Conversion Efficiency:96%(the highest); Output Ripple: 40mV(TYP)

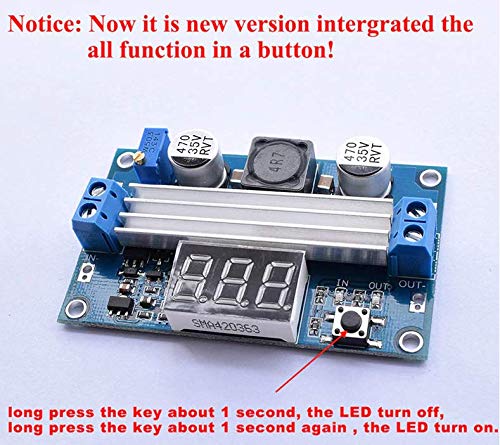

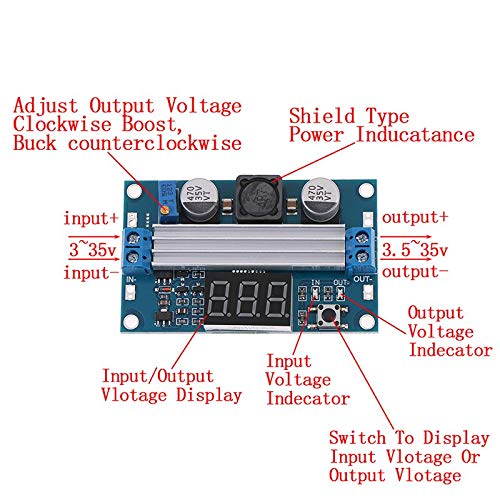

• Onboard Voltmeter Range: 4-40V; Error:+/-0.1V; Press the button to switch display netweem input or output voltage value.
• Short circuit protection: yes (limit current 14A). (Note: When connected to a high-power load, you only need to switch the current very general effect to meet the current limit self-locking protection. It is recommended to switch first and then access the load); Input reverse extreme protection: none (connect high-current diode of input series if necessary).

PartNumber: DC053-LTC1871-100W-METER

Release Date: 06-06-2020

UPC: 679043312304

EAN: 0679043312304

Model: DC053-LTC1871-100W-METER

Binding: Electronics

Item Condition: New
