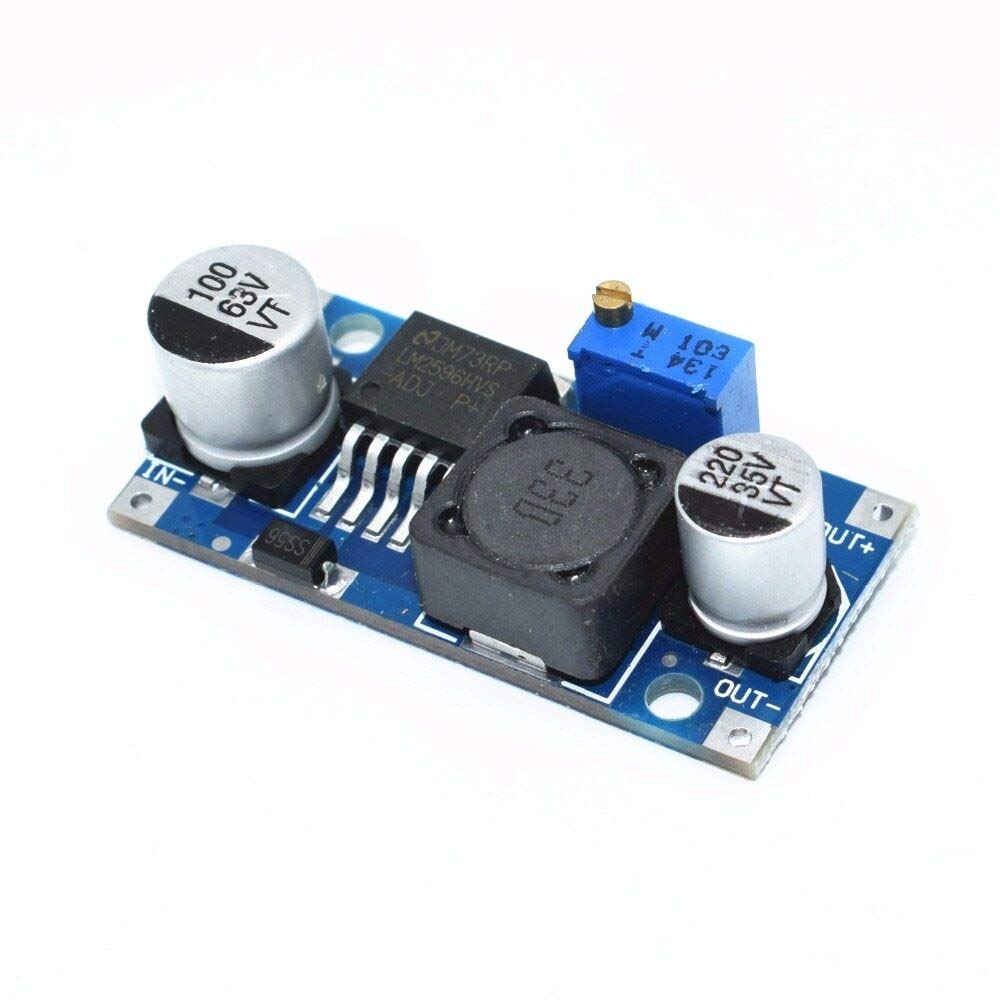

CentIoT - LM2596HVS DC-DC Step Down Power Supply Module - 50V High input Voltage version of lm2596

Brand: CentIoT

Features:

• Input Voltage : Input Voltage 4.5V – 50V DC; Do not adjust the potentiometer without load (atleast use light load)
• Output Voltage: 3.0V – 35V DC || Output Current : 3A(Max) (require heatsink with some voltage combinations)
• Switching Frequency 150kHz
• Operating Temperature : -20 to +85; Size 43.5mm x 20.5 mm (1.7in x 0.8in)
• Efficiency : 92%(Max)

PartNumber: DC043-LM2596HVS

Release Date: 13-10-2019

Details: LM2596HVS is a High-voltage input version of LM2596S low-cost high-amperage Switch mode DC/DC Buck power supply module. The module can accept upto 50V input voltage. Get any voltage between 4.5V to 35V (Input voltage must be greater than output voltage). Features: 1. A Bourns 3296 25-turn potentiometer is installed on board to facilitate granular output voltage settings 2. Pin spacing of 0.6″ x 1.5″ to easily affix into the 0.1″ pin spacing of most breadboard and perfboard 3. The module is up to 94% efficient. The higher the output voltage the higher the efficiency 4. The LM2596 datasheet linked to above provides more specific details regarding efficiency 5. Up to 3A of supply current. Depending on input and output voltage a heatsink should be affixed the LM2596 (not included) 6. Large output range of 3.0V-35VDC 7. Low dropout of 1-2VDC, depending on load 8. Only 4 pins are required to be soldered onto the board Applications: 1. Solar Power Regulator. Can regulate varying PV input to any fixed voltage 2. Robot Power Supply for Digital Circuits (3.3V, 5V, or Adjustable ) and Motor Drivers 3. DC Power Supply for Amplifiers 4. Compact Low weight power supply for Quadcopter and other flying robots 5. Regulated power supply for Raspberry pi, Arduino and other embedded microcontroller boards

UPC: 679043314957

EAN: 0679043314957

Model: DC043-LM2596HVS

Binding: Electronics

Item Condition: New
