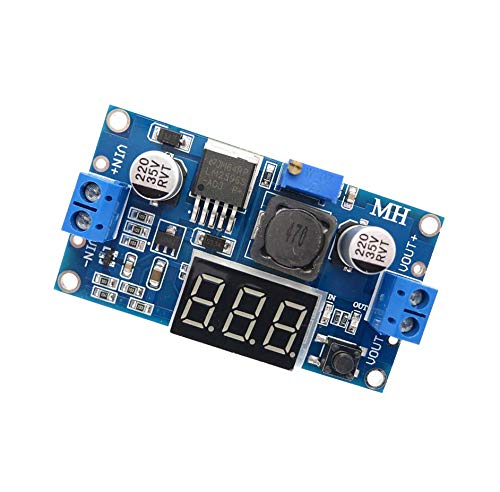

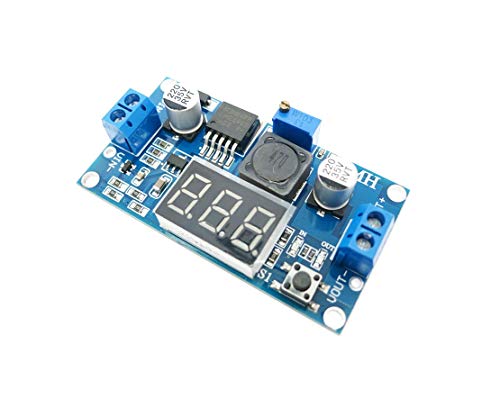

CentIoT - LM2596 LM2596S DC-DC Adjustable Buck Step Down Power Supply Module - with LED Voltmeter digital display

Brand: CentIoT

Features:

• DC to DC Step-Down Adjustable Power Supply Module is based on the LM2596 switching regulator with inbuilt voltmeter
• Input voltage: DC 3.2V to 40V (input voltage must be higher than the output voltage above 1.5V. Could not boost)
• Output Voltage: DC voltage from 1.25V to 35V continuously adjustable, high efficiency (92%) of the maximum output current of 3A.
• Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
• The measured 12V input, 5V output current is 1A load regulation of less than 1%; Temperature -45°~ +85°

PartNumber: DC051-LM2596S-LED-METER

Release Date: 26-03-2020

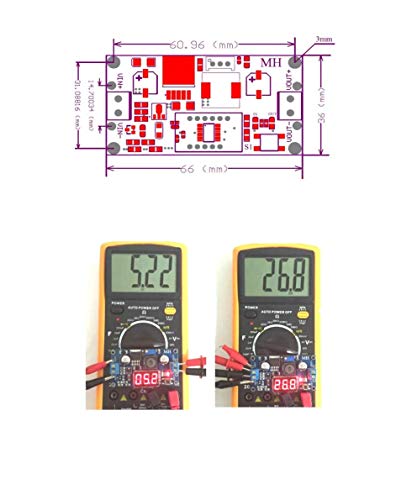

Details: Voltmeter Calibration: The module uses advanced self-calibration no additional calibration is needed, voltmeter error ± 0.05V, Range 0 ~ 40V. (To ensure accuracy voltmeter, make sure the input voltage of 4.5V and above) Use the touch button to switch the input or output voltage measurements and has a light that indicate which is being measured, and save the settings, the settings are persistent during powe cycle.

UPC: 679043313493

EAN: 0679043313493

Model: DC051-LM2596S-LED-METER

Binding: Electronics

Item Condition: New
