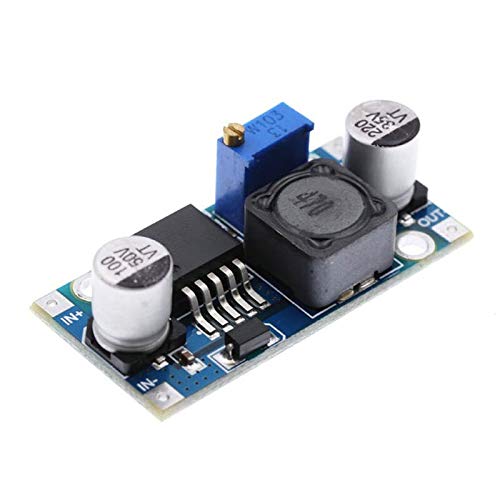

CentIoT - LM2596 LM2596S DC-DC Adjustable Buck Step Down Power Supply Module

Brand: CentIoT

Features:

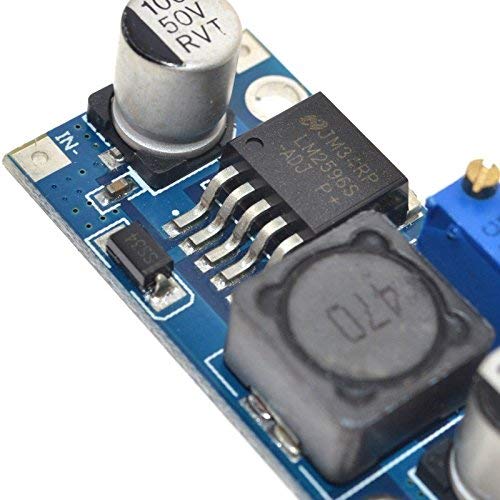

• DC to DC Step-Down Adjustable Power Supply Module is based on the LM2596 switching regulator
• Input voltage: DC 3.2V to 40V (input voltage must be higher than the output voltage above 1.5V. Could not boost)
• Output Voltage: DC voltage from 1.25V to 35V continuously adjustable, high efficiency (92%) of the maximum output current of 3A.
• Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
• The measured 12V input, 5V output current is 1A load regulation of less than 1%

PartNumber: DC037-LM2596-NO-LED

Details: This is high performance DC to DC Step Down Adjustable Power Supply Module. Based on Newly developed LM2596S Wide range Switching Regulator Specifcation: 1. IN + input positive-IN-input negative 2. The OUT + output the positive OUT-output negative 3. Input voltage range: DC 3.2V to 40V (input voltage must be higher than the output voltage above 1.5V. Could not boost) 4. Output voltage range: DC voltage from 1.25V to 35V continuously adjustable, high efficiency (92%) of the maximum output current of 3A 5. Conversion efficiency: 92% (the highest) 6. Output ripple: 7. Switching frequency: 65KHz 8. Operating Temperature: -45 to +85 deg C 9. Size: 43mm * 21mm * 14mm (L * W * H) 10. Note: This is a step-down module, the input voltage must higher than the output voltage 11. Note: This modules do not use LED power indicator to improve efficiency and fewer potential failure components, suitable for high-end industrial use

UPC: 679043314964

EAN: 0679043314964

Model: DC037-LM2596-NO-LED

Item Condition: New
