Description
Brand: CentIoT
Features:
- Maximum discharge current: 1.8A; Standard charging current/voltage: 1.0A/5.0V
- Output voltage (no load): 5.1V ± 0.1V
- Cut-off voltage of fully charging the Li-ion battery: 4.18V - 4.2V

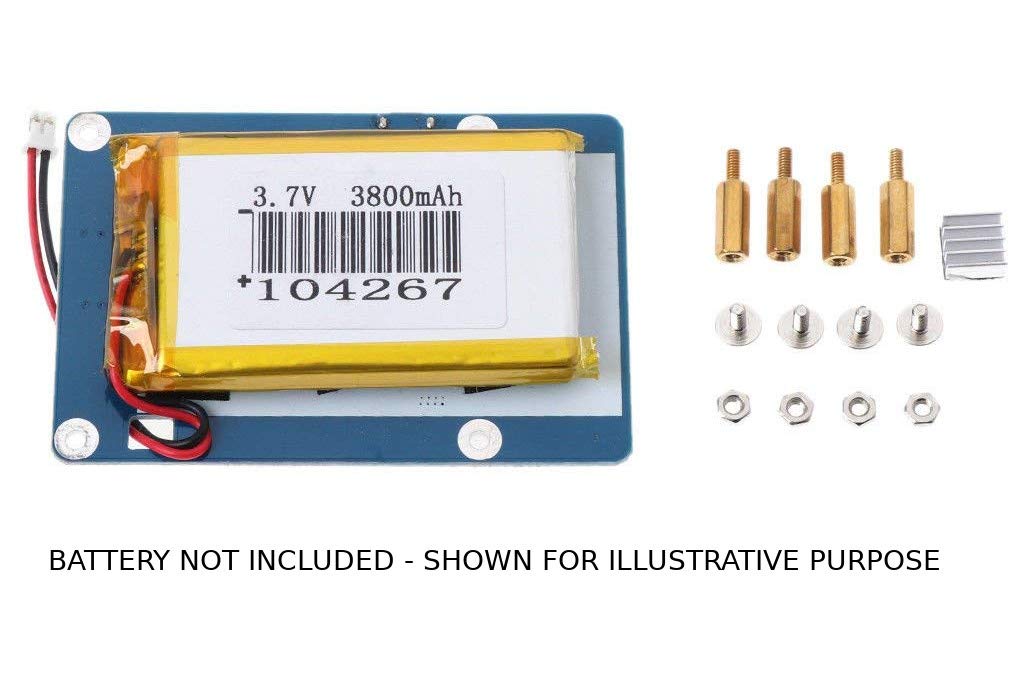

- Package includes fastening standoffs, screws and nut, so you can stack the Raspberry Pi board on the module

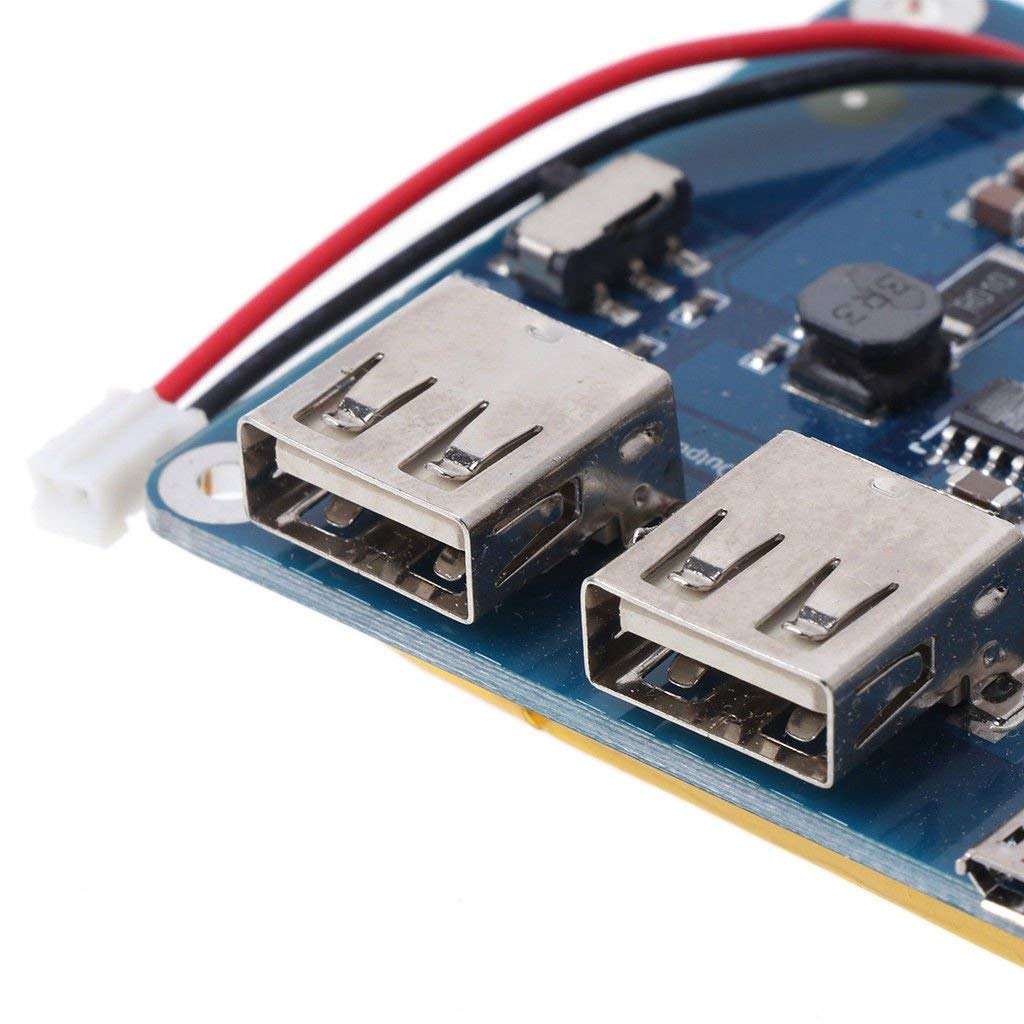

- Double USB outputs, one for the Raspberry Pi, the other for the embedded LCD screen
PartNumber: BS005-1S-3800mAh-1.8A-USB

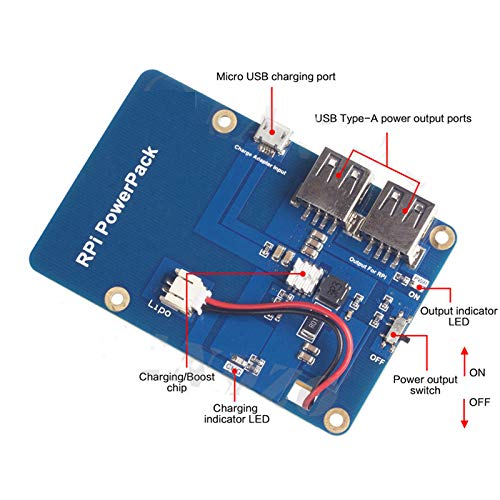

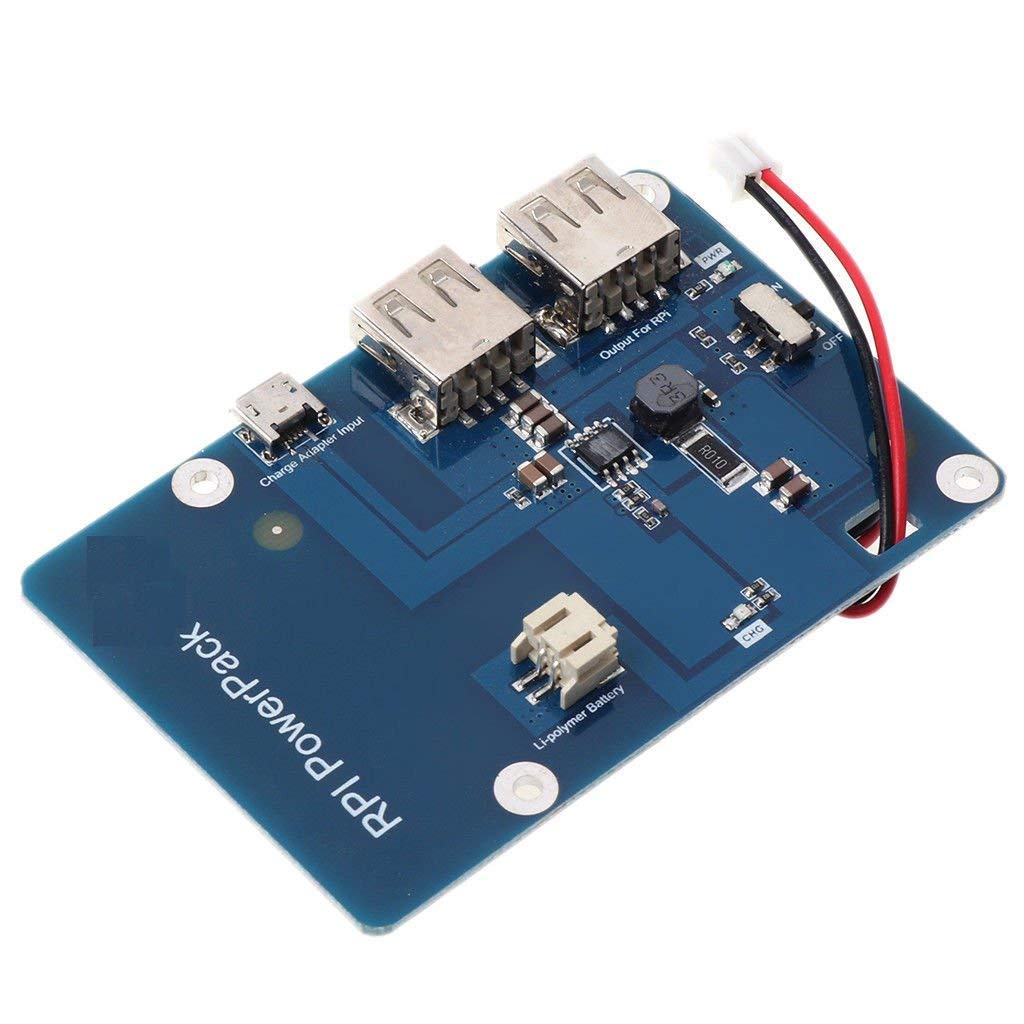

Details: The power module is designed for the Raspberry Pi 3 Model B specially, allowing the master board to work offline for up to 9 hours. It's not only the for Raspberry Pi; this board has 2 USB type-A ports - one supplies power for the Raspberry Pi and the other for the embedded LCD screen. The module integrates a Li-ion battery charger IC, a boost management chip. And it is developed in strict accordance with the size of the international Raspberry Pi expansion board HAT, using only simple copper standoffs to install multi-layer Raspberry Pi boards.
EAN: 4604046163352
Model: BS005-1S-3800mAh-1.8A-USB
Item Condition: New
