Description
Brand: CentIoT
Features:
- Suitable for 6, 7 and 13 string lithium iron phosphate lifepo4 battery series combination; Module Output Voltage: 24V @6S; 36V @ 7S 48V @ 13S; Over Discharge Protection Current: 40A; Charging Current: 18A; Charging voltage: 24V @ 6S/7S; 36V to 48V @ 13S
- Over-Charging Voltage: 4.25V; OverCharge Recovery Voltage: 4.19V; Overcharge Voltage Protection Delay: 1000ms
- Over Discharge Voltage: 2.8V; Over-discharge recovery voltage: 3V; Over-discharge voltage protection delay: 140ms
- Over-dishcarge protection current: 60A; Split Discharge Current (continuous): 26A; Same Port Discharge Current (Continuous): 18A; Overcurrent protection recovery: Disconnect load release
- With Short circuit protection Overcharge protection Over-discharge protection Overcurrent protection, Remove protection condition automatic recovery, without activation
PartNumber: BM100-6S7S13S-25A-LIFEPO4
Release Date: 13-06-2019
Details:
A battery management system (BMS) is any electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating secondary data, reporting that data, protecting the battery, controlling its environment, and balancing it.

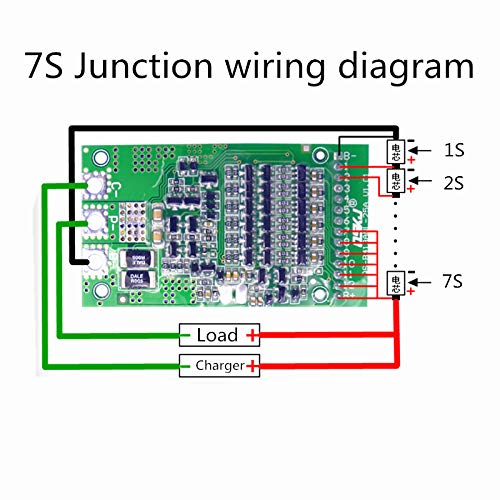

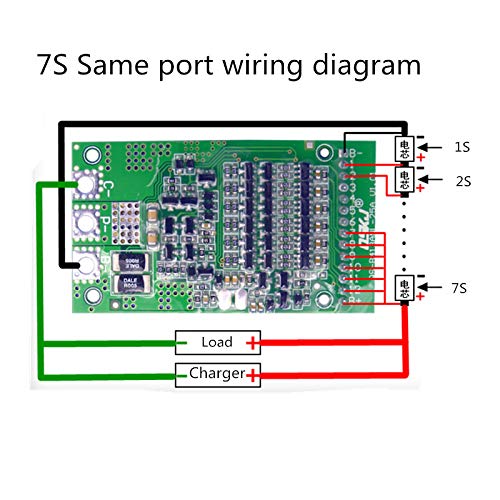

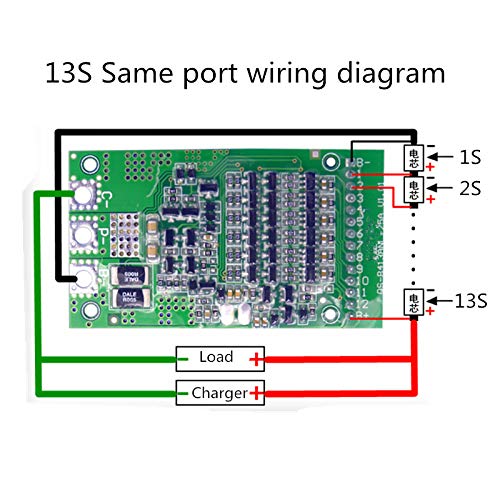

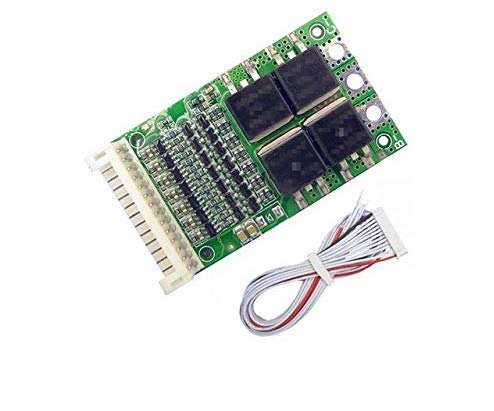

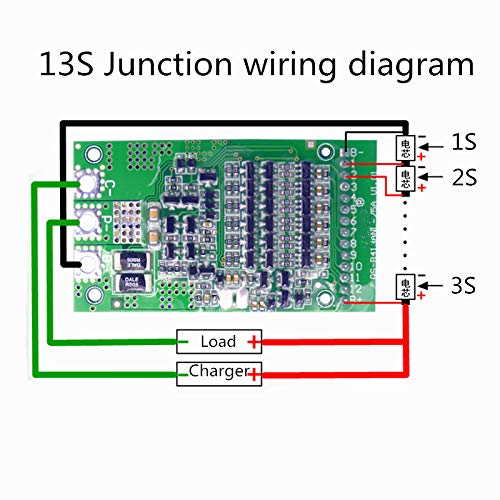

This protection board adopts mature protection circuit, original special IC, 80A high current ultra low internal resistance MOS (single MOS internal resistance as low as 6.5mΩ), and has various stable protection and discharge protection functions. Strong compatibility: The protection board supports both the same port and split port. Supports 6-13 string lithium iron phosphate batteries. (Note: The lithium iron phosphate board cannot be used for lithium iron or polymer batteries) Default delivery: 13S (requires other strings only need to change the wiring method) Small volume and large current can be used in high current applications such as power tools, electric vehicles, and UPS. NOTE: This module is only suitable for 3.2V lifepo4 or iron phosphate batteries, do not use it with lithium ion or lithium polymer batteriesEAN: 4604046158747
Model: BM100-6S7S13S-25A-LIFEPO4
Binding: Electronics
Item Condition: New
