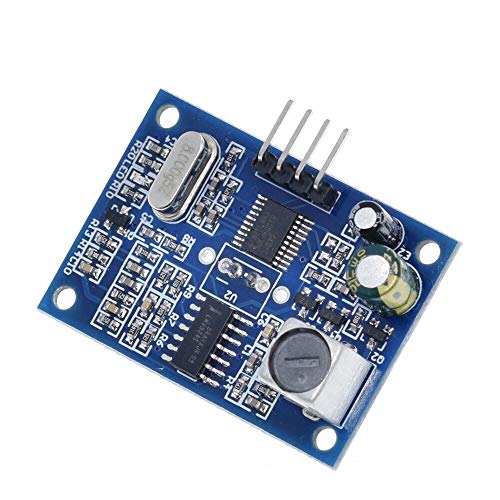

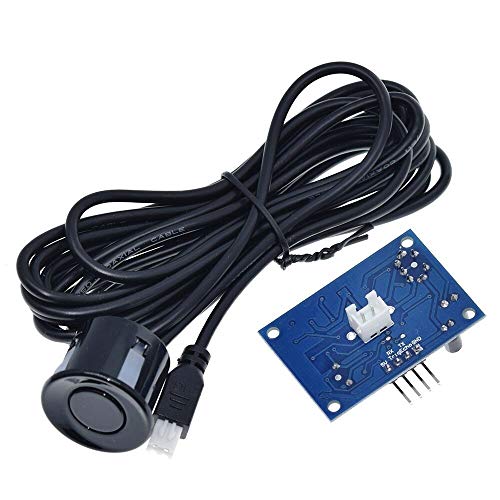

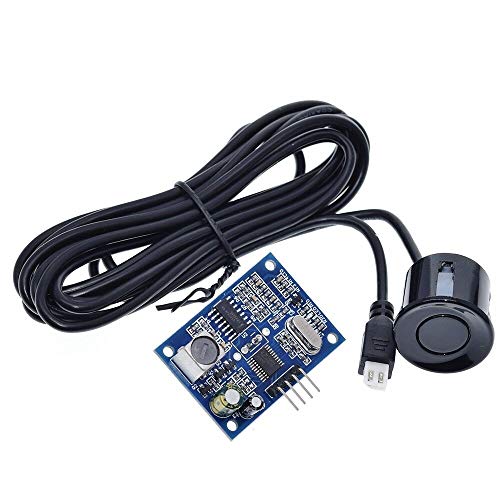

CentIoT - JSN-SR04T 2.5M Waterproof Reversing Radar Sensor - Ultrasonic Range Module - Distance Measuring Transducer

Brand: CentIoT

Features:

• Operating voltage: 5V; Operating current: 30 mA; Quiescent current: 5mA
• Frequency: 40 kHz; Cable Length: 2.5M (meters)
• Measuring range: 25-450 cm; Resolution: 2mm; Measuring angle: 45-75 degrees

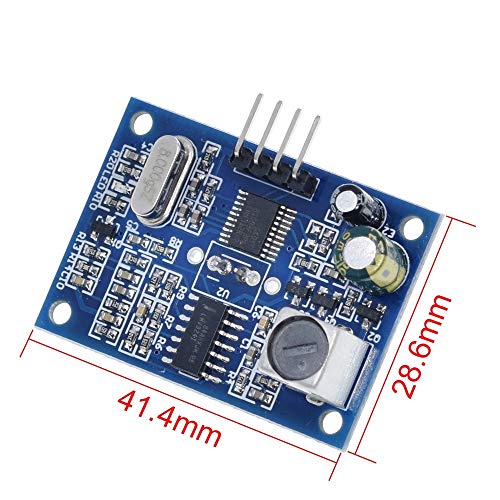

• Sensor dimensions: 23.5 x 20 mm, 2.5 m long cable; PCB dimensions: 41 x 28.5 mm: Mounting hole: 18 mm
• Detection distance / Measuring range: 2cm-450cm.

PartNumber: SE173-JSN-SR04T

Release Date: 13-10-2019

Details: The JSN-SR04T is an easy to use waterproof ultrasonic distance sensor with a range of 25 to 450 cm. If you are planning to build a water level measuring system or if you need to take other distance measurements outside, then this is the sensor you need! In this article I have included a wiring diagram and example codes so you can start experimenting with your sensor. After each example, I break down and explain how the code works, so you should have no problems modifying it to suit your needs. First we will look at an example that doesn’t use an Arduin library. Next I will cover the easy to use NewPing library that has some nice built in features. Features: 1. small size, easy to use; 2. low voltage, low power consumption; 3. high accuracy; 4. strong anti-jamming; 5. integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions. Application: 1. Horizontal distance; 2. obstacle avoidance, automatic control; 3. the object approaches, there is a perceived 4. traffic control; 5. security, industrial control; 6. artificial intelligence, and research

UPC: 679043314995

EAN: 0679043314995

Model: SE173-JSN-SR04T

Binding: Electronics

Item Condition: New
