Description
Brand: CentIoT
Features:
- JTAG/SWD Debugger Programmer with Micro USB Interface
- Onboard self-recovery fuse, prevent any damage from short circuit 3.3V output, make it easy to debug/program the code
- Universal Micro USB interface Protected by heat-shrink tube
- Unique ID, supports multi devices to work together at the same time
- Supported Software Keil MDK-ARM IAR EWARM J-Flash ARM CoIDE mikroC PRO for ARM nRFgo Studio (Version 1.15 OR before)
PartNumber: 11156

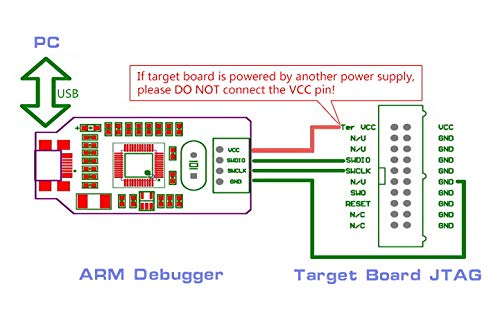

Details: ARM Debugger is a debugger and programmer which supports the most popular ARM core MCUs including : ARM7/9/11, Cortex-M0/M3/M4, etc. Functionality and Performance Debugging Supports full-speed running, single step, breakpoints and so on. Check IO status, variable, etc. Quick response through the USB2.0 interface Programming Programs FLASH ROM, EEPROM, AFR, etc. High speed SWD programming through the USB2.0 interface Supported MCUs All the MCUs with SWD interface of the following cores : ARM7, ARM9, ARM11, Cortex-M0, Cortex-M3, Cortex-M4. Caution: Please note that the VCC and GND should be connected correctly to avoid any damage.
UPC: 046382370058
EAN: 0046382370058
Model: 11156
Item Condition: New
